S2055K, S2055N, S2055R

Table of contents:
Info of S2055K
Info of S2055N
Info of S2055R

S2055K, S2055N, S2055R Selling Leads, Datasheet

MFG:Littelfuse / Teccor Brand Thyristors Category:Discrete Semiconductor Products Package Cooled:TO-3P D/C:08+/09+

S2055K, S2055N, S2055R Datasheet download

Five Points

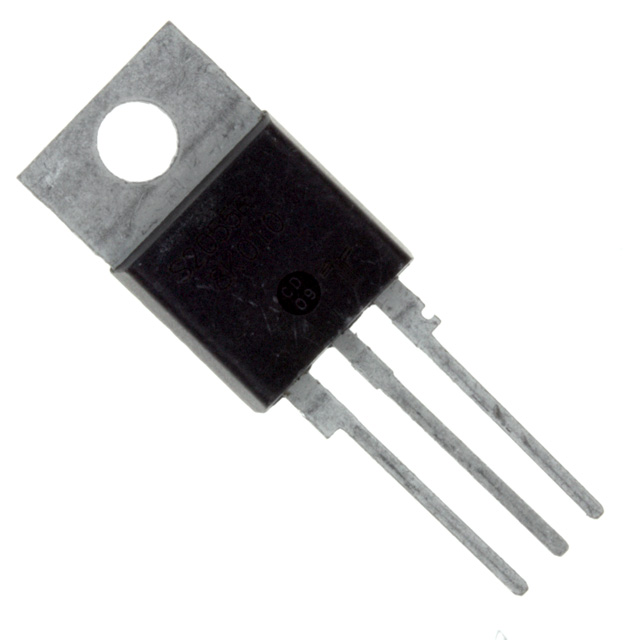

Part Number: S2055R

Category: Discrete Semiconductor Products

MFG: Littelfuse / Teccor Brand Thyristors

Package Cooled: TO-3P

D/C: 08+/09+

Description: SCR NON-SENS 200V 55A TO-220

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

S2055N General Description

·With TO-3P(H)IS package
·High voltage,high speed
·Low collector saturation voltage
·Built-in damper diode

S2055N Maximum Ratings

SYMBOL	PARAMETER	CONDITIONS	Rating	Unit
V_CBO	Collector-base voltage	Open emitter	1500	V
V_CEO	Collector-emitter voltage	Open base	700	V
V_EBO	Emitter-base voltage	Open collector	5	V
I_C	Collector current		8	A
I_CM	Collector current-peak		15	A
I_B	Base current		4	A
P_C	Collector power dissipation	TC=25	50	W
T_j	Junction temperature		150
T_stg	Storage temperature		-55~150

S2055N Typical Application

·Color TV horizontal output applications
·Color TV switching regulator applications

S2055R Parameters

Technical/Catalog Information	S2055R
Vendor	Littelfuse / Teccor Brand Thyristors
Category	Discrete Semiconductor Products
SCR Type	Standard Recovery
Voltage - Off State	200V
Current - On State (It (RMS) (Max)	55A
Current - On State (It (AV)) (Max)	35A
Current - Gate Trigger (Igt) (Max)	40mA
Current - Hold (Ih) (Max)	60mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	550A, 650A
Voltage - Gate Trigger (Vgt) (Max)	1.5V
Mounting Type	Through Hole
Package / Case	TO-220
Packaging	Bulk
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	S2055R S2055R
