MFG:Diodes Inc Category:Discrete Semiconductor Products Package Cooled:TO-220AB D/C:08+/09+
SBR3060CT, SBR3060CTB, SBR3060CTFP Datasheet download
Category: Discrete Semiconductor Products
MFG: Diodes Inc
Package Cooled: TO-220AB
D/C: 08+/09+
Description: DIODE SBR 30A 60V TO220-3
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: SBR0120S3
File Size: 62284 KB
Manufacturer: ETC
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SBR0120S3
File Size: 62284 KB
Manufacturer: ETC
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SBR0120S3
File Size: 62284 KB
Manufacturer: ETC
Download : Click here to Download
| Technical/Catalog Information | SBR3060CT |
| Vendor | Diodes Inc |
| Category | Discrete Semiconductor Products |
| Diode Type | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Voltage - DC Reverse (Vr) (Max) | 60V |
| Current - Average Rectified (Io) (per Diode) | 30A |
| Voltage - Forward (Vf) (Max) @ If | 700mV @ 15A |
| Current - Reverse Leakage @ Vr | 500A @ 60V |
| Reverse Recovery Time (trr) | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Through Hole, Radial |
| Package / Case | TO-220-3 (Straight Leads) |
| Packaging | Tube |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SBR3060CT SBR3060CT |
| Product Type | SBR |
| Part Number | SBR3060CT |
| Max Average Rectified Current IO (A) | 30 |
| @ Terminal Temperature TT (oC) | 110 |
| Peak Repetitive Reverse Voltage VRRM (V) | 60 |
| Peak Forward Surge Current IFSM (A) | 200 |
| Forward Voltage Drop VF (V) | 0.7 |
| @ IF (A) | 15 |
| Max Reverse Current IR (mA) | 0.5 |
| @ VR (V) | 60 |
| Total Capacitance CT (pF) | - |

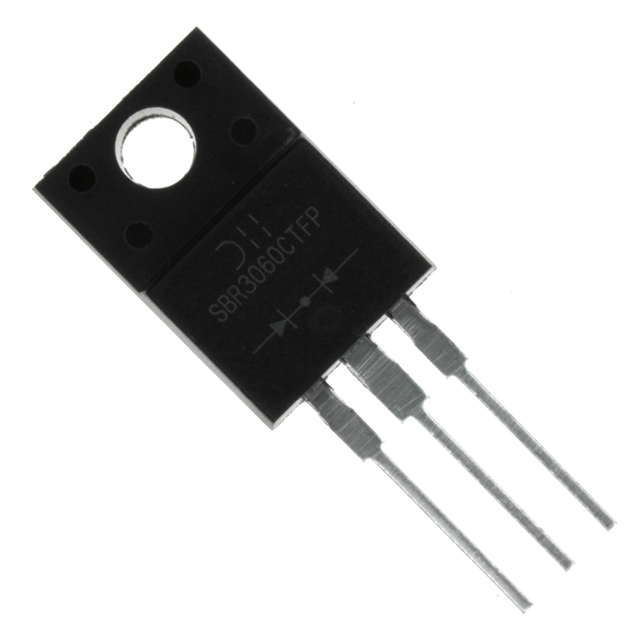

| Technical/Catalog Information | SBR3060CTFP |
| Vendor | Diodes Inc |
| Category | Discrete Semiconductor Products |
| Diode Type | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Voltage - DC Reverse (Vr) (Max) | 60V |
| Current - Average Rectified (Io) (per Diode) | 30A |
| Voltage - Forward (Vf) (Max) @ If | 700mV @ 15A |
| Current - Reverse Leakage @ Vr | 500A @ 60V |
| Reverse Recovery Time (trr) | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Through Hole, Radial |
| Package / Case | TO-220-3 (Straight Leads, Isolated), ITO-220AB |
| Packaging | Tube |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SBR3060CTFP SBR3060CTFP SBR3060CTFPDI ND SBR3060CTFPDIND SBR3060CTFPDI |
| Product Type | SBR |
| Part Number | SBR3060CTFP |
| Max Average Rectified Current IO (A) | 30 |
| @ Terminal Temperature TT (oC) | 110 |
| Peak Repetitive Reverse Voltage VRRM (V) | 60 |
| Peak Forward Surge Current IFSM (A) | 200 |
| Forward Voltage Drop VF (V) | 0.7 |
| @ IF (A) | 30 |
| Max Reverse Current IR (mA) | 0.5 |
| @ VR (V) | 60 |
| Total Capacitance CT (pF) | - |
