SCXFA, SCXGK, SCXL004DN

Table of contents:
Info of SCXFA
Info of SCXGK
Info of SCXL004DN

SCXFA, SCXGK, SCXL004DN Selling Leads, Datasheet

MFG:Honeywell Sensing and Control/Sensym Category:Sensors, Transducers Package Cooled:SOT5 D/C:2007+

SCXFA, SCXGK, SCXL004DN Datasheet download

Five Points

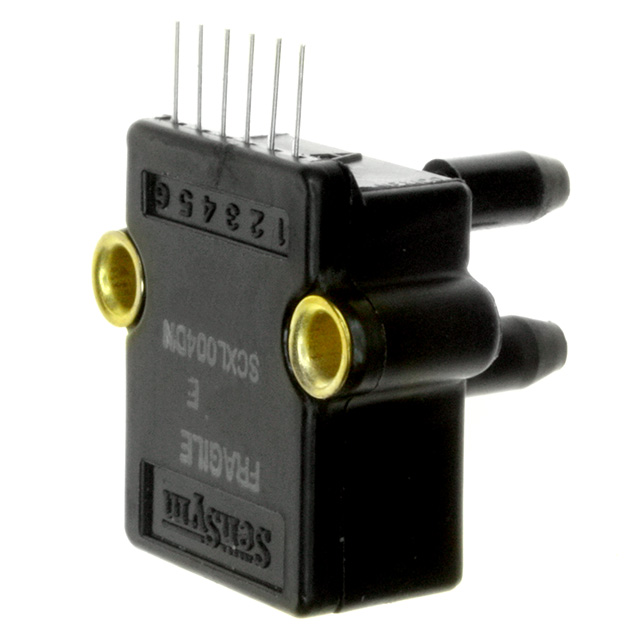

Part Number: SCXL004DN

Category: Sensors, Transducers

MFG: Honeywell Sensing and Control/Sensym

Package Cooled: SOT5

D/C: 2007+

Description: SENSOR TEMP COMP 4"H2O

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

SCXL004DN Parameters

Technical/Catalog Information	SCXL004DN
Vendor	Honeywell Sensing and Control/Sensym
Category	Sensors, Transducers
Operating Pressure	0 ~ 4" H2O
Voltage - Rated	20VDC
Output	40mV
Package / Case	SIP
Pressure Type	WC
Features	Precision Compensated
Interface	-
Pressure Port	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SCXL004DN SCXL004DN 287 1027 ND 2871027ND 287-1027

SCXL004DN General Description

The SCXL series sensors provide a very cost effective solution for pressure applications that require high accuracy over very low operating pressure ranges.These internally calibrated and temperature compensated sensors were specifically designed to provide an accurate and stable output over a 0 to 50temperature range. This series is intended for use with non-corrosive, non-ionic working fluids such as air and dry gases. The output of the bridge is ratiometric to the supply voltage and operation from any D.C. supply voltage up to +18V is acceptable.

SCXL004DN Maximum Ratings

Supply Voltage V_S                                                                                       +18 V_DCCommon-mode Pressure                                                                              150 In. H₂O
Lead Temperature (Soldering, 4 seconds)                                                    250
Proof Pressure                                                                                              10 In. H₂O
Burst Pressure                                                                                              5 psi

SCXL004DN Features

0 - 4 In. H₂O
Very Low Pressure Resolution
Precision Temperature Compensation
Low Noise
Calibrated Zero and Span
High Impedance for Low Power Applications

SCXL004DN Typical Application

Air Flow
Respirators
HVAC
