SN74AHC86D, SN74AHC86DBR, SN74AHC86DBRG4

Table of contents:
Info of SN74AHC86D
Info of SN74AHC86DBR
Info of SN74AHC86DBRG4

SN74AHC86D, SN74AHC86DBR, SN74AHC86DBRG4 Selling Leads, Datasheet

MFG:Texas Instruments Category:Integrated Circuits (ICs) Package Cooled:SOIC-14 D/C:08+

SN74AHC86D, SN74AHC86DBR, SN74AHC86DBRG4 Datasheet download

Five Points

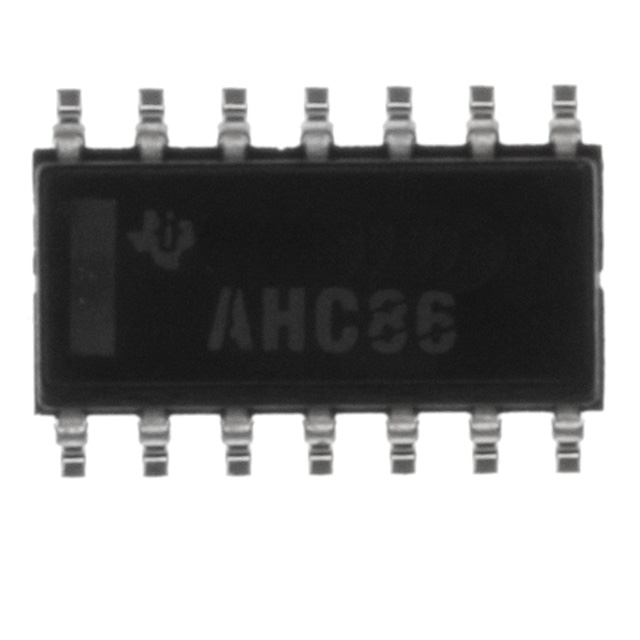

Part Number: SN74AHC86D

Category: Integrated Circuits (ICs)

MFG: Texas Instruments

Package Cooled: SOIC-14

D/C: 08+

Description: IC GATE EXCL-OR QUAD 2IN 14-SSOP

Price Break

1
25
100
250
500
1000
5000

Unit Price

.46000
.36760
.25200
.18900
.14700
.12600
.11200

Extended Price

0.46
9.19
25.20
47.25
73.50
126.00
560.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

SN74AHC86D Parameters

Technical/Catalog Information	SN74AHC86D
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Number of Circuits	4 - Quad
Package / Case	14-SOIC (3.9mm Width), 14-SOL
Logic Type	XOR (Exclusive OR)
Packaging	Tube
Mounting Type	Surface Mount
Number of Inputs	2
Current - Output High, Low	8mA, 8mA
Supply Voltage	2 V ~ 5.5 V
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	2 V ~ 5.5 V
Drawing Number	296; 4040047-3; D; 14
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SN74AHC86D SN74AHC86D 296 4625 5 ND 29646255ND 296-4625-5

SN74AHC86DBR Parameters

Technical/Catalog Information	SN74AHC86DBR
Vendor	Texas Instruments (VA)
Category	Integrated Circuits (ICs)
Number of Circuits	4 - Quad
Package / Case	14-SSOP
Logic Type	XOR (Exclusive OR)
Packaging	Digi-Reel?
Mounting Type	Surface Mount
Number of Inputs	2
Current - Output High, Low	8mA, 8mA
Supply Voltage	2 V ~ 5.5 V
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	2 V ~ 5.5 V
Drawing Number	296; 4040065; DB; 14, 16, 20, 24, 28, 30, 38
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SN74AHC86DBR SN74AHC86DBR 296 4626 6 ND 29646266ND 296-4626-6

SN74AHC86DBRG4 Parameters

Technical/Catalog Information	SN74AHC86DBRG4
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Number of Circuits	4 - Quad
Package / Case	14-SSOP
Logic Type	XOR (Exclusive OR)
Packaging	Tape & Reel (TR)
Mounting Type	Surface Mount
Number of Inputs	2
Current - Output High, Low	8mA, 8mA
Supply Voltage	2 V ~ 5.5 V
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	2 V ~ 5.5 V
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SN74AHC86DBRG4 SN74AHC86DBRG4
