SN74LVC2G38DCUR, SN74LVC2G3DRLR, SN74LVC2G53

Table of contents:
Info of SN74LVC2G38DCUR
Info of SN74LVC2G3DRLR
Info of SN74LVC2G53

SN74LVC2G38DCUR, SN74LVC2G3DRLR, SN74LVC2G53 Selling Leads, Datasheet

MFG:Texas Instruments (VA) Category:Integrated Circuits (ICs) Package Cooled:US8?(DCU) | 8 D/C:08.09+

SN74LVC2G38DCUR, SN74LVC2G3DRLR, SN74LVC2G53 Datasheet download

Five Points

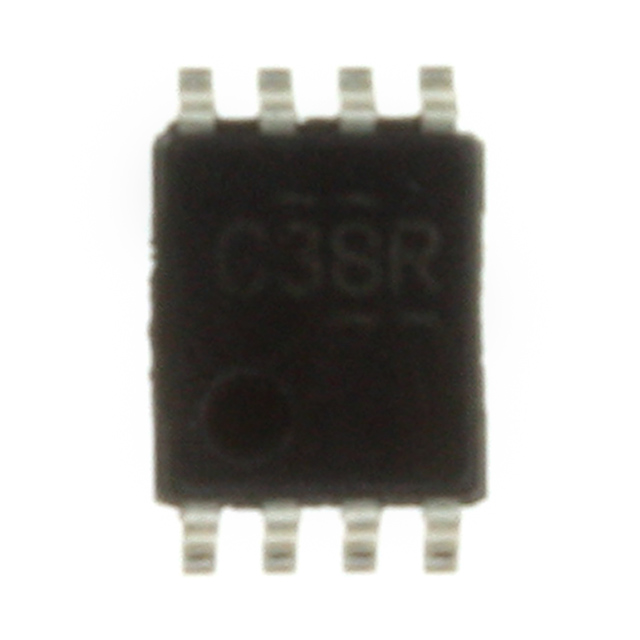

Part Number: SN74LVC2G38DCUR

Category: Integrated Circuits (ICs)

MFG: Texas Instruments (VA)

Package Cooled: US8?(DCU) | 8

D/C: 08.09+

Description: IC DUAL 2-IN NAND GATE US8

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

SN74LVC2G38DCUR Parameters

Technical/Catalog Information	SN74LVC2G38DCUR
Vendor	Texas Instruments (VA)
Category	Integrated Circuits (ICs)
Number of Circuits	2 - Dual
Package / Case	US8, 8-VSSOP
Logic Type	NAND Gate
Packaging	Digi-Reel?
Mounting Type	Surface Mount
Number of Inputs	2
Current - Output High, Low	32mA, 32mA
Supply Voltage	1.65 V ~ 5.5 V
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	1.65 V ~ 5.5 V
Drawing Number	296; 4200503; DCU; 8
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SN74LVC2G38DCUR SN74LVC2G38DCUR 296 18808 6 ND 296188086ND 296-18808-6

SN74LVC2G53 Maximum Ratings

Supply voltage range, V_CC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5 V to 6.5 V
Input voltage range, V_I(see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5 V to 6.5 V
Voltage range applied to any output in the high-impedance or power-off state, V_O
(see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . -0.5 V to 6.5 V
Voltage range applied to any output in the high or low state, V_O
(see Notes 1 and 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5 V to V _CC + 0.5 V
Input clamp current, I_IK (V_I< 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .. . -50 mA
Output clamp current, I_OK (V_O < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . -50 mA
Continuous output current, I_O. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
Continuous current through V _CCor GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ± 100 mA
Package thermal impedance, JA (see Note 3): DCT package . . . . . . . . . . . . . . . . .. 220°C/W
DCU package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227°C/W
YEP/YZP package . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . .. . 102°C/W
Storage temperature range, T_stg-65. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . °C to 150 °C

SN74LVC2G53 Features

Available in the Texas Instruments NanoStar(TM) and NanoFree(TM) Packages
Supports 5-V V_CC Operation
Inputs Accept Voltages to 5.5 V
Max t_pdof 4.9 ns at 3.3 V
Low Power Consumption, 10-A Max I_CC
±24-mA Output Drive at 3.3 V
I_off Supports Partial-Power-Down Mode
Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)

SN74LVC2G53 Connection Diagram
