SP0502AAH, SP0502AAHTG, SP0502BAHTG

Table of contents:
Info of SP0502AAH
Info of SP0502AAHTG
Info of SP0502BAHTG

SP0502AAH, SP0502AAHTG, SP0502BAHTG Selling Leads, Datasheet

MFG:Littelfuse Inc Category:Circuit Protection Package Cooled:SOT-143-4 D/C:2005

SP0502AAH, SP0502AAHTG, SP0502BAHTG Datasheet download

Five Points

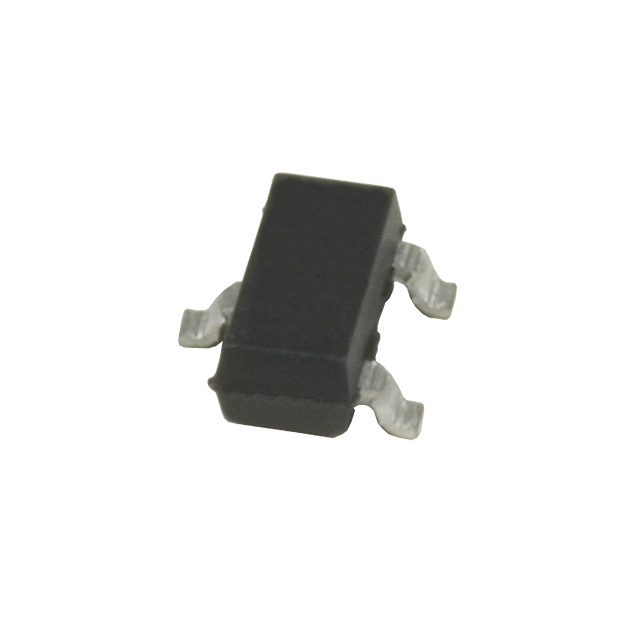

Part Number: SP0502BAHTG

Category: Circuit Protection

MFG: Littelfuse Inc

Package Cooled: SOT-143-4

D/C: 2005

Description: TVS AVAL DIODE ARRAY 2 CH SOT23

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

SP0502AAH Features

• A low capacitance 2, 6 and 18 channel array of rail clamp current steering diodes in small surface mount packages
• ESD Protection Capability (SP0502 and SP0506)
- IEC 61000-4-2, Direct Discharge . . . . . . . . . . . . . . . . . . 8kV (Level 4)
- MIL STD 3015.7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15kV
• ESD Protection Capability (SP0518)
- IEC 61000-4-2, Direct Discharge . . . . . . . . . . . . . . . . . 15kV (Level 4)
- MIL STD 3015.7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15kV
• Input Protection for Applications Up to 5VDC
• Fast Response Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .< 1ns
• Low Input Capacitance. . . . . . . . . . . . . . . . . . . . . . . . . . .3-7pF Typical
• Low Clamp Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . .Vrail + 13V Max
• Low Input Leakage. . . . . . . . ... . . . . . . . .. . . . . . . . . . . . . . .100nA typ
• Operating Temperature Range . . . . . . . . . . . . . . . . . - 20°C to +85°C

SP0502AAH Typical Application

• Cell phone hand sets
• Personal Digital Assistants (PDA)
• Portable handheld equipment (Laptop, Palmtop computers)
• Computer port, keyboard (USB1.1)

SP0502BAHTG Parameters

Technical/Catalog Information	SP0502BAHTG
Vendor	Littelfuse Inc
Category	Circuit Protection
Package / Case	SOT-23-3
Packaging	Tape & Reel (TR)
Polarization	2 Channel Array - Unidirectional
Power (Watts)	0.2W
Voltage - Reverse Standoff (Typ)	5.5V
Voltage - Breakdown	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SP0502BAHTG SP0502BAHTG F2714TR ND F2714TRND F2714TR
