SP8K1TB, SP8K1-TB, SP8K2

Table of contents:
Info of SP8K1TB
Info of SP8K1-TB
Info of SP8K2

SP8K1TB, SP8K1-TB, SP8K2 Selling Leads, Datasheet

MFG:Rohm Semiconductor(VA) Category:Discrete Semiconductor Products Package Cooled:SOP8 D/C:03+

SP8K1TB, SP8K1-TB, SP8K2 Datasheet download

Five Points

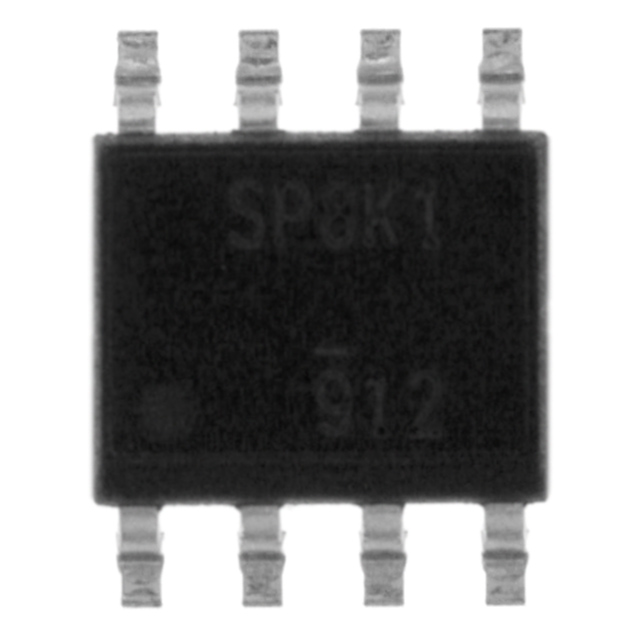

Part Number: SP8K1TB

Category: Discrete Semiconductor Products

MFG: Rohm Semiconductor(VA)

Package Cooled: SOP8

D/C: 03+

Description: MOSFET 2N-CH 30V 5A 8-SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

SP8K1TB Parameters

Technical/Catalog Information	SP8K1TB
Vendor	Rohm Semiconductor(VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	2 N-Channel (Dual)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	5A
Rds On (Max) @ Id, Vgs	51 mOhm @ 5A, 10V
Input Capacitance (Ciss) @ Vds	230pF @ 10V
Power - Max	2W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	5.5nC @ 5V
Package / Case	8-SOIC (3.9mm Width)
FET Feature	Logic Level Gate
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SP8K1TB SP8K1TB SP8K1TBDKR ND SP8K1TBDKRND SP8K1TBDKR

SP8K2 Maximum Ratings

Parameter		Symbol	Limits	Unit
Drain-source voltage		VDSS	30	V
Gate-source voltage		VGSS	±20	V
Drain current	Continuous	ID	±6	A
Drain current	Pulsed	IDP	±24	A *1
Source current (Body diode)	Continuous	IS	1.6	A
Source current (Body diode)	Pulsed	ISP	6.4	A *1
Total power dissipation		PD	2.0	W *2
Channel temperature		Tch	150	°C
Range of Storage temperat		Tstg	−55 to +150	°C
∗1 Pw10s, Duty cycle1% ∗2 Mounted on a ceramic board

SP8K2 Features

1) Low on-resistance.
2) Built-in G-S Protection Diode.
3) Small and Surface Mount Package (SOP8).

SP8K2 Typical Application

Power switching, DC / DC converter.
