MFG:Rohm Semiconductor Category:Discrete Semiconductor Products Package Cooled:SOP-8 D/C:09+

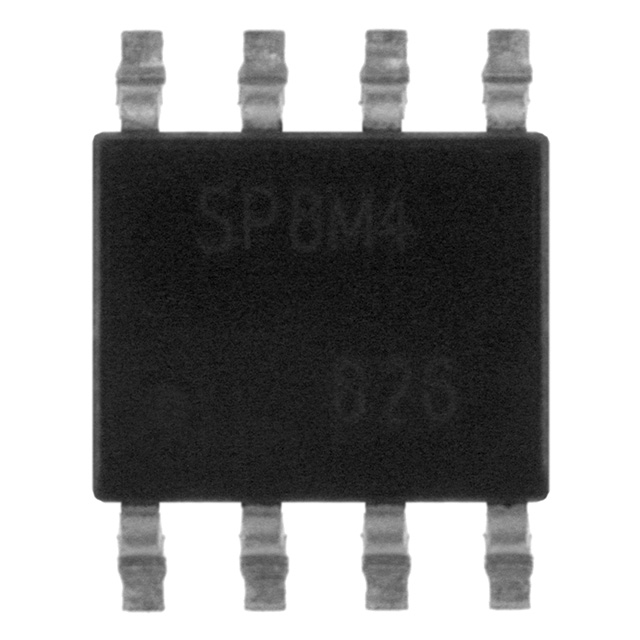

SP8M4TB, SP8M6, SP8M8 Datasheet download
Category: Discrete Semiconductor Products
MFG: Rohm Semiconductor
Package Cooled: SOP-8
D/C: 09+
Description: MOSFET N+P 30V 9A/7A 8-SOIC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: SP800L
File Size: 201148 KB
Manufacturer: SIPEX [Sipex Corporation]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SP8M6
File Size: 107093 KB
Manufacturer: ROHM [Rohm]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SP8M8
File Size: 78031 KB
Manufacturer: ROHM [Rohm]
Download : Click here to Download
| Technical/Catalog Information | SP8M4TB |
| Vendor | Rohm Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N and P-Channel |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25° C | 9A, 7A |
| Rds On (Max) @ Id, Vgs | 18 mOhm @ 9A, 10V |
| Input Capacitance (Ciss) @ Vds | 1190pF @ 10V |
| Power - Max | 2W |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 15nC @ 5V |
| Package / Case | 8-SOIC (3.9mm Width) |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SP8M4TB SP8M4TB SP8M4TBTR ND SP8M4TBTRND SP8M4TBTR |
| Parameter | Symbol | Limits | Unit | ||
| Nchannel | Pchannel | ||||
| Drain-source voltage | VDSS | 30 | -30 | V | |
| Gate-source voltage | VGSS | 20 | ±20 | V | |
| Drain current | Continuous | ID | ±5 | ±3.5 | A |
| Pulsed | IDP | ±20 | ±14 | A *1 | |
| Source current (Body diode) |
Continuous | IS | 1.6 | -1.6 | A |
| Pulsed | ISP | 20 | -14 | A *1 | |
| Total power dissipation | PD | 2.0 | W *2 | ||
| Channel temperature | Tch | 150 | °C | ||
| Parameter | Symbol | Limits | Unit | ||
| Nchannel | Pchannel | ||||
| Drain-source voltage | VDSS | 30 | -30 | V | |
| Gate-source voltage | VGSS | 20 | ±20 | V | |
| Drain current | Continuous | ID | ±6.0 | ±4.5 | A |
| Pulsed | IDP | ±24 | ±18 | A *1 | |
| Source current (Body diode) |
Continuous | IS | 1.6 | -1.6 | A |
| Pulsed | ISP | 20 | -18 | A *1 | |
| Total power dissipation | PD | 2.0 | W *2 | ||
| Channel temperature | Tch | 150 | °C | ||
