MFG:STMicroelectronics Category:Integrated Circuits (ICs) Package Cooled:ZIP D/C:00+
STA501A, STA50213TR, STA505 Datasheet download
Category: Integrated Circuits (ICs)
MFG: STMicroelectronics
Package Cooled: ZIP
D/C: 00+
Description: IC AMP AUDIO PWR 50W D POWERSO36
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: STA501A
File Size: 12896 KB
Manufacturer: SANKEN [Sanken electric]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: STA001
File Size: 237395 KB
Manufacturer: STMICROELECTRONICS [STMicroelectronics]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: STA505
File Size: 132679 KB
Manufacturer: STMICROELECTRONICS [STMicroelectronics]
Download : Click here to Download
| Technical/Catalog Information | STA501A |
| Vendor | STMicroelectronics |
| Category | Integrated Circuits (ICs) |
| Package / Case | - |
| Type | - |
| Output Type | - |
| Voltage - Supply | - |
| Packaging | - |
| Features | - |
| Max Output Power x Channels @ Load | - |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | STA501A STA501A |
| Symbol |
Ratings |
Unit |
| VDSS |
60 |
V |
| VGSS |
±10 |
V |
| ID |
±5 |
A |
| ID(pulse) |
±20 (PW100s, Du1%) |
A |
| PT |
4 (Ta=25°C) |
W
|
|
20 (Tc=25°C) |
W | |
| Tch |
150 |
|
| Tstg |
40 to +150 |

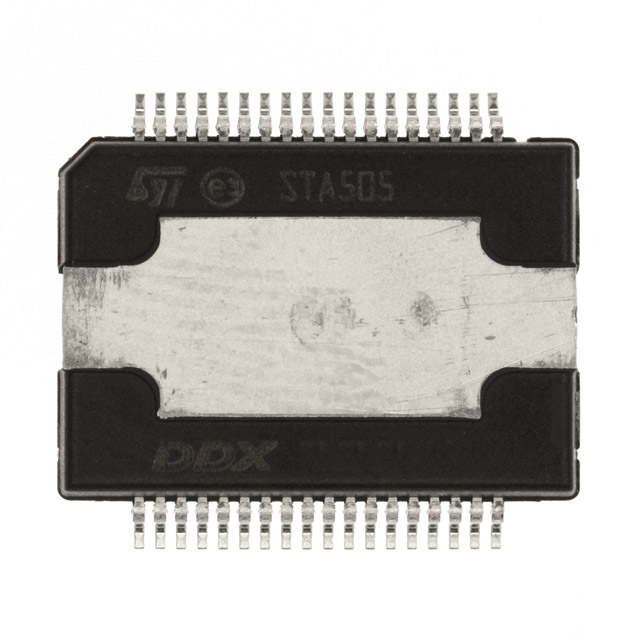

| Technical/Catalog Information | STA505 |
| Vendor | STMicroelectronics |
| Category | Integrated Circuits (ICs) |
| Package / Case | PowerSO-36 Exposed Top Pad |
| Type | Class D |
| Output Type | 1-Channel (Mono) or 2-Channel (Stereo) |
| Voltage - Supply | 10 V ~ 36 V |
| Packaging | Tube |
| Features | Thermal Shutdown Protection |
| Max Output Power x Channels @ Load | 50W x 2 @ 8 Ohm, 80W x 1 @ 8 Ohm |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | STA505 STA505 497 2142 ND 4972142ND 497-2142 |
STA505 is a monolithic quad half bridge stage in Multipower BCD Technology. The device can be used as dual bridge or reconfigured, by connecting CONFIG pin to Vdd pin, as single bridge with double current capability, and as half bridge (Binary mode) with half current capability.
The device is particularly designed to make the output stage of a stereo All-Digital High Efficiency (DDX™) amplifier capable to deliver 50 + 50W @ THD = 10% at Vcc 30V output power on 8W load and 80W @ THD = 10% at Vcc 36V on 8W load in single BTL configuration.
The input pins have threshold proportional to Ibias pin voltage.
| Symbol | Parameter |
Value |
Unit |
| VCE | DC Supply Voltage (Pin 4,7,12,15) |
40 |
V |
| Vmax | Maximum Voltage on pins (23 to 32) |
5.5 |
V |
| Top | Operating Temperature Range |
0 to 70 |
|
| Tstg, Tj | Storage and Junction Temperature |
-40 to 150 |
