TC1219ECH, TC1219ECHTR, TC1220

Table of contents:
Info of TC1219ECH
Info of TC1219ECHTR
Info of TC1220

TC1219ECH, TC1219ECHTR, TC1220 Selling Leads, Datasheet

MFG:Microchip Technology Category:Integrated Circuits (ICs) Package Cooled:NULL D/C:08+

TC1219ECH, TC1219ECHTR, TC1220 Datasheet download

Five Points

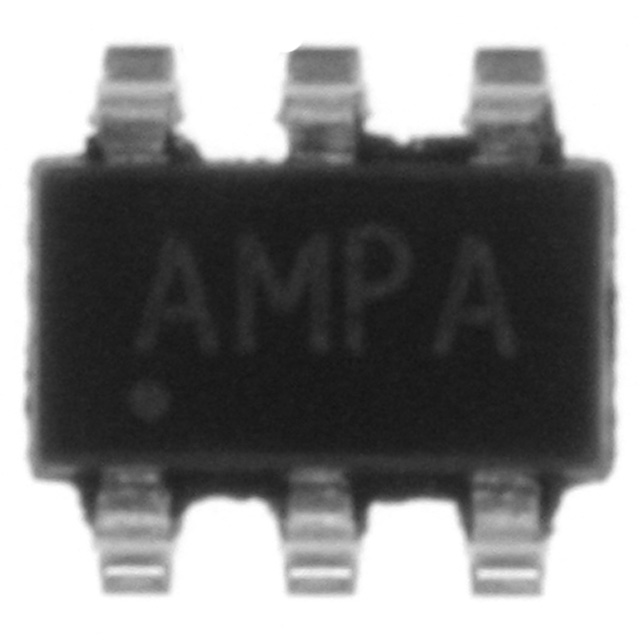

Part Number: TC1219ECHTR

Category: Integrated Circuits (ICs)

MFG: Microchip Technology

Package Cooled: NULL

D/C: 08+

Description: IC CHARGE PUMP CONV SD SOT23A-6

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

TC1219ECHTR Parameters

Technical/Catalog Information	TC1219ECHTR
Vendor	Microchip Technology
Category	Integrated Circuits (ICs)
Type	Switched Capacitor (Charge Pump), Doubler, Inverting
Number of Outputs	1
Voltage - Input	2.5 ~ 5.5 V
Voltage - Output	-1.5 ~ -5.5 V, ±5 ~ ±11 V
Current - Output	25mA
Power - Output	240mW
Package / Case	SOT-23A-6
Packaging	Tape & Reel (TR)
Internal Switch(s)	Yes
Synchronous	No
Rds (On)	-
Operating Temperature	-40°C ~ 85°C
Frequency - Switching	12kHz
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TC1219ECHTR TC1219ECHTR

TC1220 Parameters

TC1220 FeaturesCharge Pumps in 6-Pin
SOT-23A Package
>95% Voltage Conversion Efficiency
Voltage Inversion and/or Doubling
Operates from +2.5V to +5.5V
Up to 25 mA Output Current
Only Two External Capacitors Required
Low Power Consumption
Power-Saving Shutdown Mode

TC1220 General Description

The TC1219/1220 are CMOS "charge-pump" voltage converters in ultra-small 6-Pin SOT-23A packages. They invert and/or double an input voltage which can range from +2.5V to +5.5V. Conversion efficiency is typically >95%. Switching frequency is 12 KHz for the TC1219, 35 KHz for the TC1220. When the shutdown pin is held at a logic low, the device goes into a very low power mode of operation, consuming less than 1 µA of supply current. External component requirement is only two capacitors for standard voltage inverter applications. With a few additional components a positive doubler can also be built. All other circuitry, including control, oscillator, power MOSFETs are integrated on-chip. Typical supply currents are 60 µA (TC1219), 115 µA (TC1220). All devices are available in 6-pin SOT-23A surface mount packages.

TC1220 Maximum Ratings

Input Voltage (V_IN to GND)....................... +6.0V, -0.3V
Output Voltage (OUT to GND)...................-6.0V, +0.3V
Current at OUT Pin..............................................50mA
Short-Circuit Duration OUT to GND............Indefinite
Power Dissipation (T_A 70)
6-Pin SOT-23A .................................................240mW
Operating Temperature Range..............-40 to +85
Storage Temperature (Unbiased) .......-65 to +150

Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These
are stress ratings only and functional operation of the device at these or any other conditions above those indicated in the operation sections of the specifications is not implied. Exposure to Absolute Maximum Rating conditions for
extended periods may affect device reliability.

TC1220 Features

Charge Pumps in 6-Pin
SOT-23A Package
>95% Voltage Conversion Efficiency
Voltage Inversion and/or Doubling
Operates from +2.5V to +5.5V
Up to 25 mA Output Current
Only Two External Capacitors Required
Low Power Consumption
Power-Saving Shutdown Mode

TC1220 Typical Application

TC1219/20 Datasheet

TC1220 Connection Diagram
