MFG:Toshiba Category:Integrated Circuits (ICs) Package Cooled:SOP D/C:1000
TC74HC00AF-EL, TC74HC00AFN, TC74HC00AP Datasheet download
Category: Integrated Circuits (ICs)
MFG: Toshiba
Package Cooled: SOP
D/C: 1000
Description: IC GATE NAND QUAD 2INP 14-DIP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: TC70
File Size: 92092 KB
Manufacturer: TELCOM [TelCom Semiconductor, Inc]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: TC74HC00AFN
File Size: 238302 KB
Manufacturer: TOSHIBA [Toshiba Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: TC74HC00AP
File Size: 243076 KB
Manufacturer: TOSHIBA [Toshiba Semiconductor]
Download : Click here to Download

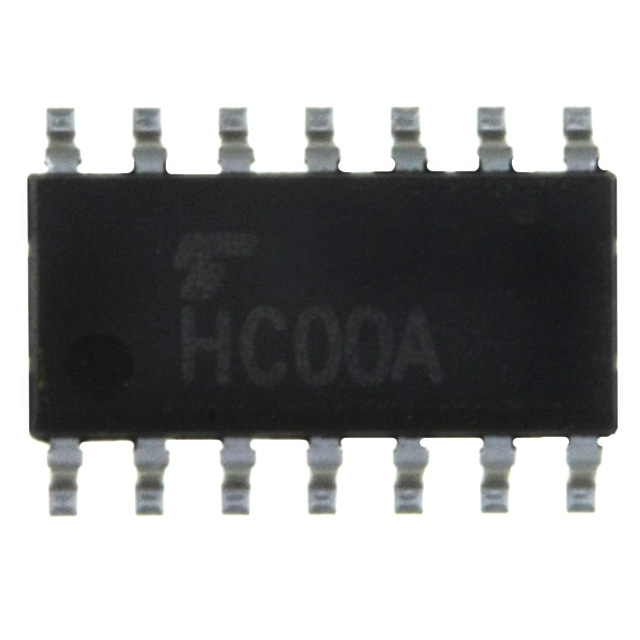

| Technical/Catalog Information | TC74HC00AFN |
| Vendor | Toshiba |
| Category | Integrated Circuits (ICs) |
| Number of Circuits | 4 - Quad |
| Package / Case | 14-SOIC (3.9mm Width), 14-SOL |
| Logic Type | NAND Gate |
| Packaging | Tube |
| Mounting Type | Surface Mount |
| Number of Inputs | 2 |
| Current - Output High, Low | 4mA, 4mA |
| Supply Voltage | 2 V ~ 6 V |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2 V ~ 6 V |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | TC74HC00AFN TC74HC00AFN |
| Technical/Catalog Information | TC74HC00AP |
| Vendor | Toshiba |
| Category | Integrated Circuits (ICs) |
| Number of Circuits | 4 - Quad |
| Package / Case | 14-DIP |
| Logic Type | NAND Gate |
| Packaging | Tube |
| Mounting Type | Through Hole |
| Number of Inputs | 2 |
| Current - Output High, Low | 4mA, 4mA |
| Supply Voltage | 2 V ~ 6 V |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2 V ~ 6 V |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | TC74HC00AP TC74HC00AP |
The TC74HC00AP is designed as a high speed CMOS 2-input NAND gate fabricated with silicon gate C2MOS technology.
It has eight features. (1)High speed which would be typ 6ns at Vcc=5V. (2)Low power dissipation which means Icc=1uA max at Ta=25°C. (3)High noise immunity which would be min 28%Vcc. (4)Output drive immunity 10 LSTTL loads. (5)Symmetrical output impedance which would be 4mA min. (6)Balanced propagation delays. (7)Wide operating voltage range which would be from 2V to 6V. (8)Pin and function compatible with 74LS00. Those are all the main features.
Some absolute maximum ratings have been concluded into several points as follow. (1)Its supply voltage range would be from -0.5V to 7.0V. (2)Its DC input voltage would be from -0.5V to Vcc+0.5V. (3)Its DC output voltage would be from -0.5V to Vcc+0.5V. (4)Its input diode current would be +/-20mA. (5)Its output diode current would be +/-20mA. (6)Its DC output current would be +/-25mA. (7)Its DC Vcc/ ground current would be +/-50mA. (8)Its power dissipation would be 500mW. (9)Its storage temperature range would be from -65°C to 150°C. It should be noted that stresses above those listed in absolute maximum ratings may cause permanent damage to device.
Also some DC electrical characteristics at Vcc=4.5V are concluded as follow. (1)Its high level input voltage would be min 3.15V. (2)Its low level input voltage would be max 1.35V. (3)Its high level output voltage would be min 4.4V and typ 4.5V at Ioh=-20uA and would be min 4.18V and typ 4.31V at Ioh=-4mA. (4)Its low level output voltage would be max 0.1V at Iol=20uA and would be max 0.26V at Iol=4mA.
It should be noted that toshiba is continually working to improve the quality and the reliability of its products. Nevertheless, semiconductor devices in general can malfunction or fail due to their inherent electrical sensitivity and vulnerability to physical stress. It is the responsibility of the users, when utilizing these products, to observe standards of safety, and to avoid situations in which a malfunction or failure of a product could cause loss of human life, bodily injury or damage to property. And so on. If you have any question or suggestion or want to know more information please contact us for details. Thank you!
