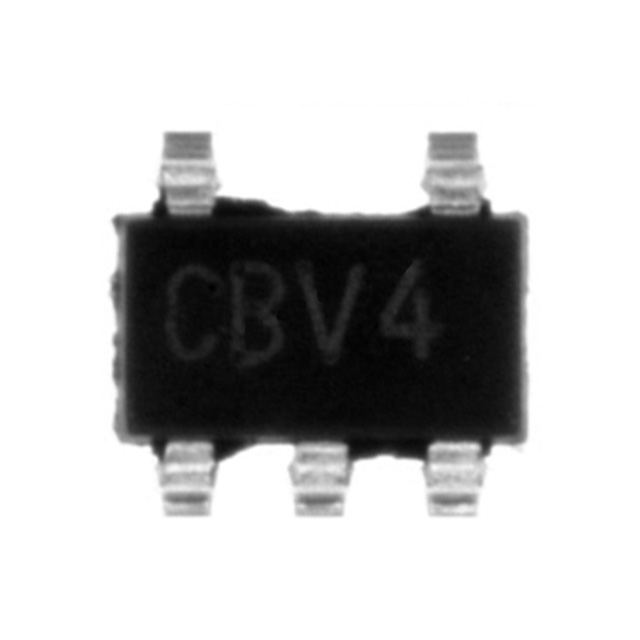

Part Number: TCM829ECT713

Category: Integrated Circuits (ICs)

MFG: Microchip Technology

Package Cooled: NA

D/C: N/A

Description: IC CHARGE PUMP CONV SOT23A-5

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

TCM829 General Description

The TCM828/829 are CMOS "charge-pump" voltage converters in ultra-small 5-Pin SOT-23A packages. They invert and/or double an input voltage which can range from +1.5V to +5.5V. Conversion efficiency is typically >95%.

Switching frequency is 12kHz for the TCM828 and 35kHz for the TCM829.

External component requirement is only two capacitors (3.3F nominal) for standard voltage inverter applications.

With a few additional components a positive doubler can also be built. All other circuitry, including control, oscillator, power MOSFETs are integrated on-chip. Supply current is 50A (TCM828) and 115A (TCM829).

The TCM828 and TCM829 are available in a 5-Pin SOT-23A surface mount package.

TCM829 Maximum Ratings

Input Voltage (V_IN to GND) ......................... +6.0V, 0.3V
Output Voltage (OUT to GND) .................... 6.0V, + 0.3V
Current at OUT Pin ..................................................50mA
Short-Circuit Duration OUT to GND ................ Indefinite
Operating Temperature Range ............... 40°C to +85
Power Dissipation (T_A 70)
5-Pin SOT-23A .......................................................240mW
Storage Temperature (Unbiased) ......... 65°C to +150
Lead Temperature (Soldering, 10 sec) ................. +300

*This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

TCM829 Features

` Charge Pump in 5-Pin SOT-23A Package
` >95% Voltage Conversion Efficiency
` Voltage Inversion and/or Doubling
` Low 50A (TCM828) Quiescent Current
` Operates from +1.5V to +5.5V
` Up to 25mA Output Current
` Only Two External Capacitors Required

TCM829 Typical Application

· LCD Panel Bias
· Cellular Phones
· Pagers
· PDAs, Portable Dataloggers
· Battery-Powered Devices

TCM829 Connection Diagram

TCM829ECT713 Parameters

Technical/Catalog Information	TCM829ECT713
Vendor	Microchip Technology
Category	Integrated Circuits (ICs)
Type	Switched Capacitor (Charge Pump), Doubler, Inverting
Number of Outputs	1
Voltage - Input	1.5 ~ 5.5 V
Voltage - Output	-1.5 ~ -5.5 V, ±3 ~ ±11 V
Current - Output	25mA
Power - Output	240mW
Package / Case	SOT-23A-5
Packaging	Tape & Reel (TR)
Internal Switch(s)	Yes
Synchronous	-
Rds (On)	-
Operating Temperature	-40°C ~ 85°C
Frequency - Switching	35kHz
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TCM829ECT713 TCM829ECT713 TCM829ECT713TR ND TCM829ECT713TRND TCM829ECT713TR
