MFG:Infineon Technologies Category:RF and RFID Package Cooled:TSSOP D/C:04+
TDK5100, TDK5100F, TDK5100FXT Datasheet download
Category: RF and RFID
MFG: Infineon Technologies
Package Cooled: TSSOP
D/C: 04+

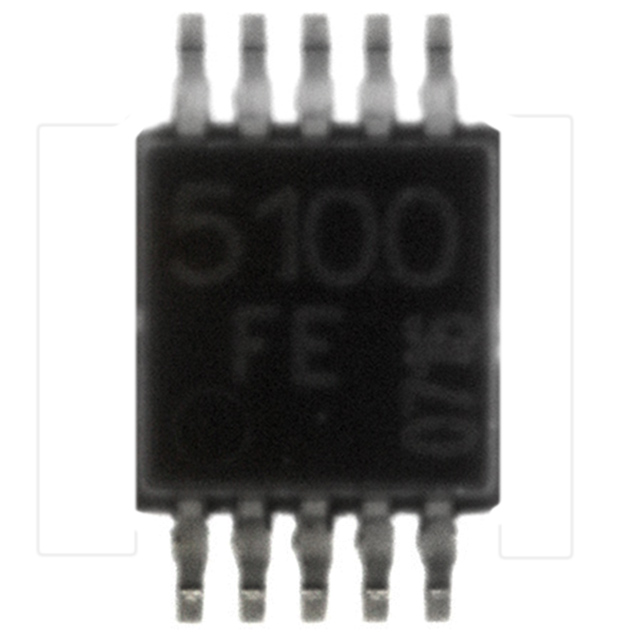

Description: TRANSMITTER ASK/FSK SGL TSSOP10
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: TDK5100
File Size: 644741 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: TDK5100F
File Size: 515161 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: TDK5100
File Size: 644741 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
| Technical/Catalog Information | TDK5100 |
| Vendor | Infineon Technologies |
| Category | RF and RFID |
| Features | - |
| Package / Case | 16-TSSOP |
| Packaging | Tape & Reel (TR) |
| Applications | Remote Control, RKE, Security Systems |
| Data Rate - Maximum | - |
| Frequency | 433 ~ 435MHz; 866 ~ 870MHz |
| Modulation or Protocol | ASK, FSK |
| Current - Transmitting | 7mA |
| Operating Temperature | -40°C ~ 125°C |
| Power - Output | 5dBm |
| Voltage - Supply | 2.1 V ~ 4 V |
| Memory Size | - |
| Data Interface | PCB, Surface Mount |
| Antenna Connector | PCB, Surface Mount |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | TDK5100 TDK5100 |
The TDK 5100 is a single chip ASK/ FSK transmitter for the frequency bands 433-435 and 868-870 MHz. The IC offers a high level of integration and needs only a few external components.
The device contains a fully integrated PLL synthesizer and a high efficiency power amplifier to drive a loop antenna.
A special circuit design and an unique power amplifier design are used to save current consumption and therefore to save battery life. Additionally features like a power down mode, a low power detect, a selectable crystal oscillator frequency and a divided clock output are implemented. The IC can be used for both ASK and FSK modulation.
| Parameter | Symbol | Limit Values | Unit | Remarks | |
| Min | Max | ||||
| Junction Temperature | TJ | -40 | 150 | ||
| Storage Temperature | Ts | -40 | 125 | ||
| Thermal Resistance | RthJA | 230 | K/W | ||
| Supply Voltage | VS | -0.3 | +4.0 | V | |
| Voltage at any pin excluding pin 14 |
Vpins | −0.3 | VS + 0.3 | V | |
| Voltage at pin 14 | Vpin14 | −0.3 | 2 * VS | V | No ESD-Diode to VS |
| Current into pin 11 | Ipin11 | -10 | 10 | mA | |
| ESD integrity, all pins | VESD | -1 | +1 | kV | JEDEC Standard JESD22-A114-B |
| ESD integrity, all pins excluding pin 14 |
VESD | -2 | +2 | kV | JEDEC Standard JESD22-A114-B |
| Technical/Catalog Information | TDK5100F |
| Vendor | Infineon Technologies |
| Category | RF and RFID |
| Features | - |
| Package / Case | 10-TSSOP |
| Packaging | Tape & Reel (TR) |
| Applications | Alarm Systems, Communication Systems |
| Data Rate - Maximum | 20 kbps |
| Frequency | 434MHz Center |
| Modulation or Protocol | ASK, FSK |
| Current - Transmitting | 7mA |
| Operating Temperature | -25°C ~ 85°C |
| Power - Output | 5dBm |
| Voltage - Supply | 2.1 V ~ 4 V |
| Memory Size | - |
| Data Interface | PCB, Surface Mount |
| Antenna Connector | PCB, Surface Mount |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | TDK5100F TDK5100F TDK5100FINTR ND TDK5100FINTRND TDK5100FINTR |
The TDK 5100 F is a single chip ASK/ FSK transmitter for the frequency band 433-435 MHz. The IC offers a high level of integration and needs only a few external components. The device contains a fully integrated PLL synthesizer and a high efficiency power amplifier to drive a loop antenna. A special circuit design and an unique power amplifier design are used to save current consumption and therefore to save battery life. Additional features are a power down mode and a divided clock output.
| Parameter | Symbol | Limit Values | Unit | Remarks | |
| Min | Max | ||||
| Junction Temperature | TJ | -40 | +150 | ||
| Storage Temperature | Ts | -40 | +125 | ||
| Thermal Resistance | RthJA | t.b.d. | K/W | ||
| Supply voltage | VS | −0.3 | +4.0 | V | |
| Voltage at any pin excluding pin 9 |
Vpins | −0.3 | VS + 0.3 | V | |
| Voltage at pin 9 | Vpin9 | −0.3 | 2 * VS | V | No ESD-Diode to VS |
| Current into pin 4 | Ipin4 | -10 | 10 | mA | |
| ESD integrity, all pins | VESD | -1 | +1 | kV | JEDEC Standard JESD22-A114-B |
| ESD integrity, all pins excluding pin 9 |
VESD | -2 | +2 | kV | JEDEC Standard JESD22-A114-B |
