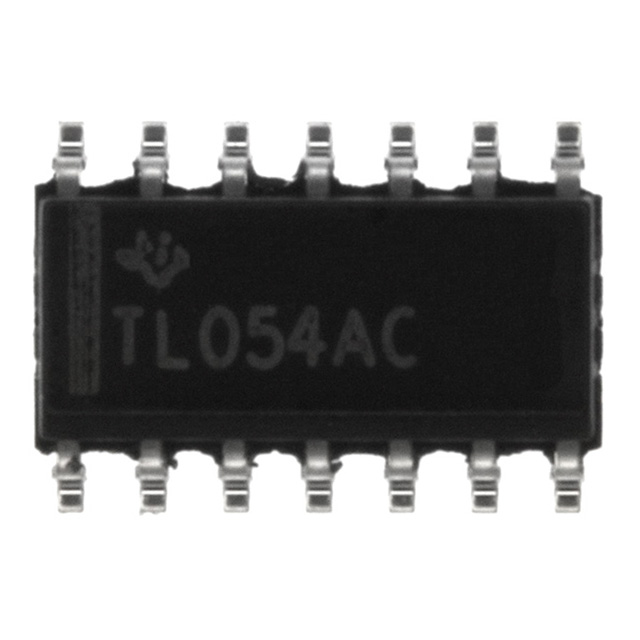

MFG:Texas Instruments Category:Integrated Circuits (ICs) Package Cooled:SMD14 D/C:09+
TL054AC, TL054ACD, TL054AI Datasheet download
Category: Integrated Circuits (ICs)
MFG: Texas Instruments
Package Cooled: SMD14
D/C: 09+
Description: IC OPAMP JFET 2.7MHZ QUAD 14SOIC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: TL054ACD
File Size: 1047175 KB
Manufacturer: TI [Texas Instruments]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: TL054ACD
File Size: 1047175 KB
Manufacturer: TI [Texas Instruments]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: TL054AID
File Size: 1047175 KB
Manufacturer: TI [Texas Instruments]
Download : Click here to Download
| Technical/Catalog Information | TL054ACD |
| Vendor | Texas Instruments |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Amplifier Type | J-FET |
| Number of Circuits | 4 - Quad |
| Package / Case | 14-SOIC (3.9mm Width), 14-SOL |
| Slew Rate | 17.8 V/s |
| Gain Bandwidth Product | 2.7MHz |
| Current - Supply | 8.4mA |
| Current - Output / Channel | 80mA |
| Voltage - Supply, Single/Dual (±) | 10 V ~ 30 V, ±5 V ~ 15 V |
| Output Type | - |
| -3db Bandwidth | - |
| Current - Input Bias | 30pA |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Input Offset | 500V |
| Drawing Number | 296; 4040047-3; D; 14 |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | TL054ACD TL054ACD 296 7165 5 ND 29671655ND 296-7165-5 |
