TLC556CD, TLC556CDR, TLC556CN

Table of contents:
Info of TLC556CD
Info of TLC556CDR
Info of TLC556CN

TLC556CD, TLC556CDR, TLC556CN Selling Leads, Datasheet

MFG:Texas Instruments Category:Integrated Circuits (ICs) Package Cooled:SOP14 D/C:2005

TLC556CD, TLC556CDR, TLC556CN Datasheet download

Five Points

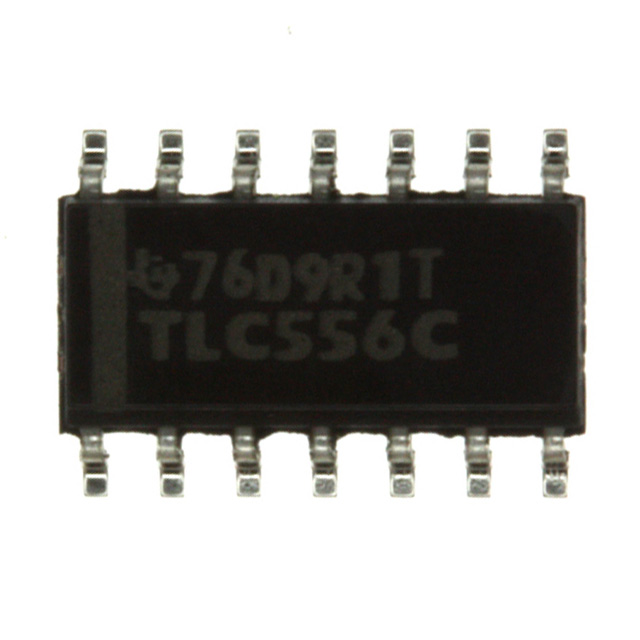

Part Number: TLC556CD

Category: Integrated Circuits (ICs)

MFG: Texas Instruments

Package Cooled: SOP14

D/C: 2005

Description: IC DUAL CMOS TIMER 14-DIP

Price Break

1
25
100
250
500
1000
5000

Unit Price

1.11000
.92520
.74000
.55500
.51800
.49210
.47175

Extended Price

1.11
23.13
74.00
138.75
259.00
492.10
2358.75

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

TLC556CD Parameters

Technical/Catalog Information	TLC556CD
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Type	555 Type, Timer/Oscillator (Dual)
Frequency	2.1MHz
Count	-
Voltage - Supply	2 V ~ 18 V
Current	100mA
Package / Case	14-SOIC (3.9mm Width), 14-SOL
Packaging	Tube
Operating Temperature	0°C ~ 70°C
Drawing Number	296; 4040047-3; D; 14
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TLC556CD TLC556CD 296 1338 5 ND 29613385ND 296-1338-5

TLC556CDR Parameters

Technical/Catalog Information	TLC556CDR
Vendor	Texas Instruments (VA)
Category	Integrated Circuits (ICs)
Type	555 Type, Timer/Oscillator (Dual)
Frequency	2.1MHz
Count	-
Voltage - Supply	2 V ~ 18 V
Current	100mA
Package / Case	14-SOIC (3.9mm Width), 14-SOL
Packaging	Digi-Reel?
Operating Temperature	0°C ~ 70°C
Drawing Number	296; 4040047-3; D; 14
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TLC556CDR TLC556CDR 296 1338 6 ND 29613386ND 296-1338-6

TLC556CN Parameters

Technical/Catalog Information	TLC556CN
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Type	555 Type, Timer/Oscillator (Dual)
Frequency	2.1MHz
Count	-
Voltage - Supply	2 V ~ 18 V
Current	100mA
Package / Case	14-DIP (300 mil)
Packaging	Tube
Operating Temperature	0°C ~ 70°C
Drawing Number	296; 4040049; N; 14, 16, 18, 20
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TLC556CN TLC556CN 296 1859 5 ND 29618595ND 296-1859-5
