MFG:Toshiba Category:Integrated Circuits (ICs) Package Cooled:1000 D/C:05+
TMP92CH21FG, TMP92CM226, TMP92CZ26AXBG Datasheet download
Category: Integrated Circuits (ICs)
MFG: Toshiba
Package Cooled: 1000
D/C: 05+
Description: IC MCU 32BIT ROMLESS 228-FBGA
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: TMP92CH21FG
File Size: 1001903 KB
Manufacturer: Toshiba
Download : Click here to Download
PDF/DataSheet Download
Datasheet: TMP01
File Size: 386137 KB
Manufacturer: AD [Analog Devices]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: TMP01
File Size: 386137 KB
Manufacturer: AD [Analog Devices]
Download : Click here to Download
| Technical/Catalog Information | TMP92CZ26AXBG |
| Vendor | Toshiba |
| Category | Integrated Circuits (ICs) |
| Program Memory Size | - |
| RAM Size | 288K x 8 |
| Number of I /O | 136 |
| Package / Case | 228-FBGA |
| Speed | 80MHz |
| Controller Series | TLCS-900/H1 |
| Oscillator Type | Internal |
| Packaging | Tray |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | 900/H1 |
| Data Converters | A/D 6x10b |
| Core Size | 32-Bit |
| Operating Temperature | -20°C ~ 85°C |
| Connectivity | I²C, IrDA, SIO, SPI, USB |
| Peripherals | DMA, I²S, LCD, WDT |
| Voltage - Supply (Vcc/Vdd) | 1.4 V ~ 1.6 V |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | TMP92CZ26AXBG TMP92CZ26AXBG |
The boot program receives a user program sent from the PC via UART and transfers it to the internal RAM. If the transfer ends normally, the boot program calculates SUM and sends the result to the PC before executing the user program. The execution start address is the first address received. The boot program enables users to perform customized on-board programming.
When UART is used to download a user program, the maximum allowed program size is 282 Kbytes (3000H 49800H). (The extended Intel Hex format is supported.) a) Operation procedure
1. Connect the serial cable. This must be done before the microcontroller is reset.
2. Set the AM1 and AM0 pins to "1" and reset the microcontroller.
3. The receive data in the 1st byte is matching data (5AH). Upon starting in BOOT mode, the boot program goes to a state in which it waits for matching data. When matching data is received, the initial baud rate of the serial channel is automatically set to 9600 bps.
4. The 2nd byte is used to echo back 5AH to the PC upon completion of the automatic baud rate setting in the 1st byte. If automatic baud rate setting fails, the boot program stops operation.
5. The 3rd through 6th bytes are used to send the version management information of the boot program in ASCII code. The PC should check that the correct version of the boot program is used.
6. The 7th byte is used to send information on the measured frequency. The PC should check that the frequency of the resonator is measured correctly.
| Symbol | Contents | Rating | Unit |
| DVCC3A DVCC3B |
Power Supply Voltage | -0.3 to 3.9 | V |
| DVCC1A DVCC1B DVCC1C |
-0.3 to 3.0 | ||
| AVCC | -0.3 to 3.9 | ||
| VIN | Input Voltage | -0.3 ∼ DVCC3A/3B+0.3 (Note1) -0.3 to AVCC + 0.3 (Note2) |
V |
| IOL | Output Current (1pin) | 15 | mA |
| IOH | Output Current (1pin) | -15 | mA |
| IOL | Output Current (total) | 80 | mA |
| IOH | Output Current (total) | -50 | mA |
| PD | Power Dissipation (Ta = 85) | 600 | mW |
| TSOLDER | Soldering Temperature (10s) | 260 | |
| TSTG | Storage Temperature | -65 to 150 | |
| TOPR | Operation Temperature | -0 to 70 | |
| TOPR | Operation Temperature (80MHz) |
-0 to 50 |
Note1: If setting it, don't exceed the Maximum Ratings of DVCC3A (PV port and PW port are DVCC3B).
Note2: In PG0 to PG5, P96,P97,VREFH,VREFL maximum ratings for AVCC is applied.
Note3: The absolute maximum ratings are rated values that must not be exceeded during operation, even for an instant. Any one of the ratings must not be exceeded. If any absolute maximum rating is exceeded, a device may break down or its performance may be degraded, causing it to catch fire or explode resulting in injury to the user. Thus, when designing products that include this device, ensure that no absolute maximum rating value will ever be exceeded.
The TMP92CZ26A is a high-speed advanced 32-bit microcontroller developed for controlling equipment which processes mass data.

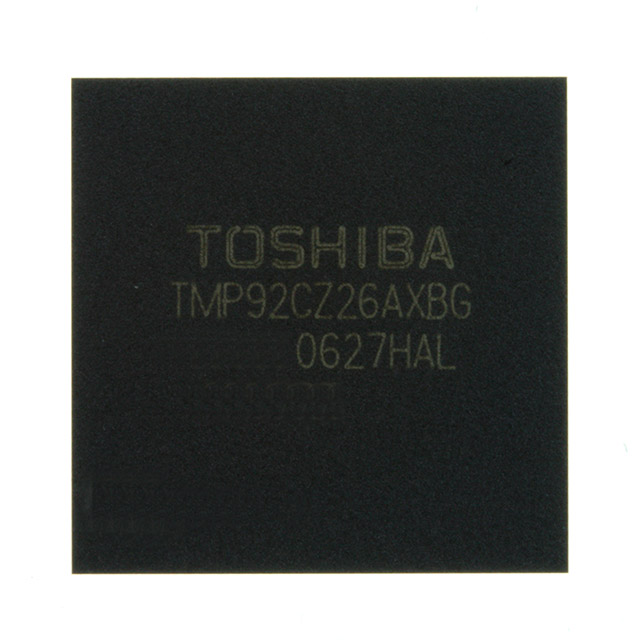

The TMP92CZ26AXBG is housed in a 228-pin BGA package.
(1) CPU: 32-bit CPU (High-speed 900/H1 CPU)
• Compatible with TLCS-900/L1 instruction code
• 16 Mbytes of linear address space
• General-purpose register and register banks
• Micro DMA: 8channels (62.5 ns/4 bytes at fSYS = 80 MHz, best case)
(2) Minimum instruction execution time: 12.5 ns (at fSYS = 80 MHz)
(3) Internal RAM: 288 Kbytes (can be used for program, data and display memory) Internal ROM: 8 Kbytes (memory for Boot only) Possible downloading of user program through either USB, UART.
