TMS320F2812PGFA, TMS320F2812PGFS, TMS320F2812ZHHA

Table of contents:
Info of TMS320F2812PGFA
Info of TMS320F2812PGFS
Info of TMS320F2812ZHHA

TMS320F2812PGFA, TMS320F2812PGFS, TMS320F2812ZHHA Selling Leads, Datasheet

MFG:Texas Instruments Category:Integrated Circuits (ICs) Package Cooled:TI D/C:06+

TMS320F2812PGFA, TMS320F2812PGFS, TMS320F2812ZHHA Datasheet download

Five Points

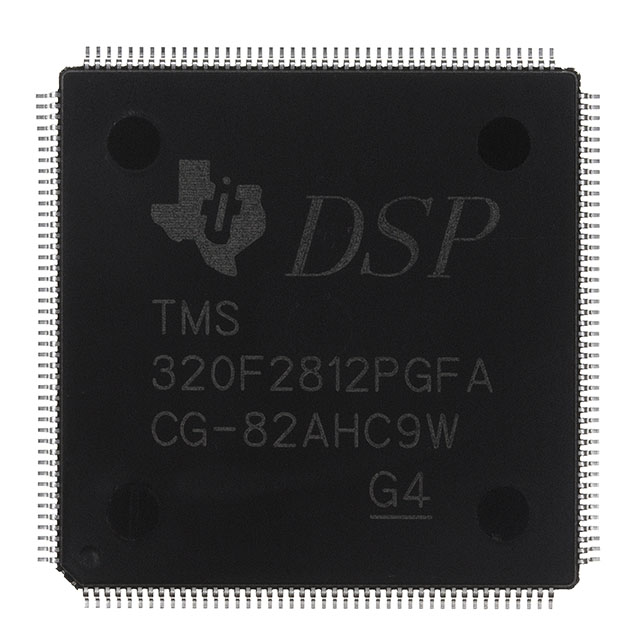

Part Number: TMS320F2812PGFA

Category: Integrated Circuits (ICs)

MFG: Texas Instruments

Package Cooled: TI

D/C: 06+

Description: IC DSP W/FLASH 128KX16 179-BGA

Price Break

1
25
100
250
500
1000
5000

Unit Price

23.63000
22.05000
20.47500
20.08124
19.68750
19.45125
18.90000

Extended Price

23.63
551.25
2047.50
5020.31
9843.75
19451.25
94500.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

TMS320F2812PGFA Parameters

Technical/Catalog Information	TMS320F2812PGFA
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Package / Case	176-LQFP
Packaging	Tube
Type	Fixed Point
Non-Volatile Memory	FLASH (256 kB), OTP (2 kB), ROM (8 kB)
On-Chip RAM	36kB
Interface	CAN, McBSP, SCI, SPI
Voltage - I/O	3.30V
Voltage - Core	1.90V
Clock Rate	150MHz
Operating Temperature	-40°C ~ 85°C
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TMS320F2812PGFA TMS320F2812PGFA 296 15990 5 ND 296159905ND 296-15990-5

TMS320F2812PGFA General Description

The TMS320F2812PGFA is designed as one kind of highly integrated, high-performance solutions for demanding control applications.The functional blocks and the memory maps are described in subsequent paragraphs.Also it contains an additional 16K x 16 of single-access RAM, divided into 3 blocks (4K + 4K + 8K). Each block can be independently accessed hence minimizing pipeline stalls. Each block is mapped to both program and data space.

Features of the TMS320F2812PGFA are:(1)high-performance static CMOS technology:150 MHz (6.67-ns cycle time),low-power (1.8-V core, 3.3-V I/O) design, 3.3-V flash programming voltage;(2)three 32-bit CPU-timers;(3)three external interrupts;(4)peripheral interrupt expansion (PIE) block that supports 45 peripheral interrupts;(5)128-bit security key/lock;(6)motor control peripherals;(7)low-power modes and power savings;(8)up to 56 individually programm-able,multiplexed general-purpose input/output (GPIO) pins.

The absolute maximum ratings over operating free-air temperature ranges (unless otherwise noted) of the TMS320F2812PGFA can be summarized as:(1)supply voltage range:-0.3 V to 4.6 V;(2)VCCP range:-0.3 V to 3.6 V;(3)input voltage range:-0.3 V to 4.6 V;(4)output voltage range:-0.3 V to 4.6 V;(5)input clamp current:±20 mA;(6)output clamp current:±20 mA;(7)operating free-air temperature ranges:-40°C to 85°C;(8)junction temperature range:-40°C to 150°C;(9)storage temperature range:-65°C to 150°C.If you want to know more information such as the electrical characteristics about the TMS320F2812-PGFA,please download the datasheet in www.seekic.com or www.chinaicmart.com .

TMS320F2812PGFS Parameters

Technical/Catalog Information	TMS320F2812PGFS
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Package / Case	176-LQFP
Packaging	Tray
Type	Fixed Point
Non-Volatile Memory	FLASH (256 kB), OTP (2 kB), ROM (8 kB)
On-Chip RAM	36kB
Interface	CAN, McBSP, SCI, SPI
Voltage - I/O	3.30V
Voltage - Core	1.90V
Clock Rate	150MHz
Operating Temperature	-40°C ~ 125°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TMS320F2812PGFS TMS320F2812PGFS

TMS320F2812ZHHA Parameters

Technical/Catalog Information	TMS320F2812ZHHA
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Package / Case	179-BGA Microstar
Packaging	Tray
Type	Fixed Point
Non-Volatile Memory	FLASH (256 kB), OTP (2 kB), ROM (8 kB)
On-Chip RAM	36kB
Interface	CAN, McBSP, SCI, SPI
Voltage - I/O	3.30V
Voltage - Core	1.90V
Clock Rate	150MHz
Operating Temperature	-40°C ~ 85°C
Drawing Number	296; 4204739-5; ZHH; 179
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TMS320F2812ZHHA TMS320F2812ZHHA 296 18338 ND 29618338ND 296-18338
