The TP3404 is a combination 4-line transceiver for voice and data transmission on twisted pair subscriber loops, typically in PBX line card applications. It is a companion device to the TP3401/2/3 DASL single-channel transceivers. In addition to 4 independent transceivers, a time-slot assignment circuit is included to support interfacing to the system backplane.
Each QDASL line operates as an ISDN "U" Interface for short loop applications, typically in a PBX environment, providing transmission for 2 B channels and 1 D channel.
Full-duplex transmission at 144 kb/s is achieved on single twisted wire pairs using a burst-mode technique (Time Compression Multiplexed). All timing sequences necessary for loop activation and de-activation are generated on-chip.
Alternate Mark Inversion (AMI) line coding is used to ensure low error rates in the presence of noise with lower emi radiation than other codes such as Biphase (Manchester). On #24 AWG cable the range is at least 1.8 km (6k ft.).
Reliability Metrics
Part Number | Process | EFR Reject | EFR Sample Size | PPM | LTA Rejects | LTA Device Hours | FITS | MTTF (Hours) |
TP3404V | CS100 | 1 | 13986 | 72 | 0 | 898000 | 4 | 254809951 |
More Application Notes
Title | Size in Kbytes | Date | |
AN-492: AN-492: Intuitive ISDN - An ISDN Tutorial (115 Kbytes; 04-Nov-1995) | 115 Kbytes | 25-May-06 | Download |
If you have trouble printing or viewing PDF file(s), see Printing Problems. |
View Using Catalog |
4 COMPLETE ISDN PBX 2-WIRE DATA TRANSCEIVERS INCLUDING:
`Quad 2 B plus D channel interface for PBX ``U'' interface
`144 kb/s full-duplex on 1 twisted pair using Burst Mode Transmission Technique
`Loop range up to 6 kft (24AWG)
`Alternate Mark Inversion coding with transmit Pulse Shaping DAC, Smoothing Filter, and scrambler for low emi radiation
`Adaptive line equalizer
`On-chip timing recovery, no external components
`Programmable Time-Slot Assignment TDM interface for B channels
`Separate interface for D channel with Programmable Sub-Slot Assignment
`4.096 MHz master clock
`4 loop-back test modes

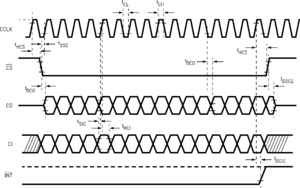

`MICROWIRETM compatible serial control interface
`5V operation
`28-pin PLCC package
The TP3406 is a complete monolithic transceiver for data ransmission on twisted pair subscriber loops. It is built on ational's double poly microCMOS process, and requires nly a single +5Volt supply. Alternate Mark Inversion (AMI) ine coding, in which binary `1's are alternately transmitted s a positive pulse then a negative pulse, is used to ensure ow error rates in the presence of noise with lower emi radiation han other codes such as Bi-phase (Manchester).
Full-duplex transmission at 144 kb/s is achieved on a single wisted wire pair using a burst-mode technique (Time Compression ultiplexed). Thus the device operates as an ISDN U' Interface for short loop applications, typically in a PBX nvironment, providing transmission for 2 B channels and 1 channel. On 24 cable, the range is up to 800 meters.
System timing is based on a Master/Slave configuration, ith the line card end being the Master which controls loop iming and synchronisation. All timing sequences necessary or loop activation and de-activation are generated on-chip. Selection of Master and Slave mode operation is programmed via the Microwire Control Interface.
A 2.048 MHz clock, which may be synchronized to the system clock, controls all transmission-related timing functions.
If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/Distributors for availability and specifications.
VCC to GND.............................. 7V
Voltage at Li, Lo ....................VCC+1V to VSS-1V
Voltage at any Digital Input.............. VCC+1V to VSS-1V
Storage Temperature Range............. -65°C to +150°C
Current at Lo......................... ± 100 mA
Current at any Digital Output ..................± 50 mA
Lead Temperature (Soldering, 10 sec.) ..............300°C
ESD (Human Body Model) .....................2000V
