MFG:Texas Instruments Category:Programmers, Development Systems Package Cooled:QFN D/C:08+
TPA2012RTJRG4, TPA2013D1, TPA2013D1EVM Datasheet download
Category: Programmers, Development Systems
MFG: Texas Instruments
Package Cooled: QFN
D/C: 08+
Description: EVALUATION MODULE
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: TPA
File Size: 208856 KB
Manufacturer: STMicroelectronics
Download : Click here to Download
PDF/DataSheet Download
Datasheet: TPA
File Size: 208856 KB
Manufacturer: STMicroelectronics
Download : Click here to Download
PDF/DataSheet Download
Datasheet: TPA
File Size: 208856 KB
Manufacturer: STMicroelectronics
Download : Click here to Download
The TPA2013D1 is a high efficiency Class-D audio power amplifier with an integrated boost converter. It drives up to 2.7 W (10% THD+N) into a 4 speaker.
With 85% typical efficiency, the TPA2013D1 helps extend battery life when playing audio.
The built-in boost converter generates the voltage rail for the Class-D amplifier. This provides a louder audio output than a stand-alone amplifier connected directly to the battery. It also maintains a consistent loudness, regardless of battery voltage. Additionally, the boost converter can be used to supply external devices.
The TPA2013D1 has an integrated low pass filter to improve RF rejection and reduce out-of-band noise, increasing the signal to noise ratio (SNR). A built-in PLL synchronizes the boost converter and Class-D switching frequencies, thus eliminating beat frequencies and improving audio quality. All outputs are fully protected against shorts to ground, power supply, and output-to-output shorts.
| VALUE | UNIT | |
| VDD Supply voltage | 0.3 to 6 | V |
| VI Input voltage, Vi: SDb, SDd, IN+, IN, VCCFB | 0.3 to VDD + 0.3 | V |
| Continuous total power dissipation | See Dissipation Rating Table | |
| TA Operating free-air temperature range | 40 to 85 | |
| TJ Operating junction temperature range | 40 to 150 | |
| Tstg Storage temperature range | 65 to 150 |
(1) Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings only, and functional operations of the device at these or any other conditions beyond those indicated under ecommended operating conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device eliability.
` High Efficiency Integrated Boost Converter (Over 90% Efficiency)
` 2.2-W into an 8- Load from a 3.6-V Supply
` 2.7-W into an 4- Load from a 3.6-V Supply
` Operates from 1.8 V to 5.5 V
` Efficient Class-D Prolongs Battery Life
` Independent Shutdown for Boost Converter and Class-D Amplifier
` Differential Inputs Reduce RF Common Noise
` Built-in INPUT Low Pass Filter Decreases RF and Out of Band Noise Sensitivity
` Synchronized Boost and Class-D Eliminates Beat Frequencies
` Thermal and Short-Circuit Protection
` Available in 2.275 mm x 2.275 mm 16-ball WCSP and 4 mm x 4 mm 20-Lead QFN Packages
` 3 Selectable Gain Settings of 2 V/V, 6 V/V, and 10 V/V

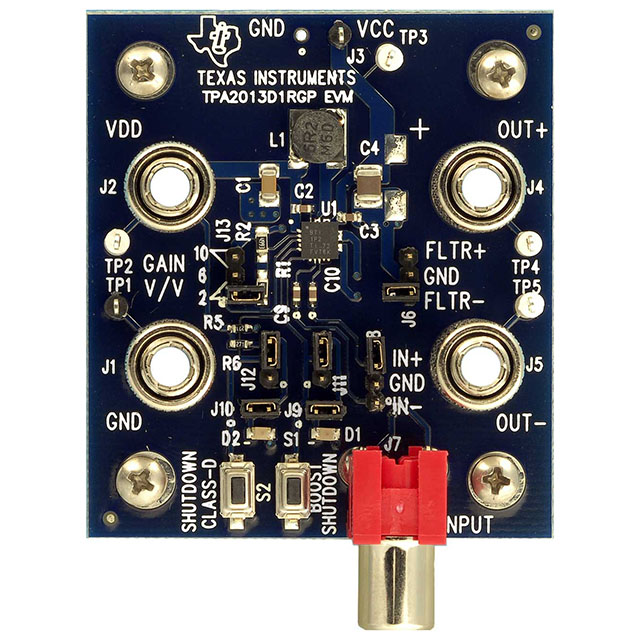

| Technical/Catalog Information | TPA2013D1EVM |
| Vendor | Texas Instruments |
| Category | Programmers, Development Systems |
| Amplifier Type | Class D |
| Board Type | Fully Populated |
| Max Output Power x Channels @ Load | 2.7W x 1 @ 4 Ohm |
| Output Type | 1-Channel (Mono) |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.8 V ~ 5.5 V |
| Utilized IC / Part | TPA2013D1 |
| Supplied Contents | Board |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | TPA2013D1EVM TPA2013D1EVM |
