TPS75615, TPS75615KC, TPS75615KTTT Datasheet download
Category: Integrated Circuits (ICs)
MFG: Texas Instruments (VA)
Package Cooled: SMD-5
D/C: SOT263
Description: IC LDO REG 5A 1.5V TO-263-5
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: TPS75615
File Size: 519271 KB
Manufacturer: TI
Download : Click here to Download
PDF/DataSheet Download
Datasheet: TPS
File Size: 42204 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: TPS75615KTTT
File Size: 461527 KB
Manufacturer: TI [Texas Instruments]
Download : Click here to Download
The TPS756xx family of 5-A low dropout (LDO) regulators contains four fixed voltage option regu- lators and an adjustable voltage option regulator. These devices are capable of supplying 5 A of output current with a dropout of 250 mV (TPS75633). Therefore, the device is capable of performing a 3.3-V to 2.5-V conversion.
Quiescent current is 125 µA at full load and drops down to less than 1 µA when the device is disabled. The TPS756xx is designed to have fast transient response for large load current changes.
| UNIT | |
| Input voltage range, VI | -0.3 V to 6 V |
| Voltage range at EN | -0.3 V to 6 V |
| Peak output current | Internally limited |
| Continuous total power dissipation | See Dissipation Rating Tables |
| Output voltage, VO (OUTPUT, FB) | 5.5 V |
| Operating junction temperature range, TJ | -40°C to 150°C |
| Storage temperature range, Tstg | -65°C to 150°C |
| ESD rating, HBM | 2 kV |
| ESD rating, CDM | 500 V |
| Technical/Catalog Information | TPS75615KC |
| Vendor | Texas Instruments |
| Category | Integrated Circuits (ICs) |
| Regulator Type | Single Output |
| Package / Case | TO-220-5 (Straight Leads) |
| Packaging | Tube |
| Regulator Topology | Positive Fixed |
| Current - Output | 5A |
| Voltage - Output | 1.5V |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Input | 2.8 ~ 5.5 V |
| Number of Regulators | 1 |
| Current - Limit (Min) | 5.5A |
| Current Short Circuit (Isc) | - |
| Drawing Number | 296; 4040208; KC; 5 |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | TPS75615KC TPS75615KC 296 11949 5 ND 296119495ND 296-11949-5 |
| Technical/Catalog Information | TPS75615KTTT |
| Vendor | Texas Instruments (VA) |
| Category | Integrated Circuits (ICs) |
| Regulator Type | Single Output |

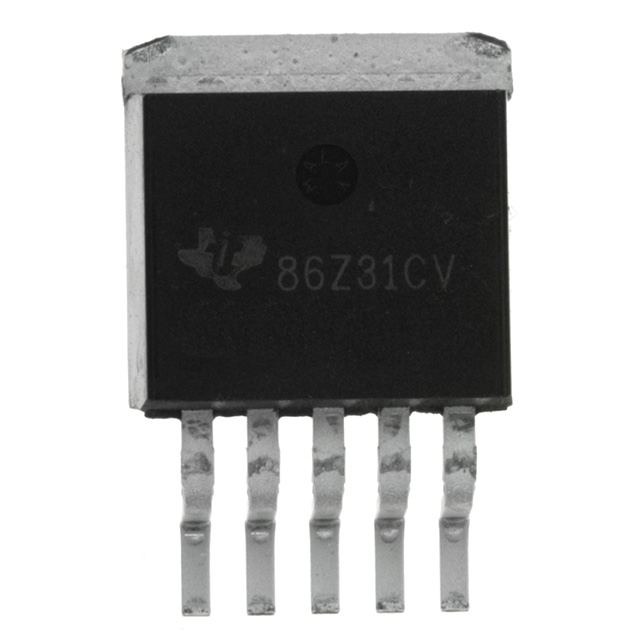

| Package / Case | D²Pak, SMD-220, TO-263 (5 leads + tab) |
| Packaging | Digi-Reel? |
| Regulator Topology | Positive Fixed |
| Current - Output | 5A |
| Voltage - Output | 1.5V |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Input | 2.8 ~ 5.5 V |
| Number of Regulators | 1 |
| Current - Limit (Min) | 5.5A |
| Current Short Circuit (Isc) | - |
| Drawing Number | 296; 4200577-3; KTT; 5 |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | TPS75615KTTT TPS75615KTTT 296 15916 6 ND 296159166ND 296-15916-6 |
