UMF5N, UMF5NTR, UMF6

Table of contents:
Info of UMF5N
Info of UMF5NTR
Info of UMF6

UMF5N, UMF5NTR, UMF6 Selling Leads, Datasheet

MFG:Rohm Semiconductor(VA) Category:Discrete Semiconductor Products Package Cooled:SOT363 D/C:09+

UMF5N, UMF5NTR, UMF6 Datasheet download

Five Points

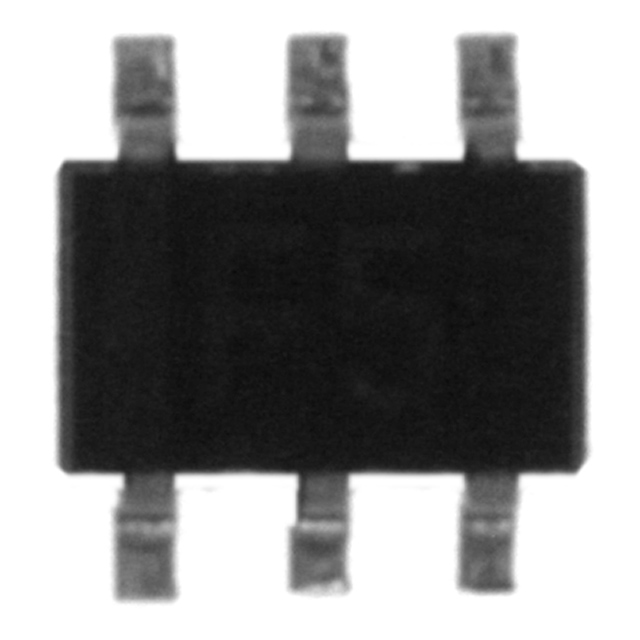

Part Number: UMF5NTR

Category: Discrete Semiconductor Products

MFG: Rohm Semiconductor(VA)

Package Cooled: SOT363

D/C: 09+

Description: TRANS DUAL PNP 12V 500MA SOT-363

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

UMF5N General Description

2SA2018 and DTC144EE are housed independently in a UMT package.

UMF5N Maximum Ratings

Parameter	Limits	SYMBOL	UNIT
Collector-Base Voltage	−15	V_CBO	Vdc
Collector-Emitter Voltage	−12	V_CEO	Vdc
Emitter-base voltage	−6	I_C	mA*1
Collector current	−500	I_C	mA
Collector current	−1.0	I_CP	A*1
Junction temperature	150	mΩ	°C
Power dissipation	150(TOTAL)	PC	mW∗2
Range of storage temperature	−55~+150	Tstg	°C

UMF5N Features

1) Power switching circuit in a single packag
2) Mounting cost and area can be cut in ha

UMF5N Typical Application

Power management circuit

UMF5NTR Parameters

Technical/Catalog Information	UMF5NTR
Vendor	Rohm Semiconductor(VA)
Category	Discrete Semiconductor Products
Transistor Type	1 NPN, 1 PNP - Pre-Biased (Dual)
Voltage - Collector Emitter Breakdown (Max)	12V, 50V
Current - Collector (Ic) (Max)	100mA, 1A
Power - Max	150mW
Resistor - Base (R1) (Ohms)	47K
Resistor - Emitter Base (R2) (Ohms)	47K
Vce Saturation (Max) @ Ib, Ic	250mV @ 10mA, 200mA / 300mV @ 500A, 10mA
Current - Collector Cutoff (Max)	-
DC Current Gain (hFE) (Min) @ Ic, Vce	270 @ 10mA, 2V / 68 @ 5mA, 5V
Frequency - Transition	250MHz, 260MHz
Mounting Type	Surface Mount
Package / Case	SC-70-6, SC-88, SOT-323-6, SOT-363
Packaging	Digi-Reel?
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	UMF5NTR UMF5NTR UMF5NDKR ND UMF5NDKRND UMF5NDKR
