US5U29, US5U30, US5U30TR Datasheet download
Category: Discrete Semiconductor Products
MFG: Rohm Semiconductor(VA)
Package Cooled: TUMT5
D/C: 08+PB-FREE
Description: MOSFET P-CH 20V 1A TUMT5
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: US5U29
File Size: 99066 KB
Manufacturer: ROHM [Rohm]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: US5U30
File Size: 74068 KB
Manufacturer: ROHM [Rohm]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: US50A
File Size: 157326 KB
Manufacturer: MICROSEMI [Microsemi Corporation]
Download : Click here to Download
| Parameter |
Symbol |
Limits |
Unit |
| Drain−source voltage |
VDSS |
-20 |
V |
| Gate−source voltage |
VGSS |
±12 |
V |
| Drain current Continuous |
ID |
±1 |
A |
| Pulsed |
IDP |
±4 |
APW 10s DUTY CYCLE 1% |
| Source current Continuous (Body diode) Pulsed |
IS ISP |
−0.4 −4 |
APW 10s DUTY CYCLE 1% |
| Channel temperature | Tch | 150 | C |
| Repetitive peak reverse voltage | VRM | 25 | V |
| Reverse voltage | VR | 20 | V |
| Forward current | IF | 0.7 | A |
| Forward current surge peak | IFSM | 3.0 | A W/TOTAL/MOUNTED ON A CERAMIC BOARD |
| Junction temperature |
Tj |
150 |
°C |
| Total power dissipation | PD | 1.0 | W/TOTAL/MOUNTED ON A CERAMIC BOARD |
| Range of storage temperature |
Tstg |
−55 to +125 |
°C |
| Parameter |
Symbol |
Limits |
Unit |
| Drain−source voltage |
VDSS |
-20 |
V |
| Gate−source voltage |
VGSS |
±12 |
V |
| Drain current Continuous |
ID |
±1 |
A |
| Pulsed |
IDP |
±4 |
APW 10s DUTY CYCLE 1% |
| Source current Continuous (Body diode) Pulsed |
IS ISP |
−0.4 −4 |
APW 10s DUTY CYCLE 1% |
| Channel temperature | Tch |
150 |
C |
| Repetitive peak reverse voltage | VRM |
25 |
V |
| Reverse voltage | VR |
20 |
V |
| Forward current | IF |
0.7 |
A |
| Forward current surge peak | IFSM |
3.0 |
A W/TOTAL/MOUNTED ON A CERAMIC BOARD |
| Junction temperature |
Tj |
150 |
°C |
| Total power dissipation | PD |
1.0 |
W/TOTAL/MOUNTED ON A CERAMIC BOARD |
| Range of storage temperature |
Tstg |
−55 to +125 |
°C |

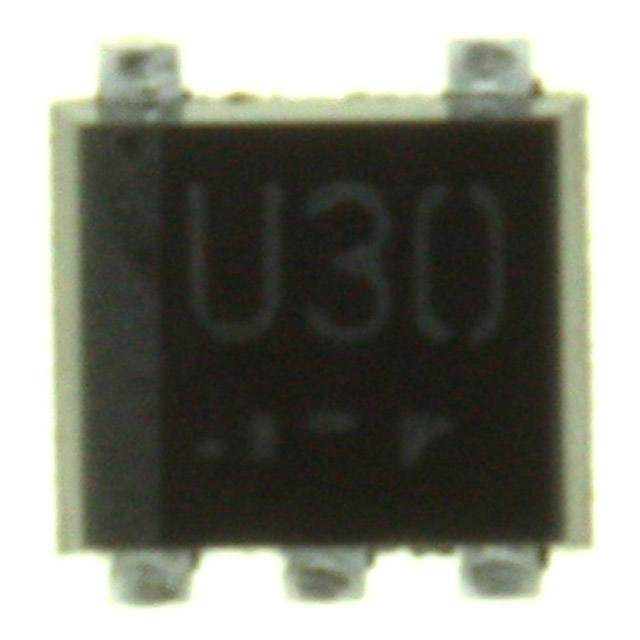

| Technical/Catalog Information | US5U30TR |
| Vendor | Rohm Semiconductor(VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | P-Channel |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25° C | 1A |
| Rds On (Max) @ Id, Vgs | 390 mOhm @ 1A, 4.5V |
| Input Capacitance (Ciss) @ Vds | 150pF @ 10V |
| Power - Max | 700mW |
| Packaging | Cut Tape (CT) |
| Gate Charge (Qg) @ Vgs | 2.1nC @ 4.5V |
| Package / Case | TUMT5 |
| FET Feature | Diode (Isolated) |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | US5U30TR US5U30TR US5U30CT ND US5U30CTND US5U30CT |
