• Ultra-compact insulation displacement connector 1.0mm (.039") pitch and only 3.0mm (.118") high (side entry type). This connector is only about 61% as large as the smallest conventional (JST) IDC designs. • Header designed for vacuum pick and place robotics Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely effect vacuum grippig equipment. Since there is enough flat surface for secure vacuum gripping, this miniature surface mount connector is versatile for designers and economic for manufacturing. • Twin U-slot insulation displacement section The insulation displacement section connected to each wire consists of two tin-plated slots (twin U-slots), which ensures reliable connection. • 3-point grip construction The 3-point insulation grip feature and the strain relief ensure a firm grip on terminated wires and protection of the insulation displacement connection from possible damage.

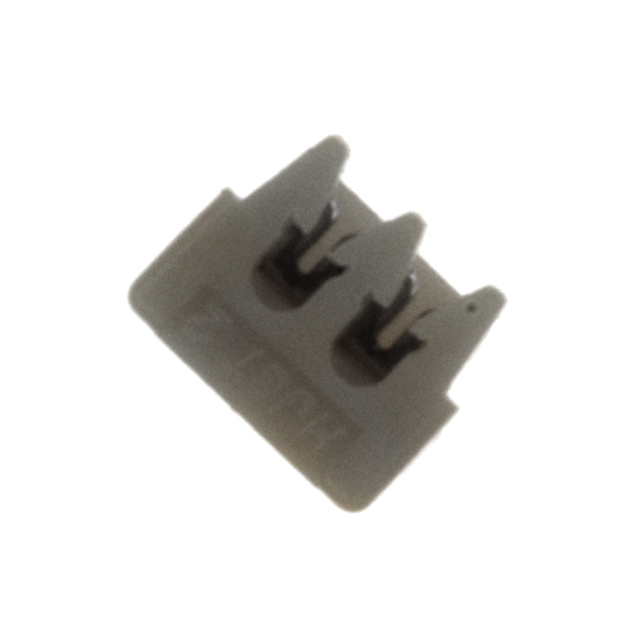

02SR-3S Typical Application
• Current rating: 0.7A DC • Voltage rating: 50V DC • Temperature range: -25°C to +85°C(including temperature rise in applying electrical current) • Contact resistance: Initial value/20m Ω max. After environmental testing/40m Ω max. • Insulation resistance: 100M Ω min. • Withstanding voltage: 500V AC/minute • Applicable wire: AWG #30 Conductor/7 strands, tin-coated annealed copper Insulation O.D./0.56mm (.022") * Contact JST for details.
02SUR-32S Parameters
Technical/Catalog Information
02SUR-32S
Vendor
JST Sales America Inc
Category
Connectors
Color
Natural
Connector Type
Receptacle
Contact Finish
Tin
Features
Closed End
Mounting Type
Free Hanging (In-Line)
Number of Rows
1
Pitch
0.031" (0.80mm)
Row Spacing
-
Packaging
Bulk
Fastening Type
-
Contact Finish Thickness
-
Number of Positions
2
Wire Type
Discrete
Contact Type
Female Socket
Wire Gauge
32 AWG
Cable Termination
IDC
Lead Free Status
Lead Free
RoHS Status
RoHS Compliant
Other Names
02SUR 32S 02SUR32S 455 2176 ND 4552176ND 455-2176
02SUR-32S Features
• 3-point grip construction The 3-point insulation grip feature and the strain relief ensure a firm grip on terminated wires and protection of the insulation displacement connection from possible damage. • Super fine wires are applicable Applicable wire is of AWG #32 with only 0.38mm (.015") O.D.With this super fine wire, routing of wires is easy." • Shrouded header The header is fully shrouded, but remains thin. • Twin U-slot insulation displacement section The insulation displacement section connected to each wire consists of two tin-plated slots (twin U-slots), which ensures reliable connection.
