5310, 531002B02500G, 53101-1S2

Table of contents:
Info of 5310
Info of 531002B02500G
Info of 53101-1S2

5310, 531002B02500G, 53101-1S2 Selling Leads, Datasheet

MFG:Aavid Thermalloy Category:Fans, Thermal Management Package Cooled:SMD-8 D/C:06+

5310, 531002B02500G, 53101-1S2 Datasheet download

Five Points

Part Number: 531002B02500G

Category: Fans, Thermal Management

MFG: Aavid Thermalloy

Package Cooled: SMD-8

D/C: 06+

Description: HEATSINK TO-220 W/PINS 1" TALL

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

531002B02500G Parameters

Technical/Catalog Information	531002B02500G
Vendor	Aavid Thermalloy
Category	Fans, Thermal Management
Attachment Method	Bolt On and PC Pin
Height	1" (25.4mm)
Material	Aluminum
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	2W @ 30°C
Thermal Resistance @ Forced Air Flow	4°C/W @ 400 LFM
Outline	34.92mm x 12.70mm
Thermal Resistance @ Natural	13.4°C/W
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	531002B02500G 531002B02500G HS351 ND HS351ND HS351

531002B02500G General Description

Thermal Resistance

13.40

Thermal resistance value is based on a 75C rise in natural convection

531002B02500G Maximum Ratings

Part #	Description	Finish	Board Mounting

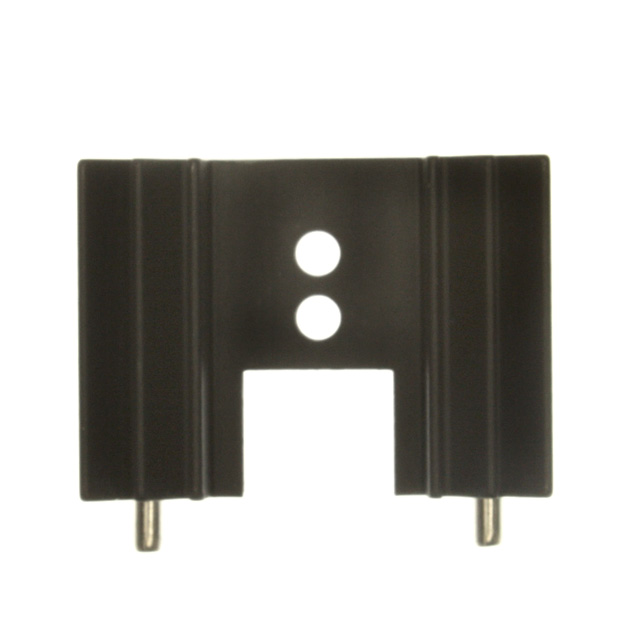

531002B02500G	Extruded heat sink with radial fins and notched base and solderable pins	Black Anodize	View Hole Dimensions
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.

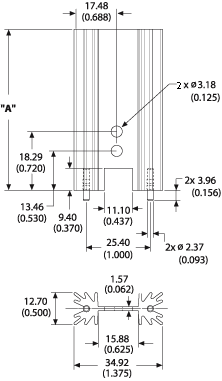

531002B02500G Connection Diagram
