MFG:Analog Devices Inc Category:Integrated Circuits (ICs) Package Cooled:06+ D/C:192
AD5582YRV-REEL, AD5582YRVZ, AD5582YRVZ-REEL Datasheet download
Category: Integrated Circuits (ICs)
MFG: Analog Devices Inc
Package Cooled: 06+
D/C: 192
Description: IC DAC 12BIT PARALLEL IN 48TSSOP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: AD500-9
File Size: 220693 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: AD500-9
File Size: 220693 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: AD500-9
File Size: 220693 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
| Technical/Catalog Information | AD5582YRVZ |
| Vendor | Analog Devices Inc |
| Category | Integrated Circuits (ICs) |
| Data Interface | Parallel |
| Number of Bits | 12 |
| Operating Temperature | -40°C ~ 125°C |

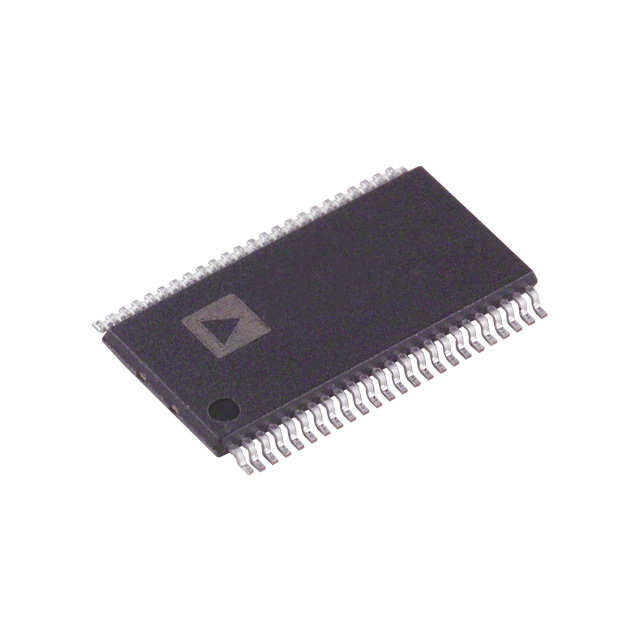

| Package / Case | 48-TSSOP |
| Packaging | Tube |
| Voltage Supply Source | Analog and Digital, Dual ± |
| Settling Time | 5μs |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | AD5582YRVZ AD5582YRVZ |
The AD5582YRVZ is one kind of quad, 12-/10-bit, voltage-output digital-to-analog converter that designed to operate from a single +5 to +15 volt or a dual ±5V supply.It is specified over the extended industrial (-40°C to +125°C) temperature range. Packages available include thin 1.1 mm TSSOP-48 package. Also it can be used in (1)process control equipment; (2)closed loop servo control; (3)data acquisition systems; (4)digitally controlled calibration; (5)motor control; (6)optical network control loops.
Features of the AD5582YRVZ are:(1)12-bit linearity and monotonic –40oc to +125oc; (2)single +5v to +12v or dual ±5v supply; (3)unipolar or bipolar opera-tion; (4)double buffered registers enable simultaneous multi-channels update; (5)4 separate rail-to rail reference inputs; (6)parallel interface; (7)data readback capability; (8)5μs settling time.
The absolute maximum ratings of the AD5582YRVZ can be summarized as:(1)storage temperature range:-65°C to +150°C;(2)operating temperature range:-40°C to +125°C;(3)maximum junction temperature:150°C;(4)thermal resistance θJA TSSOP-48 lead (RU-48):xxx°C/W;(5)logic inputs to GND:VSS-0.3V to VDD+0.3V;(6)VDD to Vss:-0.3V to +16.5V;(7)VDD to GND:-0.3V to 5.5V;(8)Vss to GND:+0.3V to -5.5V;(9)VREF- to Vss:-0.3V to (VDD-Vss);(10)VDD to VREF+:-0.3V to (VDD-Vss).If you want to know more information such as the electrical characteristics about the AD5582YRVZ,please download the datasheet in www.seekic.com or www.chinaicmart.com .
| Technical/Catalog Information | AD5582YRVZ-REEL |
| Vendor | Analog Devices Inc |
| Category | Integrated Circuits (ICs) |
| Data Interface | Parallel |
| Number of Bits | 12 |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 48-TSSOP |
| Packaging | Tape & Reel (TR) |
| Voltage Supply Source | Analog and Digital, Dual ± |
| Settling Time | 5μs |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | AD5582YRVZ REEL AD5582YRVZREEL |
