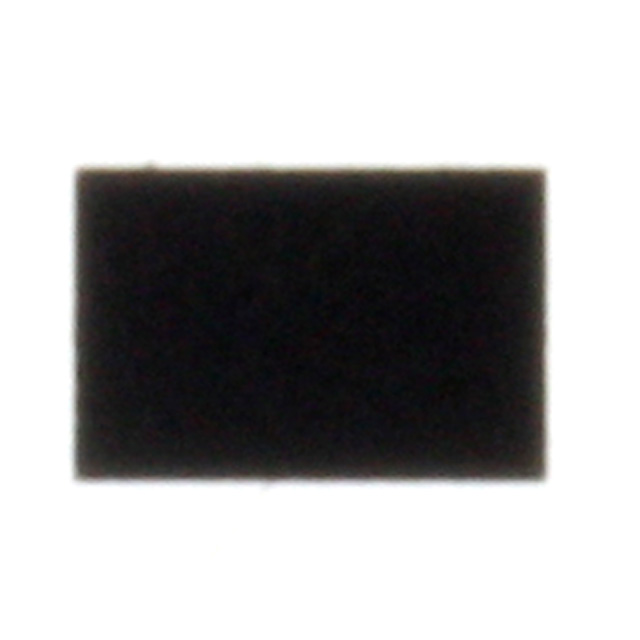

ADG723ACPZ-REEL7 Picture

ADG723, ADG723ACPZ-REEL, ADG723ACPZ-REEL7 Datasheet download

Five Points

Part Number: ADG723ACPZ-REEL7

Category: Integrated Circuits (ICs)

MFG: Analog Devices Inc (VA)

Package Cooled: N/A

D/C: 09+

Description: IC SW DUAL SPST 1.8/5.5V 8LFCSP






Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


Top Sellers:

TOP

ADG723 Suppliers

More ADG723 Suppliers

Select All

  • ADG723BRM

  • Vendor: ADI Pack: SOP D/C: 05+& Qty: 987 Note: .  Adddate: 2024-03-29
  • Inquire Now
  • Wahkitsing (HK) Trading Co.   China
    Contact: Ms.sharonyang   MSN:sharon_wks@hotmail.com
    Tel: 86-755-83249696
    Fax: 86-755-83298768
    (31)
  • ADG723BRM

  • Vendor: ADI D/C: 06+& Qty: 3,356 Note: new and original  Adddate: 2024-03-29
  • Inquire Now
  • Kinstar Electronics Company   China
    Contact: Ms.Zhang   MSN:lemonmiao123@hotmail.com
    Tel: 86-10-82665868
    Fax: 86-10-82665867
    (3)
  • ADG723BRM

  • Vendor: ADI  Adddate: 2024-03-29
  • Inquire Now
  • Mondo Electronics   Australia
    Contact: Mr.JeremyPanton
    Tel: 61-08-9330 9000
    Fax: 61-08-9330 7000
    (4)

About ADG723

PDF/DataSheet Download

Datasheet: ADG723

File Size: 466759 KB

Manufacturer: AD

Download : Click here to Download

Related PDF Download

Related Part Number

ADG723ACPZ-REEL Suppliers

More ADG723ACPZ-REEL Suppliers

Select All

  • ADG1204YCPZ-REEL7

  • Vendor: ADI Pack: QFN D/C: 06+& Qty: 1460 Note: Original  Adddate: 2024-03-29
  • Inquire Now
  • First IC   China
    Contact: Mr.hary ho
    Tel: 86-021-13764939
    Fax:
    (4)
  • ADG1211

  • Vendor: ADI Qty: 1  Adddate: 2024-03-29
  • Inquire Now
  • HYHD electronic LTD.   China
    Contact: Mr.FRANK   MSN:FRANKL04@HOTMAIL.COM
    Tel: 086-010-82375981
    Fax: 086-010-82371390
    (1)

About ADG1204

PDF/DataSheet Download

Datasheet: ADG1204

File Size: 464641 KB

Manufacturer: AD [Analog Devices]

Download : Click here to Download

Related PDF Download

Related Part Number

ADG723ACPZ-REEL7 Suppliers

More ADG723ACPZ-REEL7 Suppliers

Select All

  • ADG1204YCPZ-REEL7

  • Vendor: ADI Pack: QFN D/C: 06+& Qty: 1460 Note: Original  Adddate: 2024-03-29
  • Inquire Now
  • First IC   China
    Contact: Mr.hary ho
    Tel: 86-021-13764939
    Fax:
    (4)
  • ADG1211

  • Vendor: ADI Qty: 1  Adddate: 2024-03-29
  • Inquire Now
  • HYHD electronic LTD.   China
    Contact: Mr.FRANK   MSN:FRANKL04@HOTMAIL.COM
    Tel: 086-010-82375981
    Fax: 086-010-82371390
    (1)

About ADG1204

PDF/DataSheet Download

Datasheet: ADG1204

File Size: 464641 KB

Manufacturer: AD [Analog Devices]

Download : Click here to Download

Related PDF Download

Related Part Number

ADG723 General Description

The ADG721, ADG722, and ADG723 are monolithic CMOS SPST switches. These switches are designed on an advanced submicron process that provides low power dissipation yet gives high switching speed, low on resistance, and low leakage currents.

The ADG721, ADG722, and ADG723 are designed to operate from a single 1.8 V to 5.5 V supply, making them ideal for use in battery-powered instruments and with the new generation of DACs and ADCs from Analog Devices.

The ADG721, ADG722, and ADG723 contain two independent single-pole/single-throw (SPST) switches. The ADG721 and ADG722 differ only in that both switches are normally open and normally closed, respectively. While in the ADG723, Switch 1 is normally open and Switch 2 is normally closed.

Each switch of the ADG721, ADG722, and ADG723 conducts equally well in both directions when on. The ADG723 exhibits break-before-make switching action.

ADG723 Maximum Ratings

VDD to GND . . . . . . . . . . . . . . . . . . . . . .. . . . . 0.3 V to +7 V
Analog, Digital Inputs2 . . . . . . . . . . 0.3 V to VDD + 0.3 V or
                                               30 mA, Whichever Occurs First
Continuous Current, S or D . . . . . . . . . . . . . . . . . . . . . 30 mA
Operating Temperature Range
  Industrial (B Version) . . . . . . . . . . . . . . . . . 40°C to +85°C
Storage Temperature Range . . . . . . . . . . . 65°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . +150°C
MSOP Package, Power Dissipation . . . . . . . . . . .. . . . 450 mW
  JA Thermal Impedance . . . . . . . . . . . . . . . .. . . . . 206°C/W
  JC Thermal Impedance . . . . . . . . . . . . . . . . . . .. . . 44°C/W
Lead Temperature, Soldering
  Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . . .  . . . 215°C
  Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 220°C
ESD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .. . . . . 2 kV

ADG723 Features

1.8 V to 5.5 V Single Supply
4 (Max) On Resistance
Low On Resistance Flatness
3 dB Bandwidth >200 MHz
Rail-to-Rail Operation
8-Lead MSOP Package
Fast Switching Times
   tON 20 ns
   tOFF 10 ns
Low Power Consumption (<0.1 W)
TTL/CMOS Compatible


ADG723 Typical Application

USB 1.1 Signal Switching Circuits
Cell Phones
PDAs
Battery-Powered Systems
Communication Systems
Sample Hold Systems
Audio Signal Routing
Video Switching
Mechanical Reed Relay Replacement

ADG723 Connection Diagram

ADG723ACPZ-REEL Parameters

Technical/Catalog InformationADG723ACPZ-REEL
VendorAnalog Devices Inc
CategoryIntegrated Circuits (ICs)
TypeSwitch
Voltage Supply SourceSingle Supply
Voltage - Supply, Single/Dual (±)1.8 V ~ 5.5 V
Circuit1 x SPST- NC
On-State Resistance4 Ohm
Mounting TypeSurface Mount
Package / Case8-LFCSP
PackagingTape & Reel (TR)
Current - Supply0.001A
Operating Temperature-40°C ~ 85°C
FunctionSwitch
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names ADG723ACPZ REEL
ADG723ACPZREEL

ADG723ACPZ-REEL7 Parameters

Technical/Catalog InformationADG723ACPZ-REEL7
VendorAnalog Devices Inc (VA)
CategoryIntegrated Circuits (ICs)
TypeSwitch
Voltage Supply SourceSingle Supply
Voltage - Supply, Single/Dual (±)1.8 V ~ 5.5 V
Circuit1 x SPST- NC
On-State Resistance4 Ohm
Mounting TypeSurface Mount
Package / Case8-LFCSP
PackagingDigi-Reel?
Current - Supply0.001A
Operating Temperature-40°C ~ 85°C
FunctionSwitch
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names ADG723ACPZ REEL7
ADG723ACPZREEL7
ADG723ACPZ REEL7DKR ND
ADG723ACPZREEL7DKRND
ADG723ACPZ-REEL7DKR
