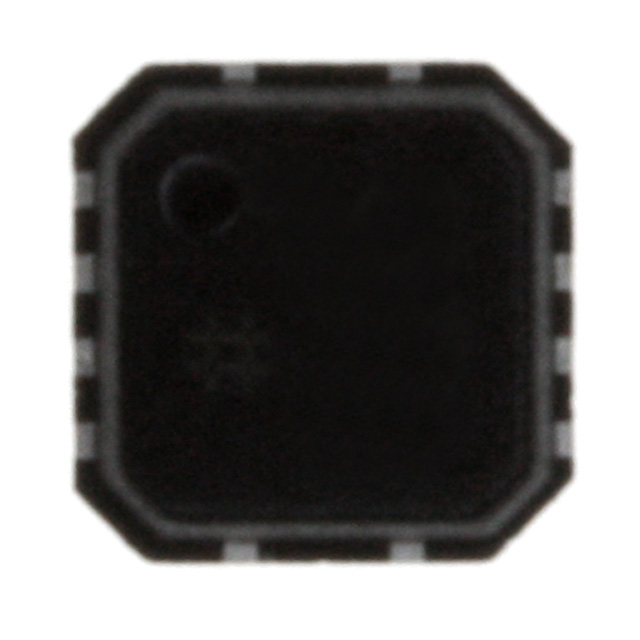

The ADP2105/ADP2106/ADP2107 are low quiescent current, synchronous, step-down dc-to-dc converters in a compact 4 mm * 4 mm LFCSP_VQ package. At medium to high load currents, these devices use a current-mode, constant-frequency pulse-width modulation (PWM) control scheme for excellent stability and transient response. To ensure the longest battery life in portable applications, the ADP2105/ADP2106/ADP2107 use a pulse frequency modulation (PFM) control scheme under light load conditions that reduces switching frequency to save power.
The ADP2105/ADP2106/ADP2107 run from input voltages of 2.7 V to 5.5 V, allowing single Li+/Li− polymer cell, multiple alkaline/NiMH cells, PCMCIA, and other standard power sources. The output voltage of ADP2105/ADP2106/ADP2107-ADJ is adjustable from 0.8 V to the input voltage, whereas the ADP2105/ADP2106/ADP2107-xx are available in preset output voltage options of 3.3 V, 1.8 V, 1.5 V, and 1.2 V. Each of these variations is available in three maximum current levels, 1 A (ADP2105), 1.5 A (ADP2106), and 2 A (ADP2107). The power switch and synchronous rectifier are integrated for minimal external part count and high efficiency. During logic-controlled shutdown, the input is disconnected from the output, and it draws less than 0.1 A from the input source. Other key features include undervoltage lockout to prevent deep battery discharge and programmable soft start to limit inrush current at startup.
ADP2105 Maximum Ratings
Parameter
Rating
IN, EN, SS, COMP, OUT_SENSE/FB to AGND
−0.3 V to +6 V
LX1, LX2 to PGND
−0.3 V to (VIN + 0.3 V)
PWIN1, PWIN2 to PGND
−0.3 V to +6 V
PGND to AGND
−0.3 V to +0.3 V
GND to AGND
−0.3 V to +0.3 V
PWIN1, PWIN2 to IN
−0.3 V to +0.3 V
Operating Junction Temperature Range
−40°C to +125°C
Storage Temperature Range
−65°C to +150°C
Soldering Conditions
JEDEC J-STD-020
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
ADP2105 Features
`Extremely high 97% efficiency `Ultralow quiescent current: 20 A `1.2 MHz switching frequency `0.1 A shutdown supply current `Maximum load current: ADP2105: 1 A ADP2106: 1.5 A ADP2107: 2 A `Input voltage: 2.7 V to 5.5 V `Output voltage: 0.8 V to VIN `Maximum duty cycle: 100% `Smoothly transitions into low dropout (LDO) mode `Internal synchronous rectifier `Small 16-lead 4 mm * 4 mm LFCSP_VQ package `Optimized for small ceramic output capacitors `Enable/shutdown logic input `Undervoltage lockout `Soft start
ADP2105 Typical Application
·Mobile handsets ·PDAs and palmtop computers ·Telecommunication/networking equipment ·Set top boxes ·Audio/video consumer electronics
