Purchase ADP1109, In-stock ADP1109 From SeekIC.
MFG:AD Package Cooled:SOP
Part Number: ADP1109
MFG: AD
Package Cooled: SOP
Description: The ADP1109 is a versatile step-up switching regulator. The device requires only minimal external comp...
- Table of contents:
ADP1109
-
Suppliers
DataSheet
General Description
ADP1109 General Description
The ADP1109 is a versatile step-up switching regulator. The device requires only minimal external components to operate as a complete switching regulator. The ADP1109-5 can deliver 100 mA at 5 V from a 3 V input and the ADP1109-12 can deliver 60 mA at 12 V from a 5 V input. The device also features a logic controlled shutdown capability that, when a logic low is applied, will shut down the oscillator. The 120 kHz operating frequency allows for the use of small
surface mount components. The gated oscillator capability eliminates the need for frequency compensation.
ADP1109 Maximum Ratings
Supply Voltage, VOUT . . . . . . . . . . . . . . . . . . . 0.4 V to 20 V
SW Pin Voltage . . . . . . . . . . . . . . . . . . . . . . . . 0.4 V to 50 V
Shutdown Pin Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . 6.0 V
Switch Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2 A
Maximum Power Dissipation . . . . . . . . . . . . . . . . . . 300 mW
Operating Temperature Range . . . . . . . . . . . . 0°C to +70°C
Storage Temperature Range . . . . . . . . . . . 65°C to +150°C
Lead Temperature (Soldering, 10 sec) . . . . . . . . . . . +300°C
SW Pin Voltage . . . . . . . . . . . . . . . . . . . . . . . . 0.4 V to 50 V
Shutdown Pin Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . 6.0 V
Switch Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2 A
Maximum Power Dissipation . . . . . . . . . . . . . . . . . . 300 mW
Operating Temperature Range . . . . . . . . . . . . 0°C to +70°C
Storage Temperature Range . . . . . . . . . . . 65°C to +150°C
Lead Temperature (Soldering, 10 sec) . . . . . . . . . . . +300°C
ADP1109 Features
Operates at Supply Voltages 2 V to 12 V
Fixed 3.3 V, 5 V, 12 V and Adjustable Output
Minimum External Components Required
Ground Current: 320 mA
Oscillator Frequency: 120 kHz
Logic Shutdown
8-Lead DIP and SO-8 Packages
Fixed 3.3 V, 5 V, 12 V and Adjustable Output
Minimum External Components Required
Ground Current: 320 mA
Oscillator Frequency: 120 kHz
Logic Shutdown
8-Lead DIP and SO-8 Packages
ADP1109 Typical Application
Cellular Telephones
Single-Cell to 5 V Converters
Laptop and Palmtop Computers
Pagers
Cameras
Battery Backup Supplies
Portable Instruments
Laser Diode Drivers
Hand-Held Inventory Computers
Single-Cell to 5 V Converters
Laptop and Palmtop Computers
Pagers
Cameras
Battery Backup Supplies
Portable Instruments
Laser Diode Drivers
Hand-Held Inventory Computers

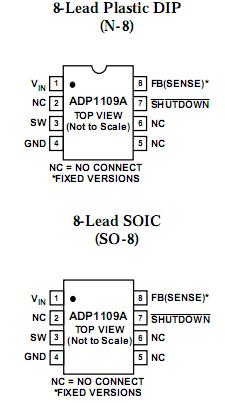

ADP1109 Connection Diagram
ADP1109
