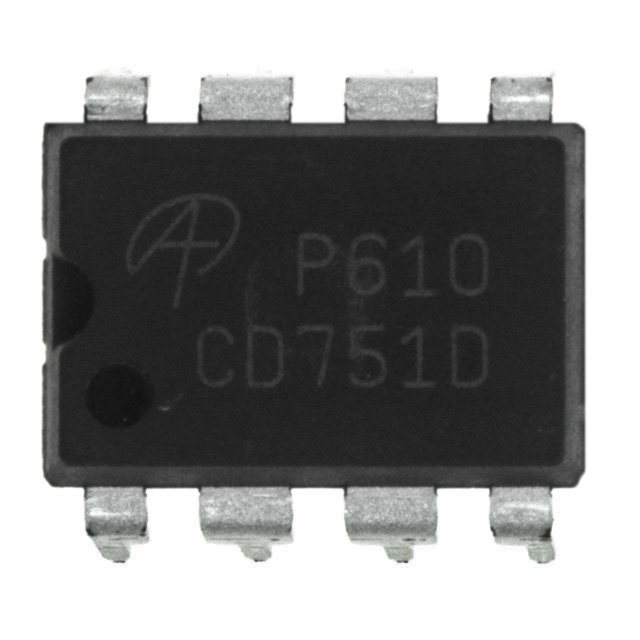

AOP610, AOP611, AOP800 Datasheet download
Category: Discrete Semiconductor Products
MFG: Alpha & Omega Semiconductor Inc
Package Cooled: PDIP-8
D/C: N/A
Description: MOSFET N/P-CH COMPL 30V 8-PDIP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: AOP610
File Size: 466944 KB
Manufacturer: ALPHA
Download : Click here to Download
PDF/DataSheet Download
Datasheet: AOP-12D
File Size: 232527 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: AOP800
File Size: 471040 KB
Manufacturer: ALPHA
Download : Click here to Download
| Technical/Catalog Information | AOP610 |
| Vendor | Alpha & Omega Semiconductor Inc |
| Category | Discrete Semiconductor Products |
| Mounting Type | Through Hole |
| FET Polarity | N and P-Channel |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25° C | 7.7A, 6.2A |
| Rds On (Max) @ Id, Vgs | 24 mOhm @ 7.7A, 10V |
| Input Capacitance (Ciss) @ Vds | 630pF @ 15V |
| Power - Max | 2.3W |
| Packaging | Tube |
| Gate Charge (Qg) @ Vgs | 15nC @ 10V |
| Package / Case | 8-DIP |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | AOP610 AOP610 785 1143 5 ND 78511435ND 785-1143-5 |
The AOP611 uses advanced trench technology MOSFETs to provide excellen RDS(ON) and low gate charge. The complementary MOSFETs may be used in H-bridge, Inverters and other applications. Standard Product AOP611 is Pb-free (meets ROHS & Sony 259 specifications). AOP611L is a Green Product ordering option. AOP611 and AOP611L are electrically identical.
| Parameter | Symbol | Max n-channel | Max p-channel | Units | |
| Drain-Source Voltage | VDS | 40 | -40 | V | |
| Gate-Source Voltage | VGS | ±20 | ±20 | V | |
| Continuous Drain Current A |
TA=25 | ID | 6.5 |
-5.5 | A |
| TA=70 | 5.3 | -4.4 | |||
| Pulsed Drain Current B | IDM | 30 | -25 | ||
| Power Dissipation | TA=25 | PD | 2.5 | 2.5 | W |
| TA=70 | 1.6 | 1.6 | |||
| Avalanche Current B | IAR | 13 | 17 | A | |
| Repetitive avalanche energy 0.3mH B | EAR | 25 | 43 | mJ | |
| Junction and Storage Temperature Range | TJ, TSTG | -55 to 150 | -55 to 150 | ||
The AOP800 uses advanced trench technology to provide excellent R DS(ON) and low gate charge. Thisdevice is suitable for use as a load switch or in PWM applications. Standard Product AOP800 is Pb-free (meets ROHS & Sony 259 specifications). AOP800L is a Green Product ordering option. AOP800 and AOP800L are electrically identical.
Parameter |
Symbol |
Maximum |
Units |
|
| Drain-Source Voltage | VDS |
30 |
V |
|
| Gate-Source Voltage | VGS |
±20 |
V |
|
| Continuous Drain Current A |
TA=25°C | ID |
9.3 |
A |
| TA=100°C | 7.5 |
|||
| Pulsed Drain Current B | IDM |
40 |
||
| Power Dissipation A | TA=25°C | PDSM |
2.5 |
W |
| TA=100°C | 1.6 |
|||
| Junction and Storage Temperature Range | TJ,TSTG |
-55 to 150 |
°C |
|
