AQY275AZ, AQY277A, AQY277AX

Table of contents:
Info of AQY275AZ
Info of AQY277A
Info of AQY277AX

AQY275AZ, AQY277A, AQY277AX Selling Leads, Datasheet

MFG:Panasonic Electric Works Category:Relays Package Cooled:N/A D/C:2010+

AQY275AZ, AQY277A, AQY277AX Datasheet download

Five Points

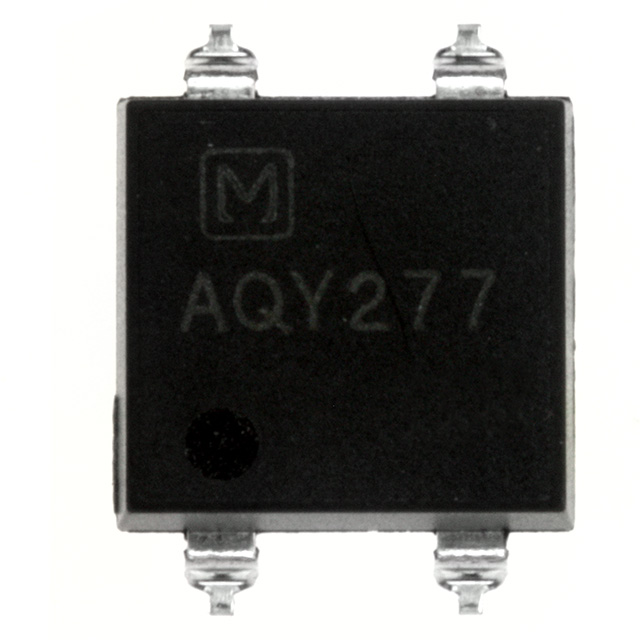

Part Number: AQY277A

Category: Relays

MFG: Panasonic Electric Works

Package Cooled: N/A

D/C: 2010+

Description: RELAY OPTO AC/DC 200V 0.65A 4SMD

Price Break

1000

Unit Price

7.32250

Extended Price

7322.50

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

AQY275AZ Parameters

Technical/Catalog Information	AQY275AZ
Vendor	Panasonic Electric Works
Category	Relays
Mounting Type	Surface Mount
Termination Style	Gull Wing
Package / Case	4-SMD
Circuit	SPST-NO (1 Form A)
Load Current	1.3A
Voltage - Input	1.25VDC
Voltage - Load	0 ~ 100V
Output Type	AC, DC
On-State Resistance	340 mOhm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AQY275AZ AQY275AZ

AQY277A Parameters

Technical/Catalog Information	AQY277A
Vendor	Panasonic Electric Works
Category	Relays
Mounting Type	Surface Mount
Termination Style	Gull Wing
Package / Case	4-SMD
Circuit	SPST-NO (1 Form A)
Load Current	650mA
Voltage - Input	1.25VDC
Voltage - Load	0 ~ 200 V
Output Type	AC, DC
On-State Resistance	1.1 Ohm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AQY277A AQY277A 255 1566 5 ND 25515665ND 255-1566-5

AQY277A General Description

The AQY277A is designed as one kind of photoMOS replays (1-channel type).It can be used in measuring and testing equipment, IC testers and board testers and high speed inspection machines.Features of the AQY277A are:(1)supports the various types of load control, from very small loads to a maximum 2A at the rated load voltage 60V;(2)low ON resistance:A maximum 2A load can be controlled with a 5mA input curren. The ON resistance is low at 0.11(AQY272).

The absolute maximum ratings of the AQY277A can be summarized as:(1)LED forward current:50 mA;(2)LED reverse voltage:3 V;(3)peak forward current:1 A (f=100 Hz, duty factor=0.1%);(4)power dissipation:75 mW;(5)total power dissipation:750 mW;(6)I/O isolation voltage:2,500 V AC;(7)operating temperture:-40°C to +85°C;(8)storage temperture:-40°C to +100°C:.If you want to know more information such as the electrical characteristics about the AQY277A,please download the datasheet in www.seekic.com or www.chinaicmart.com .

AQY277AX Parameters

Technical/Catalog Information	AQY277AX
Vendor	Panasonic Electric Works
Category	Relays
Mounting Type	Surface Mount
Termination Style	Gull Wing
Package / Case	4-SMD
Circuit	SPST-NO (1 Form A)
Load Current	650mA
Voltage - Input	1.25VDC
Voltage - Load	0 ~ 200 V
Output Type	AC, DC
On-State Resistance	1.1 Ohm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AQY277AX AQY277AX
