AQY210HLA
-
Suppliers
DataSheet
General Description
AQY210HLA Maximum Ratings
| Item |
Symbol |
AQY210HL(A) |
Remarks | |
| Input | LED forward current |
IF |
50 mA |
|
| LED reverse voltage |
VR |
3 V |
||
| Peak forward current |
IFP |
1 A |
f = 100 Hz, Duty factor = 0.1% | |
| Power dissipation |
Pin |
75 mW |
||
| Output | Load voltage (peak AC) |
VL |
350 V |
|
| Continuous load current |
IL |
0.12 A |
||
| Power dissipation |
Pout |
500mW |
||
| Total power dissipation |
PT |
550mW |
||
| I/O isolation voltage |
Viso |
5,000 V AC |
||
| Temperature limits | Operating |
Topr |
40°C to +85°C |
Non-condensing at low temperatures |
| Storage |
Tstg |
40°C to +100°C |
||
AQY210HLA Features
1. Current Limit Function To control an over current from flowing, the current limit function has been realized.
It keeps an output current at a constant value when the current reaches a specified current limit value.
2. Enhancing the capability of surge resistance between output terminals The current limit function controls the ON time surge current to enhance the capability of surge resistance between output terminals.
3. Reinforced insulation 5,000 V type More than 0.4 mm internal insulation distance between inputs and outputs. Conforms to EN41003, EN60950 (reinforced insulation).
4. Compact 4-pin DIP size The device comes in a compact (W)6.4×(L)4.78× (H) 3.2mm (W).252×(L).188(H).126inch, 4-pin DIP size
5. Controls low-level analog signals PhotoMOS relays feature extremely low closed-circuit offset voltage to enable control of low-level analog signals without distortion.
6. High sensitivity, low ON resistance
7. Low-level off state leakage current
It keeps an output current at a constant value when the current reaches a specified current limit value.
2. Enhancing the capability of surge resistance between output terminals The current limit function controls the ON time surge current to enhance the capability of surge resistance between output terminals.
3. Reinforced insulation 5,000 V type More than 0.4 mm internal insulation distance between inputs and outputs. Conforms to EN41003, EN60950 (reinforced insulation).
4. Compact 4-pin DIP size The device comes in a compact (W)6.4×(L)4.78× (H) 3.2mm (W).252×(L).188(H).126inch, 4-pin DIP size
5. Controls low-level analog signals PhotoMOS relays feature extremely low closed-circuit offset voltage to enable control of low-level analog signals without distortion.
6. High sensitivity, low ON resistance
7. Low-level off state leakage current
AQY210HLA Typical Application
• Telephone equipment
• Modem
• Modem
AQY210HLA
PDF/DataSheet Download
- Datasheet: AQY210HLA
- File Size: 48998 KB
- Manufacturer: Nais(Matsushita Electric Works)
- Click here to Download
- ·AQY14
- NAIS [Nais(Matsushita Electric Works)]
- GU (General Use) Type SOP Series 1- Channel (Form B) 4-Pin Type
- 46829 KB
- ·AQY2
- NAIS [Nais(Matsushita Electric Works)]
- PhotoMOS RELAYS
- 141040 KB
- ·AQY210
- NAIS [Nais(Matsushita Electric Works)]
- GU (General Use) Type SOP Series 1- Channel (Form A) 4-Pin Type
- 37918 KB
- ·AQY210EH
- RELAY PHOTOMOS SPNO
- 38691 KB
- ·AQY210EHA
- RELAY PHOTOMOS SPNO
- 38691 KB
- ·AQY210EHAZ
- Nais(Matsushita Electric Works)
- GU (General Use)-E Type 1-Channel (Form A) 4-pin Type
- 51437 KB
- ·AQY210HLAX
- Nais(Matsushita Electric Works)
- GU (General Use) Type 1-Channel (Form A) Current Limit Function 4-Pin Type
- 48998 KB
- ·AQY210HLAZ
- Nais(Matsushita Electric Works)
- GU (General Use) Type 1-Channel (Form A) Current Limit Function 4-Pin Type
- 48998 KB
AQY210HLA Relative Products
AQY210HL
AQY210EHAX

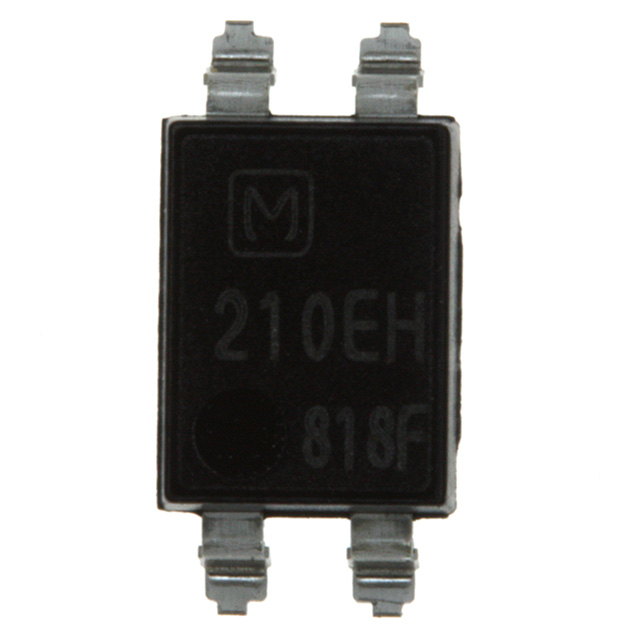

AQY210EHA
