AQZ264, AQZ404, AR 5112-ES

AQZ264, AQZ404, AR 5112-ES Selling Leads, Datasheet

MFG:Panasonic Electric Works  Category:Relays  Package Cooled:N/A  D/C:2010+

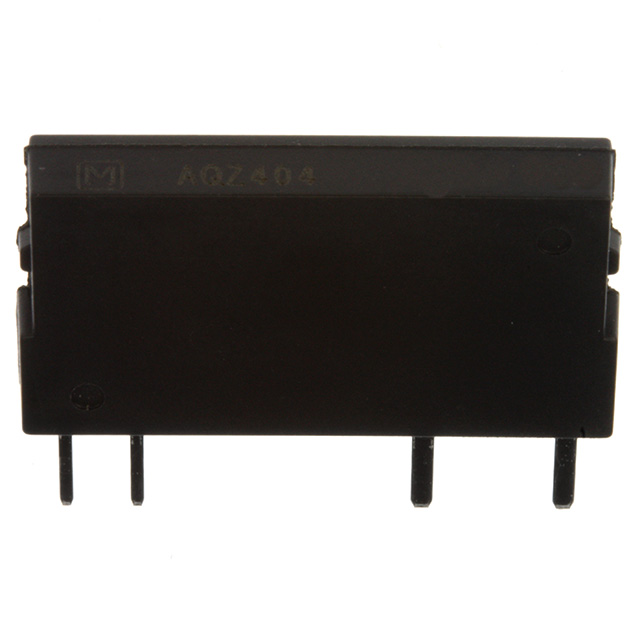

AQZ404 Picture

AQZ264, AQZ404, AR 5112-ES Datasheet download

Five Points

Part Number: AQZ404

Category: Relays

MFG: Panasonic Electric Works

Package Cooled: N/A

D/C: 2010+

Description: RELAY OPTO AC/DC 400V 0.5A 4-SIL






Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


Top Sellers:

TOP

AQZ264 Suppliers

More AQZ264 Suppliers

Select All

  • AQZ102

  • Qty: 25000 Note: New,unused in stock and at lower price in perfect quality!!!  Adddate: 2024-03-28
  • Inquire Now
  • Beijing huadong shiji teconolgy Co.,Lt   China
    Contact: Mr.zimingjiang   MSN:hddz-006@hotmail.com
    Tel: 86-010-62575888 805
    Fax: 86-010-62575899
    (5)

About AQZ102D

PDF/DataSheet Download

Datasheet: AQZ102D

File Size: 91477 KB

Manufacturer: Nais(Matsushita Electric Works)

Download : Click here to Download

Related PDF Download

Related Part Number

AQZ404 Suppliers

More AQZ404 Suppliers

Select All

  • AQZ102

  • Qty: 25000 Note: New,unused in stock and at lower price in perfect quality!!!  Adddate: 2024-03-28
  • Inquire Now
  • Beijing huadong shiji teconolgy Co.,Lt   China
    Contact: Mr.zimingjiang   MSN:hddz-006@hotmail.com
    Tel: 86-010-62575888 805
    Fax: 86-010-62575899
    (5)

About AQZ404

PDF/DataSheet Download

Datasheet: AQZ404

File Size: 75372 KB

Manufacturer: ETC [ETC]

Download : Click here to Download

Related PDF Download

Related Part Number

AR 5112-ES Suppliers

More AR 5112-ES Suppliers

Select All

About

PDF/DataSheet Download

Datasheet:

File Size: KB

Manufacturer:

Download : Click here to Download

Related PDF Download

Related Part Number

AQZ264 Parameters

Technical/Catalog InformationAQZ264
VendorPanasonic Electric Works
CategoryRelays
Mounting TypeThrough Hole
Termination StylePC Pin
Package / Case4-SIP
CircuitSPST-NO (1 Form A)
Load Current1A
Voltage - Input1.25VDC
Voltage - Load0 ~ 400V
Output TypeAC, DC
On-State Resistance1.4 Ohm
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names AQZ264
AQZ264

AQZ404 Parameters

Technical/Catalog InformationAQZ404
VendorPanasonic Electric Works
CategoryRelays
Mounting TypeThrough Hole
Termination StylePC Pin
Package / Case4-SIP
CircuitSPST-NC (1 Form B)
Load Current500mA
Voltage - Input1.25VDC
Voltage - Load0 ~ 400 V
Output TypeAC, DC
On-State Resistance4 Ohm
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names AQZ404
AQZ404
255 2154 5 ND
25521545ND
255-2154-5

AQZ404 Maximum Ratings

Item Symbol AQZ104 Remarks
Input LED forward current IF 50 mA
LED reverse voltage VR 3V
Peak forward current IFP 1 A f = 100 Hz, Duty factor = 0.1%
Power dissipation PIN 75 mW
Output Load voltage(peak AC) VL 400V
Continuous load current(peak AC) IL 0.5 A
Peak load current Ipeak 1.5 A 100 ms (1 shot), VL = DC
Power dissipation Pout 1.6W
Total power dissipation PT 1.6W
I/O isolation voltage VISO 2500V AC
Temperature limits Operating TOPR 40°C to +85°C 40°F to +185°F Non-condensing at low temperatures
Storage TSTG 40°C to +100°C 40°F to +212°F

AQZ404 Features

1. High capacity A maximum 0.5A load can be controlled with a 5 mA input current. The ON resistance is low at 2.8 W (typ.)
2. 1 Form B This has been realized thanks to the builtin MOSFET processed by our proprietary method,DSD(Double-diffused and Selective Doping) method.

3. Compact slim-type 4-pin SIL(W)3.5× (D)21.0× (H)12.5 mm(W).138×(D).827×(H).492 inch×The compact size of the 4-pin SIL package
allows high density mounting.

AQZ404 Typical Application

• Railroad, traffic signals
• Measurement instruments
• Testing equipment
