AS186-302, AS186-302LF, AS186-59

Table of contents:
Info of AS186-302
Info of AS186-302LF
Info of AS186-59

AS186-302, AS186-302LF, AS186-59 Selling Leads, Datasheet

MFG:Skyworks Solutions Inc Category:RF and RFID Package Cooled:MSOP D/C:03*

AS186-302, AS186-302LF, AS186-59 Datasheet download

Five Points

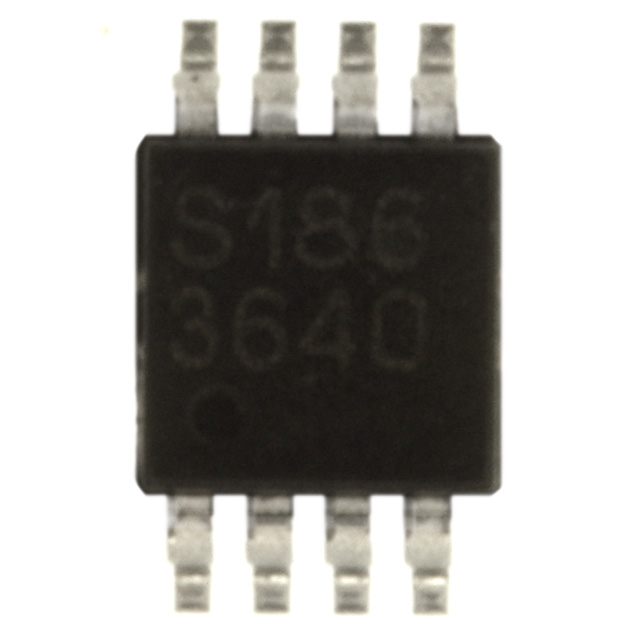

Part Number: AS186-302LF

Category: RF and RFID

MFG: Skyworks Solutions Inc

Package Cooled: MSOP

D/C: 03*

Description: IC SW SPDT LF-4GHZ GAAS 8-MSOP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

AS186-302 General Description

The AS186-302 is a GaAs FET IC SPDT non-reflective switch packaged in a MSOP-8 exposed pad plastic package for low cost, high isolation commercial applications. Ideal building block for base station applications where synthesizer isolation is critical.Typical applications include GSM, PCS, WCDMA, 2.4 GHz ISM and 3.5 GHz wireless local loop.

AS186-302 Maximum Ratings

Characteristic	Value
RF Input Power	1 W Max. > 500 MHz 0/-8 V
Control Voltage	-0.2 V, +8 V
Operating Temperature	-40°C to +85°C
Storage Temperature	-65°C to +150°C
_JC	25°C/W

AS186-302 Features

Positive Voltage Control (0/+3 to 0/+5 V)
High Isolation (55 dB @ 0.9 GHz and 1.9 GHz)
Miniature MSOP-8 Exposed Pad Package
Three Switch Solution for Base Station Synthesizer Switch
Non-Reflective
Operation to 6 GHz

AS186-302 Connection Diagram

AS186-302LF Parameters

Technical/Catalog Information	AS186-302LF
Vendor	Skyworks Solutions Inc
Category	RF and RFID
RF Type	GSM, ISM, PCS, WCDMA
Package / Case	8-MSOP
Frequency	0Hz ~ 4GHz
Features	SPDT
Packaging	Tape & Reel (TR)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AS186 302LF AS186302LF 863 1005 2 ND 86310052ND 863-1005-2

AS186-302LF General Description

GaAs IC High Isolation Positive Control SPDT Non-Reflective Switch DC4.0 GHz

AS186-302LF Maximum Ratings

Positive Voltage Control (0/+3 to 0/+5 V)
High Isolation (55 dB @ 0.9 GHz and 1.9 GHz)
Miniature MSOP-8 Exposed Pad Package
Three Switch Solution for Base Station Synthesizer Switch
Non-Reflective
