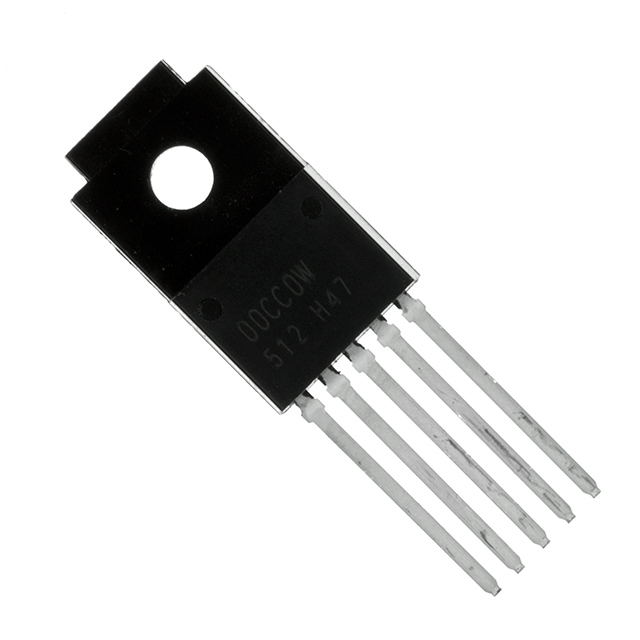

MFG:Rohm Semiconductor Category:Integrated Circuits (ICs) Package Cooled:TO220F-5 D/C:O9+
BA00CC0WT, BA00CC0WT-V5, BA00CCOWFP-E2 Datasheet download
Category: Integrated Circuits (ICs)
MFG: Rohm Semiconductor
Package Cooled: TO220F-5
D/C: O9+
Description: IC REG LDO 1A ADJ SHDN TO220FP-5
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: BA00CC0WT
File Size: 162744 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: BA00CC0WT-V5
File Size: 368078 KB
Manufacturer: ROHM [Rohm]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: BA00
File Size: 367211 KB
Manufacturer:
Download : Click here to Download
| Technical/Catalog Information | BA00CC0WT |
| Vendor | Rohm Semiconductor |
| Category | Integrated Circuits (ICs) |
| Regulator Type | Single Output |
| Package / Case | TO-220-5 Fullpak (Straight Leads) |
| Packaging | Tube |
| Regulator Topology | Positive Adjustable |
| Current - Output | 1A |
| Voltage - Output | 3 ~ 15 V |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Input | 4 ~ 25 V |
| Number of Regulators | 1 |
| Current - Limit (Min) | 1A |
| Current Short Circuit (Isc) | 600mA |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | BA00CC0WT BA00CC0WT |
BA00CC0WFP/WT(-V5) is a variable output LDO regulator IC with the output current of 1A and C pin voltage accuracy of ±2%. Output voltage can be set (3V to 15V) by external resistor. Over-current protection circuit, over-voltage protection circuit and thermal protection circuit are incorporated in this IC. BA00CC0WFP/WT(-V5) incorporates shutdown switch to control output ON/OFF. This IC is perfect for applications with high-voltage requirements and power supply applications.
| Parameter | Symbol | Limits | Unit | |
| Supply voltage | VCC | -0.3 +35 | V | |
| Vc Pin voltage | VCTL | -0.3 ~ Vcc | V | |
| Power dissipation | TO252-5 | Pd | 1300 | mW |
| TO220FP-5 | 2000 | |||
| Operating temperature range | Topr | -40~~+125 | °C | |
| Storage temperature range | Tstg | -55~~+150 | °C | |
| Junction temperature | Tjmax | 150 | °C | |
| Peak supply voltage | VCCPeak | 50 | V | |
