MFG:Rohm Semiconductor Category:Integrated Circuits (ICs) Package Cooled:09+ D/C:TO-
BD899A, BD900, BD9001F-E2 Datasheet download
Category: Integrated Circuits (ICs)
MFG: Rohm Semiconductor
Package Cooled: 09+
D/C: TO-
Description: IC REG SW FLEXIBLE STEPDOWN 8SOP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: BD899A
File Size: 117952 KB
Manufacturer: POINN [Power Innovations Limited]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: BD900
File Size: 446207 KB
Manufacturer: POINN [Power Innovations Limited]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: BD900
File Size: 446207 KB
Manufacturer: POINN [Power Innovations Limited]
Download : Click here to Download
| RATING | SYMBOL | VALUE | UNIT | |
| Collector-base voltage (IE = 0) |
BD895A BD897A BD899A |
VCBO |
45 |
V |
| Collector-emitter voltage (IB = 0) |
BD895A BD897A BD899A |
VCEO |
45 |
V |
| Emitter-base voltage | VEBO |
5 |
V | |
| Continuous collector current | IC |
8 |
A | |
| Continuous base current | IB |
0.3 |
A | |
| Continuous device dissipation at (or below) 25°C case temperature (see Note 2) | Ptot |
70 |
W | |
| Continuous device dissipation at (or below) 25°C free air temperature (see Note 3) | Ptot |
2 |
W | |
| Operating free air temperature range | TA | -65 to +150 | °C | |
| Operating junction temperature range | Tj | -65 to +150 | °C | |
| Storage temperature range | Tstg | -65 to +150 | °C | |

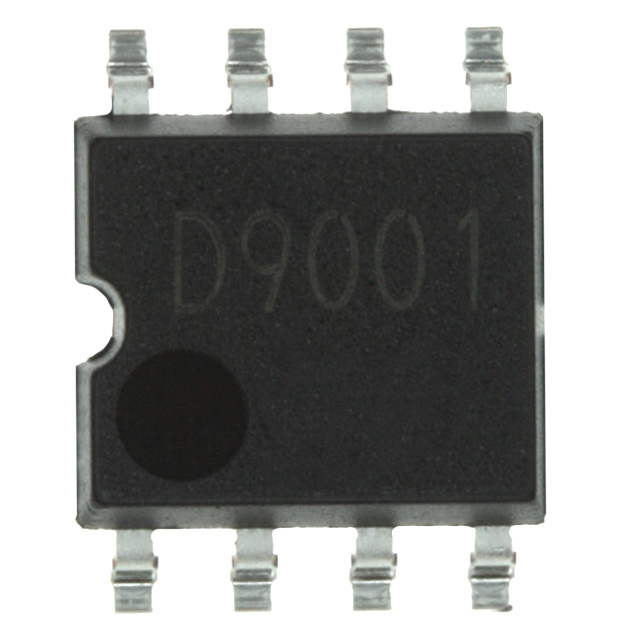

| Technical/Catalog Information | BD9001F-E2 |
| Vendor | Rohm Semiconductor |
| Category | Integrated Circuits (ICs) |
| Type | Step-Down (Buck) |
| Number of Outputs | 1 |
| Voltage - Input | 7 ~ 48 V |
| Voltage - Output | 1 ~ 48 V |
| Current - Output | 2A |
| Power - Output | 690mW |
| Package / Case | 8-SOP |
| Packaging | Tape & Reel (TR) |
| Internal Switch(s) | Yes |
| Synchronous | Yes |
| Rds (On) | 600 mOhm |
| Operating Temperature | -40°C ~ 95°C |
| Frequency - Switching | 50kHz ~ 300kHz |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | BD9001F E2 BD9001FE2 BD9001F E2TR ND BD9001FE2TRND BD9001F-E2TR |
The BD9001F-E2 is a type of silicon monolithic intergrated circuit,flexible step-down switching regulator.features of the BD9001F-E2 are:(1)wide input ranges from 7V to 8V;(2)high precision(reference voltage) is ±20%;(3)intergrated 2AP-ch power MOS FET;(4)adjusted frequency is 50KHz to 300KHz.
The absolute maximum ratings and electrical characeristics the BD9001F-E2 can be summarized as:(1):supply volta ge is 50V;(2):SW pin voltage is VIN V;(3):output SW current is 2A;(4):EN pin voltage is VIN V; (5):RT,FB,INV pin volta ge is 7V;(6):power dissipation is 0.69W;(7):operating temperature ranges from-40 to95 ;(8):storage temperatur e ranges from-55to 150 ;(9):maximum junction temperature is 150.Electrical characeristics:(1):stand-by current is 4uA typ and 10uA max when VEN is 0V and Ta is 25;(2):quiescent current is 3mA tyo and 4.2mA max when IO is 0A;(3):switch on resistance is 0.53 and 0.9 when ISW is 50mA;(4):reference voltage is 0.98V min,1.00V typ and 1.02V max when VFB is VIN and Ta is 25;(5):maximum FB voltage is 2.4V min and 2.5V typ when VINV is 0.5V,maxi mum FB voltage is 0.05V typ and 0.1V max when VINV is 1.5V;(6):FB source current is 70uA min,120uA typ and 170u A max when VFB is 1.5V,VINV is 0.5V;(7):threshold voltage is 0.8V min,1.7V typ and 2.6V max.etc.
