BH2210FV, BH2219FVM-TR, BH2220FVM

Table of contents:
Info of BH2210FV
Info of BH2219FVM-TR
Info of BH2220FVM

BH2210FV, BH2219FVM-TR, BH2220FVM Selling Leads, Datasheet

MFG:Rohm Semiconductor Category:Integrated Circuits (ICs) Package Cooled:TSSOP D/C:04+

BH2210FV, BH2219FVM-TR, BH2220FVM Datasheet download

Five Points

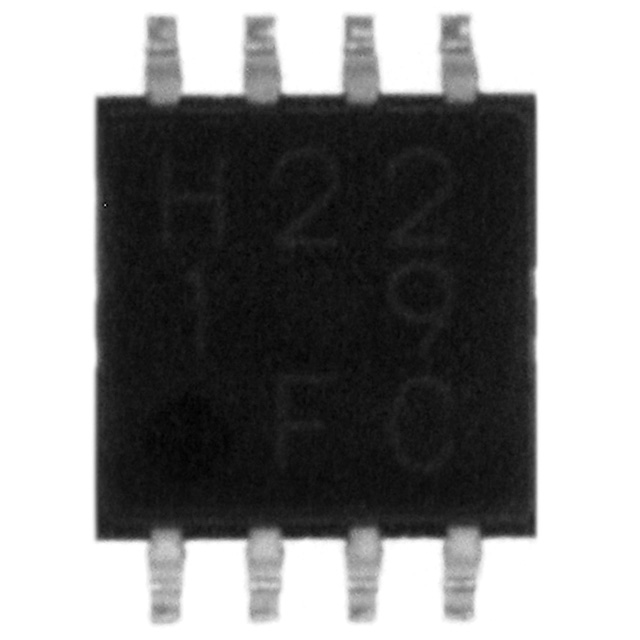

Part Number: BH2219FVM-TR

Category: Integrated Circuits (ICs)

MFG: Rohm Semiconductor

Package Cooled: TSSOP

D/C: 04+

Description: IC DAC 8BIT 2-CHAN MSOP8

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

BH2219FVM-TR Parameters

Technical/Catalog Information	BH2219FVM-TR
Vendor	Rohm Semiconductor
Category	Integrated Circuits (ICs)
Data Interface	Serial
Number of Bits	8
Operating Temperature	-20°C ~ 85°C
Package / Case	8-MSOP, Micro8?, 8-uMAX, 8-uSOP,
Packaging	Tape & Reel (TR)
Voltage Supply Source	Single
Settling Time	100s
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BH2219FVM TR BH2219FVMTR

BH2220FVM General Description

BH2220FVM is 8bit 3 channel D/A converter for electronic adjustment. The 3-channel DC output can be independently controlled by three-wire serial interface from micro-controller.
The D/A converter can generate without loss by Rail to Rail output within the setting voltage. This small MSOP8 package is suitable for portable appliances.

BH2220FVM Maximum Ratings

Parameter	Symbol	Limits	Unit

Power supply voltages	Vcc	−0.3~+7.0	V
Maximum output voltage	Vin	−0.3~VCC	V
Storage temperature	Tstg	55 ~ + 125	°C
Power dissipation	Pd	310∗	mW

BH2220FVM Features

1) 8bit 3-channel D/A converters adopting R-2R system.
2) 3-wire 10-bit serial interface.
3) POWER ON RESET circuit.
4) The full scale output voltage range : 2.7V~5.5V.
5) MSOP8 package.

BH2220FVM Typical Application

The voltage adjustment for DVC, DSC etc.
