MFG:Stanley Electric Co (VA) Category:Optoelectronics D/C:09+
BRPG1211C, BRPG1211C-TR, BRPY1201W Datasheet download
Category: Optoelectronics
MFG: Stanley Electric Co (VA)
Package Cooled:
D/C: 09+

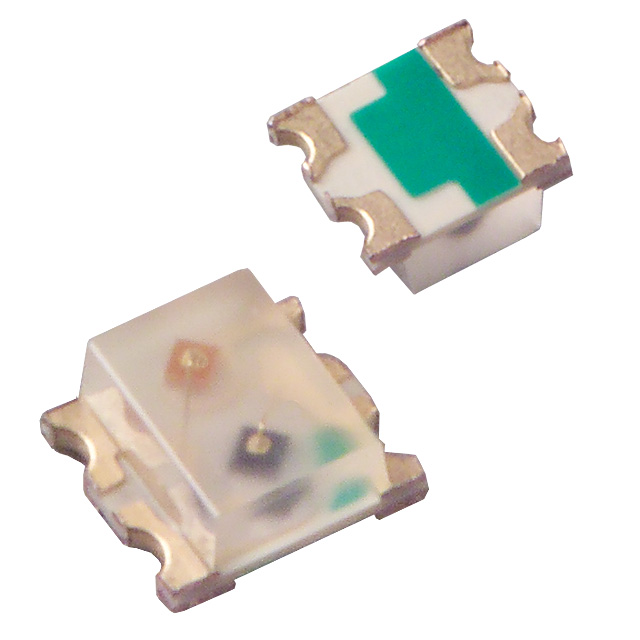

Description: LED RED/GREEN BI-COLOR SMD
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: BRPG1211C
File Size: 174080 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: BRPG1211C
File Size: 174080 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: BRPG1211C
File Size: 174080 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
Item |
Symbol |
Red (BR) |
Yellow-Green (PY) |
Red (BR) |
Green (PG) |
Red (BR) |
Pure Green (BG) |
Units |
BRPY |
BRPG |
BRBG |
||||||
| Power Dissipation | Pd |
70 |
70 |
70 |
mW |
|||
| Forward Current | IF |
25 |
25 |
25 |
mA |
|||
| Peak Forward Current | IFM |
60 |
60 |
60 |
mA |
|||
| Reverse Voltage | VR |
4 |
4 |
4 |
V |
|||
| Operating Temperature | Topr |
-30 to +85 |
°C |
|||||
| Storage Temperature | Tstg |
-40 to +100 |
°C |
|||||
| Derating* | IF |
0.36 (DC) 0.86 (Pulse) |
mA/°C |
|||||
| Technical/Catalog Information | BRPG1211C-TR |
| Vendor | Stanley Electric Co (VA) |
| Category | Optoelectronics |
| Color | Green, Red |
| Lens Style/Size | Rectangle, 1.5mm x 1.2mm |
| Millicandela Rating | 6.4mcd Green, 11.7mcd Red |
| Voltage - Forward (Vf) Typ | 2.1V Green, 1.7V Red |
| Wavelength - Dominant | 567nm, 647nm |
| Wavelength - Peak | 560nm, 660nm |
| Current - Test | 20mA |
| Viewing Angle | 168° Green, 150° Red |
| Lens Type | Diffused, White |
| Luminous Flux | 36 mlm Green, 54 mlm Red |
| Package / Case | 0606 (1616 metric) |
| Mounting Type | Surface Mount |
| Packaging | Digi-Reel? |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | BRPG1211C TR BRPG1211CTR 404 1086 6 ND 40410866ND 404-1086-6 |
