BU2090F, BU2090F-E2, BU2090FS

BU2090F, BU2090F-E2, BU2090FS Selling Leads, Datasheet

MFG:Rohm Semiconductor(VA)  Category:Integrated Circuits (ICs)  Package Cooled:SOP  D/C:9645

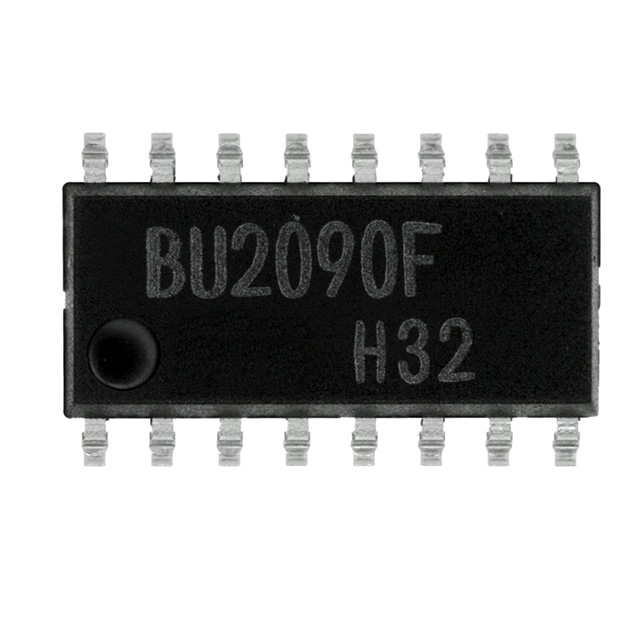

BU2090F-E2 Picture

BU2090F, BU2090F-E2, BU2090FS Datasheet download

Five Points

Part Number: BU2090F-E2

Category: Integrated Circuits (ICs)

MFG: Rohm Semiconductor(VA)

Package Cooled: SOP

D/C: 9645

Description: IC DRVR SER/PAR I/O 12BIT SOP16
