CMY17-4, CMY200, CMY210

Table of contents:
Info of CMY17-4
Info of CMY200
Info of CMY210

CMY17-4, CMY200, CMY210 Selling Leads, Datasheet

MFG:Triquint Semiconductor Inc (VA) Category:RF and RFID Package Cooled:05+ D/C:O9+

CMY17-4, CMY200, CMY210 Datasheet download

Five Points

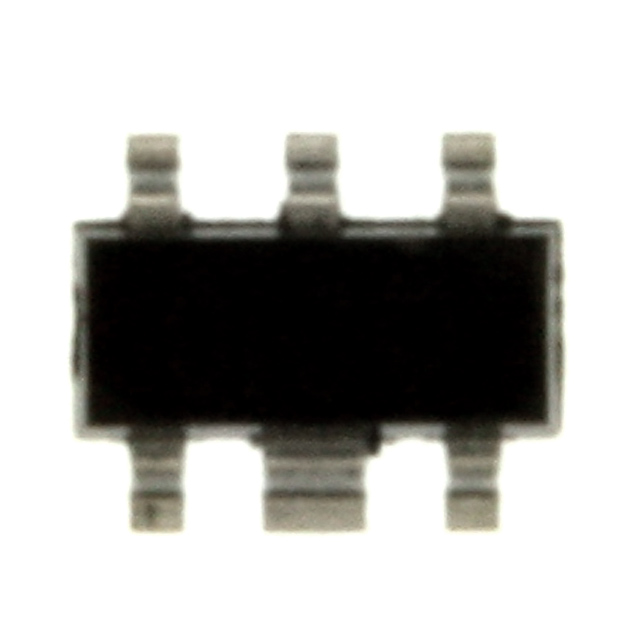

Part Number: CMY210

Category: RF and RFID

MFG: Triquint Semiconductor Inc (VA)

Package Cooled: 05+

D/C: O9+

Description: IC MIXER/RCVR MMIC W/LO BUFF MW6

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

CMY200 Maximum Ratings

Maximum Ratings	Symbol	Value		Unit
		min	max
Supply Voltage to LO-Amp	V_d,LO	0	6	V
Supply Voltage to IF-Amp	V_d,IF	0	6	V
DC-Voltage to RF-Port	V_RF	-6	+6	V
DC-Voltage to Input LO-Amp	V_in,LO	-3	0	V
RF Input Power	P_in,RF		10	dBm
LO Input Power	P_in,LO		10	dBm
Channel Temperature	T_Ch		150
Storage Temperature Thermal Resistance	T_stg	-55	150
Channel to Soldering Point (GND)	R_thChS	100		K/W

1) For detailed dimensions see chapter Package Outlines

CMY200 Features

·Ultralinear Downconverter 1200MHz to 40MHz
·Operating Voltage Range: 3 to 6V
·Very low Current Consumption, typ. 45mA
·Single ended Input and Output
·RF- and IF-Port Impedance close to 50 Ohm
·Very wide LO-Level Range
·All Gold Metallisation
·Chip fully passivated
·Very small Outlines

CMY210 Parameters

Technical/Catalog Information	CMY210
Vendor	Triquint Semiconductor Inc (VA)
Category	RF and RFID
RF Type	WLAN
Package / Case	MW-6
Frequency	500MHz ~ 2.5GHz
Packaging	Cut Tape (CT)
Drawing Number	*
Gain	-
Current - Supply	8mA
Noise Figure	6dB
Voltage - Supply	3 V ~ 6 V
Secondary Attributes	Up/Down Converter
Number of Mixers	1
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CMY210 CMY210 779 1008 1 ND 77910081ND 779-1008-1
