CT0402L14G(14V), CT0402M4G, CT0402S14AHSG

Table of contents:
Info of CT0402L14G(14V)
Info of CT0402M4G
Info of CT0402S14AHSG

CT0402L14G(14V), CT0402M4G, CT0402S14AHSG Selling Leads, Datasheet

MFG:EPCOS Inc Category:Circuit Protection Package Cooled:402 D/C:2008

CT0402L14G(14V), CT0402M4G, CT0402S14AHSG Datasheet download

Five Points

Part Number: CT0402M4G

Category: Circuit Protection

MFG: EPCOS Inc

Package Cooled: 402

D/C: 2008

Description: VARISTOR 14VRMS 0402 SMD

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

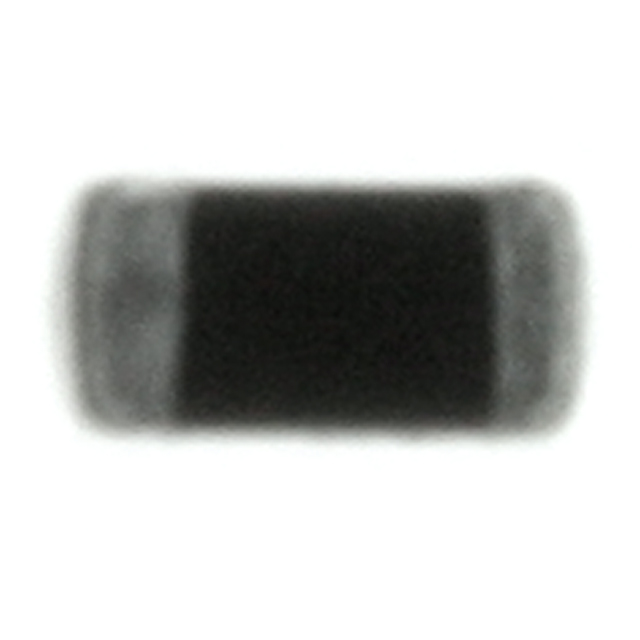

CT0402M4G Parameters

Technical/Catalog Information	CT0402M4G
Vendor	EPCOS Inc
Category	Circuit Protection
Maximum AC Volts	4Vrms
Maximum DC Volts	5.5VDC
Current-Surge	25A
Package / Case	0402 (1005 metric)
Varistor Voltage	12V
Energy	17J
Number of Circuits	1 - Single
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CT0402M4G CT0402M4G 495 3425 2 ND 49534252ND 495-3425-2

CT0402M4G General Description

CT = Chip with three-layer- termination (Ag/Ni/Sn)
0402 = Dimensions of the device 04 x 02 (length x width in 1/100 inch)
L = Tolerance of the varistor voltage (± 20%)
4 = Maximum operating voltage (RMS voltage)
G = Taped version (cardboard tape, 7" reel, 10000 pieces/reel)

CT0402M4G Maximum Ratings

RMS voltage DC voltage Varistor voltage (@ 1 mA) Clamping voltage (@ 1 A, typical) Maximum clamping voltage (@ 1 A) Maximum average power dissipation Maximum surge current (8/20 s) Maximum energy absorption (2 ms) Capacitance (@ 1 kHz, 1 V, 25 °C, typical) Response time Operating temperature Storage temperature (mounted parts) Termination material	VRMS = 4 V VDC = 5.5 V VV = 8 up to 12 V VC = 19 V VC = 24 V Pmax = 3 mW Imax = 1 x 25 A Emax = 1 x 17 mJ C = 200 pF < 0.5 ns 40 . +85 °C 40 . +125 °C Ag/Ni/Sn
(thickness not specified, adjusted to fulfil wettability specification according toIEC 60068-2-58)

CT0402S14AHSG Parameters

Technical/Catalog Information	CT0402S14AHSG
Vendor	EPCOS Inc
Category	Circuit Protection
Maximum AC Volts	14Vrms
Maximum DC Volts	16VDC
Current-Surge	2A
Package / Case	0402 (1005 metric)
Varistor Voltage	33V
Energy	30J
Number of Circuits	1 - Single
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CT0402S14AHSG CT0402S14AHSG 495 3426 2 ND 49534262ND 495-3426-2
