DLR14143, DLR2416, DLR3416

DLR14143, DLR2416, DLR3416 Selling Leads, Datasheet

MFG:OSRAM Opto Semiconductors Inc  Category:Optoelectronics  Package Cooled:307  D/C:07+

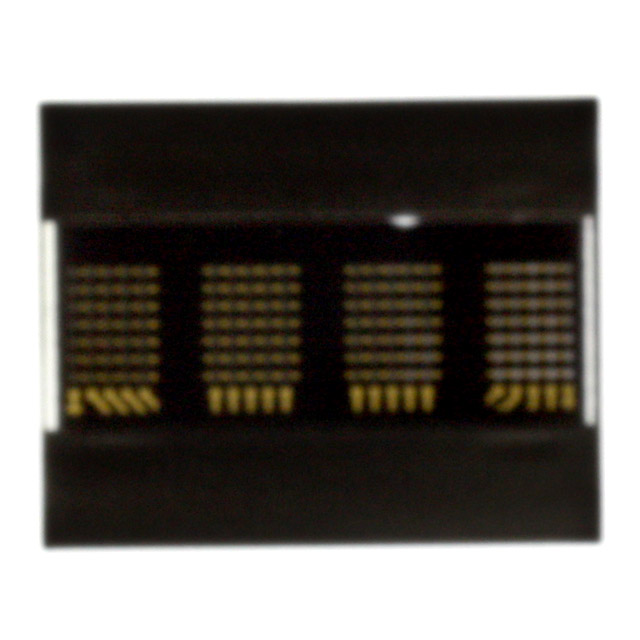

DLR2416 Picture

DLR14143, DLR2416, DLR3416 Datasheet download

Five Points

Part Number: DLR2416

Category: Optoelectronics

MFG: OSRAM Opto Semiconductors Inc

Package Cooled: 307

D/C: 07+

Description: INTELLIGENT DISP 4CHAR 5X7 RED






Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


Top Sellers:

TOP

DLR14143 Suppliers

More DLR14143 Suppliers

Select All

  • DLR1414

  • Vendor: siemens Pack: DIP D/C: 98+& Qty: 29 Note: stock,TEL:86-0755-61329226,MSN:havinzhou@hotmail.com  Adddate: 2024-03-28
  • Inquire Now
  • Enoki Electronics Technology   China
    Contact: Mr.HavinZhou   MSN:havinzhou@hotmail.com
    Tel: 86-0755-82529412
    Fax: 86-0755-82529412
    (1)
  • DLR3416

  • Vendor: siemens Pack: DIP D/C: 97+& Qty: 1 Note: stock,TEL:86-0755-61329226,MSN:havinzhou@hotmail.com  Adddate: 2024-03-28
  • Inquire Now
  • Enoki Electronics Technology   China
    Contact: Mr.HavinZhou   MSN:havinzhou@hotmail.com
    Tel: 86-0755-82529412
    Fax: 86-0755-82529412
    (1)

About DLR1040

PDF/DataSheet Download

Datasheet: DLR1040

File Size: 530603 KB

Manufacturer: ETC [ETC]

Download : Click here to Download

Related PDF Download

Related Part Number

DLR2416 Suppliers

More DLR2416 Suppliers

Select All

  • DLR1414

  • Vendor: siemens Pack: DIP D/C: 98+& Qty: 29 Note: stock,TEL:86-0755-61329226,MSN:havinzhou@hotmail.com  Adddate: 2024-03-28
  • Inquire Now
  • Enoki Electronics Technology   China
    Contact: Mr.HavinZhou   MSN:havinzhou@hotmail.com
    Tel: 86-0755-82529412
    Fax: 86-0755-82529412
    (1)
  • DLR3416

  • Vendor: siemens Pack: DIP D/C: 97+& Qty: 1 Note: stock,TEL:86-0755-61329226,MSN:havinzhou@hotmail.com  Adddate: 2024-03-28
  • Inquire Now
  • Enoki Electronics Technology   China
    Contact: Mr.HavinZhou   MSN:havinzhou@hotmail.com
    Tel: 86-0755-82529412
    Fax: 86-0755-82529412
    (1)

About DLR2416

PDF/DataSheet Download

Datasheet: DLR2416

File Size: 219145 KB

Manufacturer: SIEMENS [Siemens Semiconductor Group]

Download : Click here to Download

Related PDF Download

Related Part Number

DLR3416 Suppliers

More DLR3416 Suppliers

Select All

  • DLR3416

  • Vendor: siemens Pack: DIP D/C: 97+& Qty: 1 Note: stock,TEL:86-0755-61329226,MSN:havinzhou@hotmail.com  Adddate: 2024-03-28
  • Inquire Now
  • Enoki Electronics Technology   China
    Contact: Mr.HavinZhou   MSN:havinzhou@hotmail.com
    Tel: 86-0755-82529412
    Fax: 86-0755-82529412
    (1)
  • DLR1414

  • Vendor: siemens Pack: DIP D/C: 98+& Qty: 29 Note: stock,TEL:86-0755-61329226,MSN:havinzhou@hotmail.com  Adddate: 2024-03-28
  • Inquire Now
  • Enoki Electronics Technology   China
    Contact: Mr.HavinZhou   MSN:havinzhou@hotmail.com
    Tel: 86-0755-82529412
    Fax: 86-0755-82529412
    (1)
  • DLR3416

  • Vendor: siemens Pack: DIP D/C: 97+& Qty: 1 Note: stock,TEL:86-0755-61329226,MSN:havinzhou@hotmail.com  Adddate: 2024-03-28
  • Inquire Now
  • Enoki Electronics Technology   China
    Contact: Mr.HavinZhou   MSN:havinzhou@hotmail.com
    Tel: 86-0755-82529412
    Fax: 86-0755-82529412
    (1)

About DLR3416

PDF/DataSheet Download

Datasheet: DLR3416

File Size: 227552 KB

Manufacturer: SIEMENS [Siemens Semiconductor Group]

Download : Click here to Download

Related PDF Download

Related Part Number

DLR2416 Parameters

Technical/Catalog InformationDLR2416
VendorOSRAM Opto Semiconductors Inc
CategoryOptoelectronics
ColorRed
Size / Dimension1.00" L x 0.80" W x 0.26" H (25.40mm x 20.32mm x 6.60mm)
Millicandela Rating-
Configuration-
Voltage - Forward (Vf) Typ-
Internal Connection-
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names DLR2416
DLR2416
475 1362 ND
4751362ND
475-1362

DLR2416 General Description

The DLR/DLO/DLG2416 is a four digit 5x7 dot matrix display module with a built-in CMOS integrated circuit. This display is X/Y stackable.

The integrated circuit contains memory, ASCII ROM decoder, multi-plexing circuitry and drivers. Data entry is asynchronous and can be random. A display system can be built using any number of DLX2416s since each digit can be addressed independently and will continue to display the character last stored until replaced by another.

System interconnection is very straightforward. The least significant two address bits (A0, A1) are normally connected to the like-named inputs of all displays in the system. With two chip enables (CE1 and CE2) four displays (16 characters) can easily be interconnected with-out a decoder.

Data lines are connected to all DLX2416s directly and in parallel, as is the write line (WR). The display will thenbehave as a write-only mem-ory.

The cursor function causes all dots of a digit position to illuminate at half brightness. The cursor is not a character, and when removed the previously displayed character will reappear.

The DLX2416 has several features superior to competitive devices. True "blanking" allows the designer to dim the display for more flexibil-ity of display presentation. Finally the CLRclear function will clear the cursor RAM and the ASCII character RAM simultaneously.

The character set consists of 128 special ASCII characters for English, German, Italian, Swedish, Danish, and Norwegian.

All products are subjected to out-going AQL's of 0.25% for brightness matching, visual alignment and dimensions, 0.065% for electrical and functional.

DLR2416 Maximum Ratings

DC Supply Voltage ........................................0.5 V to +7.0 Vdc
Input Voltage, Respect to GND
   (all inputs) ..........................................0.5 V to VCC +0.5 Vdc
Operating Temperature .....................................40 C to +85 C
Storage Temperature....................................... 40 C to +100 C
Relative Humidity at 85 C......................................................85%
Maximum Solder Temperature, 0.063" (1.59 mm)
below Seating Plane, t<5 sec............................................260  C

DLR2416 Features

Dot Matrix Replacement for DL2416T
0.200" 5 x 7 Dot Matrix Characters
128 Special ASCII Characters for English, German, Italian,  Swedish, Danish, and Norwegian Languages
Wide Viewing Angle:  X Axis 50  Maximum, Y Axis 75  Maximum
Close Multi-line Spacing, 0.8" Centers
Fast Access Time, 110 ns at 25 C
Full Size Display for Stationary Equipment
Built-in Memory
Built-in Character Generator
Built-in Multiplex and LED Drive Circuitry
Direct Access to Each Digit Independently
and Asynchronously
Independent Cursor Function
Memory Function: Clears Character and Cursor Memory Simultaneously
True Blanking for Intensity Dimming Applications
End-Stackable, 4-Character Package
Intensity Coded for Display Uniformity
Extended Operating Temperature Range: 40 C to +85 C
Superior ESD Immunity
Wave Solderable
TTL Compatible over Operating Temperature Range
Interdigit Blanking

DLR3416 Parameters

Technical/Catalog InformationDLR3416
VendorOSRAM Opto Semiconductors Inc
CategoryOptoelectronics
ColorRed
Size / Dimension1.30" L x 0.79" W x 0.34" H (33.02mm x 20.07mm x 8.64mm)
Millicandela Rating-
Configuration-
Voltage - Forward (Vf) Typ-
Internal Connection-
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names DLR3416
DLR3416
475 1363 ND
4751363ND
475-1363

DLR3416 General Description

The DLR/DLO/DLG3416 is a four character 5x7 dot matrix display module with a built-in CMOS integrated circuit. This display is a "drop-in" replace-ment for the DL3416.

The integrated circuit contains memory, ASCII ROM decoder, multiplexing circuitry and drivers. Data entry is asynchronous and can be random. A dis-play system can be built using any number of DLX3416s since each charac-ter can be addressed independently and will continue to display the character last stored until replaced by another.

System interconnection is very straightforward. The least significant two address bits (A0, A1) are normally connected to the like-named inputs of all displays in the system. With four chip enables, four displays (16 characters) can easily be interconnected without a decoder.

Data lines are connected to all DLX3416s directly and in parallel, as is the write line (WR). The display will then behave as a write-only memory.

The cursor function causes all dots of a character position to illuminate at half brightness. The cursor is not a character, and when removed the previ-ously displayed character will reappear.

The DLX3416 has several features superior to competitive devices. True "blanking" allows the designer to dim the display for more flexibility of dis-play presentation. Finally the CLR clear function will clear the cursor RAM and the ASCII character RAM simultaneously.

The character set consists of 128 special ASCII characters for English, Ger-man, Italian, Swedish, Danish, and Norwegian.

All products are subjected to out-going AQL's of 0.25% for brightness match-ing, visual alignment and dimensions, 0.065% for electrical and functional.

DLR3416 Maximum Ratings

DC Supply Voltage....................0.5 V to +7.0 Vdc
Input Voltage, Respect to GND
  (all inputs).......................0.5 V to VCC +0.5 Vdc
Operating Temperature.................. -40 C to +85 C
Storage Temperature-....................40 C to +100 C
Relative Humidity at 85 C
(non-condensing).............................................85%
Maximum Solder Temperature,
0.063" (1.59 mm) below
Seating Plane, t<5 sec .................................260  C

DLR3416 Features

Dot Matrix Replacement for DL3416
0.270" 5x7 Dot Matrix Characters
128 Special ASCII Characters for English, German, Italian, Swedish, Danish, and Norwe-gian Languages
Wide Viewing Angle:  X Axis 50  Maximum,  Y Axis 75  Maximum
Close Vertical Row Spacing, 0.800" Centers
Fast Access Time, 110 ns at 25 C
Full Size Display for Stationary Equipment
Built-in Memory
Built-in Character Generator
Built-in Multiplex and LED Drive Circuitry
Each Character Independently Accessed
TTL Compatible, 5 Volt Power, VIH=2.0 V, VIL =0.8 V
Independent Cursor Function
Memory Clear Function
Display Blank Function for Blinking and Dim-ming
End-Stackable, 4-character Package
Intensity Coded for Display Uniformity
Extended Operating Temperature Range: 40 C to +85 C
Wave Solderable
