EE-SH3M, EE-SJ3, EE-SJ3-D

EE-SH3M, EE-SJ3, EE-SJ3-D Selling Leads, Datasheet

MFG:Omron Electronics Inc-ECB Div  Category:Sensors, Transducers  Package Cooled:www.dayue-hk.com  D/C:08+ ROHS

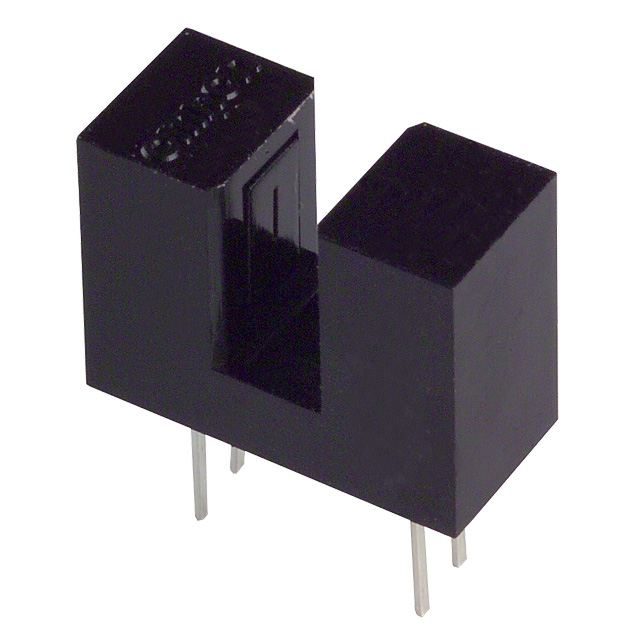

EE-SJ3-D Picture

EE-SH3M, EE-SJ3, EE-SJ3-D Datasheet download

Five Points

Part Number: EE-SJ3-D

Category: Sensors, Transducers

MFG: Omron Electronics Inc-ECB Div

Package Cooled: www.dayue-hk.com

D/C: 08+ ROHS

Description: SENSR OPTO SLOT 3.4MM TRANS THRU
