EEE-FC1C100AR, EEE-FC1C100R, EEE-FC1C101AP

Table of contents:
Info of EEE-FC1C100AR
Info of EEE-FC1C100R
Info of EEE-FC1C101AP

EEE-FC1C100AR, EEE-FC1C100R, EEE-FC1C101AP Selling Leads, Datasheet

MFG:Panasonic - ECG Category:Capacitors Package Cooled:06+ D/C:PANASONIC

EEE-FC1C100AR, EEE-FC1C100R, EEE-FC1C101AP Datasheet download

Five Points

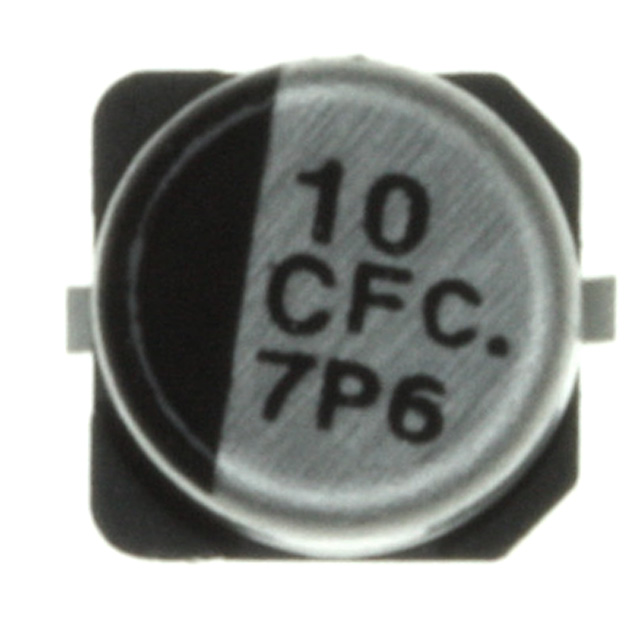

Part Number: EEE-FC1C100AR

Category: Capacitors

MFG: Panasonic - ECG

Package Cooled: 06+

D/C: PANASONIC

Description: CAP ELECT 100UF 16V FC SMD

Price Break

2000
6000
10000
26000

Unit Price

.07400
.06900
.06400
.06100

Extended Price

148.00
414.00
640.00
1586.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

EEE-FC1C100AR Parameters

Technical/Catalog Information	EEE-FC1C100AR
Vendor	Panasonic - ECG
Category	Capacitors
Capacitance	10F
ESR (Equivalent Series Resistance)	-
Features	General Purpose
Lifetime @ Temp.	1000 Hrs @ 105°C
Maximum Temperature	-40°C ~ 105°C
Size / Dimension	0.158" Dia x 0.213" H (4.00mm x 5.40mm)
Lead Spacing	-
Surface Mount Land Size	0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type	Surface Mount
Package / Case	Radial - Surface Mount
Packaging	Tape & Reel (TR)
Tolerance	±20%
Voltage Rating	16V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	EEE FC1C100AR EEEFC1C100AR PCE4343TR ND PCE4343TRND PCE4343TR

EEE-FC1C100R Parameters

Technical/Catalog Information	EEE-FC1C100R
Vendor	Panasonic - ECG (VA)
Category	Capacitors
Capacitance	10F
ESR (Equivalent Series Resistance)	-
Features	General Purpose
Lifetime @ Temp.	1000 Hrs @ 105°C
Maximum Temperature	-40°C ~ 105°C
Size / Dimension	0.158" Dia x 0.213" H (4.00mm x 5.40mm)
Lead Spacing	-
Surface Mount Land Size	0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting Type	Surface Mount
Package / Case	Radial - Surface Mount
Packaging	Digi-Reel?
Tolerance	±20%
Voltage Rating	16V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	EEE FC1C100R EEEFC1C100R PCE3995DKR ND PCE3995DKRND PCE3995DKR

EEE-FC1C101AP Parameters

Technical/Catalog Information	EEE-FC1C101AP
Vendor	Panasonic - ECG
Category	Capacitors
Capacitance	100F
ESR (Equivalent Series Resistance)	-
Features	General Purpose
Lifetime @ Temp.	1000 Hrs @ 105°C
Maximum Temperature	-40°C ~ 105°C
Size / Dimension	0.315" Dia x 0.244" H (8.00mm x 6.20mm)
Lead Spacing	-
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial - Surface Mount
Packaging	Tape & Reel (TR)
Tolerance	±20%
Voltage Rating	16V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	EEE FC1C101AP EEEFC1C101AP PCE4347TR ND PCE4347TRND PCE4347TR
