EL7156CSZ-T7, EL7158IS, EL7182

Table of contents:
Info of EL7156CSZ-T7
Info of EL7158IS
Info of EL7182

EL7156CSZ-T7, EL7158IS, EL7182 Selling Leads, Datasheet

MFG:Intersil Category:Integrated Circuits (ICs) Package Cooled:_____________ D/C:07+

EL7156CSZ-T7, EL7158IS, EL7182 Datasheet download

Five Points

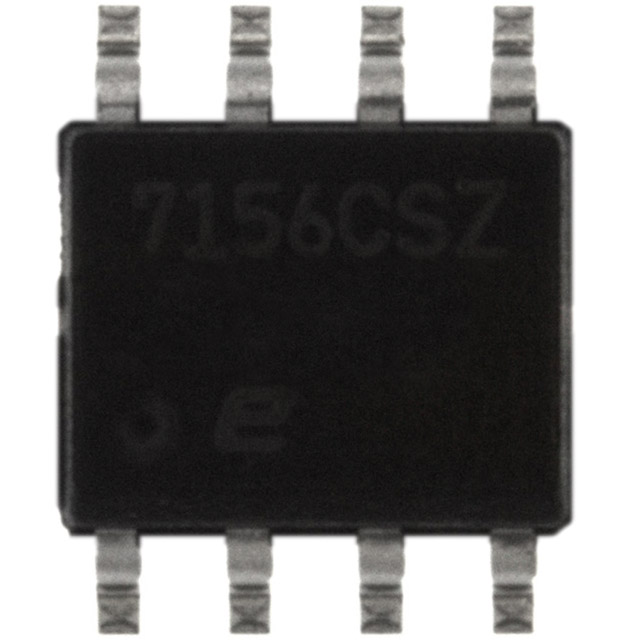

Part Number: EL7156CSZ-T7

Category: Integrated Circuits (ICs)

MFG: Intersil

Package Cooled: _____________

D/C: 07+

Description: IC DVR PIN 40MHZ 3STATE 8-SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

EL7156CSZ-T7 Parameters

Technical/Catalog Information	EL7156CSZ-T7
Vendor	Intersil (VA)
Category	Integrated Circuits (ICs)
Package / Case	8-SOIC
Mounting Type	Surface Mount
Type	High Side
Voltage - Supply	4.5 V ~ 16.5 V
On-State Resistance	2.7 Ohm
Current - Output / Channel	200mA
Current - Peak Output	3.5A
Packaging	Cut Tape (CT)
Input Type	Non-Inverting
Number of Outputs	1
Operating Temperature	-40°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	EL7156CSZ T7 EL7156CSZT7 EL7156CSZ T7CT ND EL7156CSZT7CTND EL7156CSZ-T7CT

EL7156CSZ-T7 General Description

2-Phase, High Speed CCD Driver

EL7156CSZ-T7 Features

3V and 5V input compatible
Clocking speeds up to 10MHz
Reduced clock skew
20ns switching/delay time
2A peak drive
Low quiescent current
Wide operating voltage - 4.5V-16V

EL7156CSZ-T7 Typical Application

Simple CMOS Driver Circuits Generate Bipolar Outputs

Applying Power MOSFET Drivers

EL7182 Datasheet

EL7158IS Parameters

Technical/Catalog Information	EL7158IS
Vendor	Intersil
Category	Integrated Circuits (ICs)
Package / Case	8-SOIC (3.9mm Width)
Mounting Type	Surface Mount
Type	High Side
Voltage - Supply	4.5 V ~ 12 V
On-State Resistance	500 mOhm
Current - Output / Channel	500mA
Current - Peak Output	12A
Packaging	Tube
Input Type	Non-Inverting
Number of Outputs	1
Operating Temperature	-40°C ~ 85°C
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	EL7158IS EL7158IS

EL7182 Parameters

EL7182 Features

3V and 5V input compatible
Clocking speeds up to 10MHz
Reduced clock skew
20ns switching/delay time
2A peak drive
Low quiescent current
Wide operating voltage - 4.5V-16V

EL7182 General Description

2-Phase, High Speed CCD Driver

EL7182 Maximum Ratings

Supply (V+ to Gnd) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16.5V
Input Pins . . . . . . . . . . . . . . . . . . . . . . . .- 0.3V to +0.3V above V+
Combined Peak Output Current. . . . . . . . . . . . .. . . . . . . . . . . . .4A
Storage Temperature Range . . . . . . . . . . . . . . -65°C to +150°C
Ambient Operating Temperature . . . . . . . . . . . . .-40°C to +85°C
Operating Junction Temperature . . . . . . . . . . . . . . . . . . . . .125°C
Power Dissipation
NSOIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .570mW
PDIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1050mW

CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.

EL7182 Features

3V and 5V input compatible
Clocking speeds up to 10MHz
Reduced clock skew
20ns switching/delay time
2A peak drive
Low quiescent current
Wide operating voltage - 4.5V-16V

EL7182 Typical Application

Simple CMOS Driver Circuits Generate Bipolar Outputs

Applying Power MOSFET Drivers

EL7182 Datasheet
