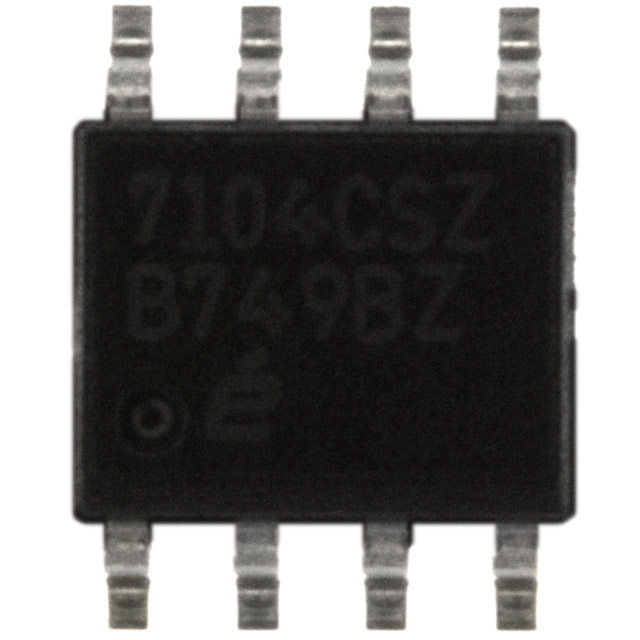

EL7114C Product Image

EL7 Series Datasheet download

Five Points

Part Number: EL7114C









Description: The EL7104C and EL7114C ICs are matched driver ICs that improve the operation of the industry-standard TC-...


Urgent Purchase

EL7114C General Description


   The EL7104C and EL7114C ICs are matched driver ICs that improve the operation of the industry-standard TC-4420/29 clock drivers. The Elantec versions are very high speed drivers capable of delivering peak currents of 1A into highly capacitive loads. The high speed performance is achieved by means of a proprietary "Turbo-Driver" circuit that speeds up input stages by tapping the wider voltage swing at the output. Improved speed and drive capability are enhanced by matched rise and fall delay times. These matched delays maintain the integrity of input-to-output pulse-widths to reduce timing errors and clock skew problems. This improved performance is accompanied by a 10-fold reduction in supply currents over bipolar drivers, yet without the delay time problems commonly associated with CMOS drivers.

EL7114C Maximum Ratings

Supply (V+ to GND)                                                                    16.5V
Input Pins                                                     -0.3V to +0.3V above V+
Peak Output Current                                                                      4A
Storage Temperature Range                                   -65°C to +150°C
Ambient Operating Temperature                               -40°C to +85°C
Operating Junction Temperature                                           +125°C
Power Dissipation:
SO                                                                                         570mW
PDIP                                                                                    1050mW

EL7114C Features

• Industry-standard driver replacement
• Improved response times
• Matched rise and fall times
• Reduced clock skew
• Low output impedance
• Low input capacitance
• High noise immunity
• Improved clocking rate
• Low supply current
• Wide operating range
• Separate drain connections

EL7114C Typical Application

• Clock/line drivers
• CCD drivers
• Ultrasound transducer drivers
• Power MOSFET drivers
• Switch mode power supplies
• Resonant charging
• Cascoded drivers

EL7114C Connection Diagram

EL7114C Connection Diagram
