EL7232CSZ249, EL7232CSZ-T7, EL7240

Table of contents:
Info of EL7232CSZ249
Info of EL7232CSZ-T7
Info of EL7240

EL7232CSZ249, EL7232CSZ-T7, EL7240 Selling Leads, Datasheet

MFG:Intersil (VA) Category:Integrated Circuits (ICs) Package Cooled:N A D/C:07+PB

EL7232CSZ249, EL7232CSZ-T7, EL7240 Datasheet download

Five Points

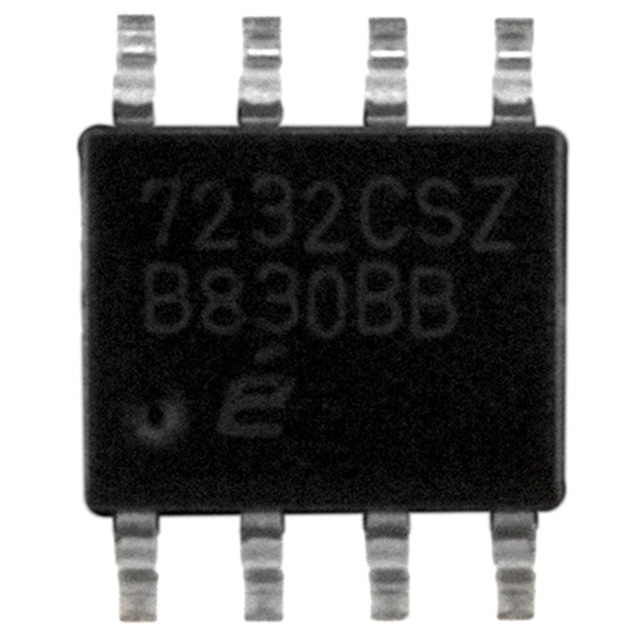

Part Number: EL7232CSZ-T7

Category: Integrated Circuits (ICs)

MFG: Intersil (VA)

Package Cooled: N A

D/C: 07+PB

Description: IC LINE DRIVER DUAL 3ST 8-SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

EL7232CSZ-T7 Parameters

Technical/Catalog Information	EL7232CSZ-T7
Vendor	Intersil (VA)
Category	Integrated Circuits (ICs)
Number of Drivers/Receivers	2/0
Type	Line Driver, Transmitter
Voltage - Supply	4.5 V ~ 16 V
Package / Case	8-SOIC (3.9mm Width)
Packaging	Digi-Reel?
Protocol	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	EL7232CSZ T7 EL7232CSZT7 EL7232CSZ T7DKR ND EL7232CSZT7DKRND EL7232CSZ-T7DKR

EL7240 Maximum Ratings

Supply (V+ to GND) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .      16.5V
Input Pins . . . . . . . . . . . . . . . . . . . . . . . . . .     -0.3V to +0.3V above V+
Combined Peak Output Current. . . . . . . . . . . . . . . . . . . . . . . . . . .     4A
Storage Temperature Range . . . . . . . . . . . . . . . . . . -65°C to +150°C
Ambient Operating Temperature . . . . . . . . . . . . . . . . -40°C to +85°C
Operating Junction Temperature . . . . . . . . . . . . . . . . . . . . . . .   125°C
Power Dissipation
SOIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .                570mW
PDIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .                 1050mW

CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.

EL7240 Features

• 20ns Propagation delay
• Clock to 10MHz
• 2 Amp peak output drive
• 3 output impedance
• 3V/5V Logic input compatible
• Outputs "OK" below ground
• Operating voltage 4.5V to 16V

EL7240 Typical Application

• Tape drive-write head driver
• Current switching
• Center-Tapped transformer driver
• ATE-pin drivers
• Analog switching
• AC switching
• T - switch
