EL7242CSZ, EL7243, EL7243CMZ

Table of contents:
Info of EL7242CSZ
Info of EL7243
Info of EL7243CMZ

EL7242CSZ, EL7243, EL7243CMZ Selling Leads, Datasheet

MFG:Intersil Category:Integrated Circuits (ICs) Package Cooled:SOP8 D/C:D/C

EL7242CSZ, EL7243, EL7243CMZ Datasheet download

Five Points

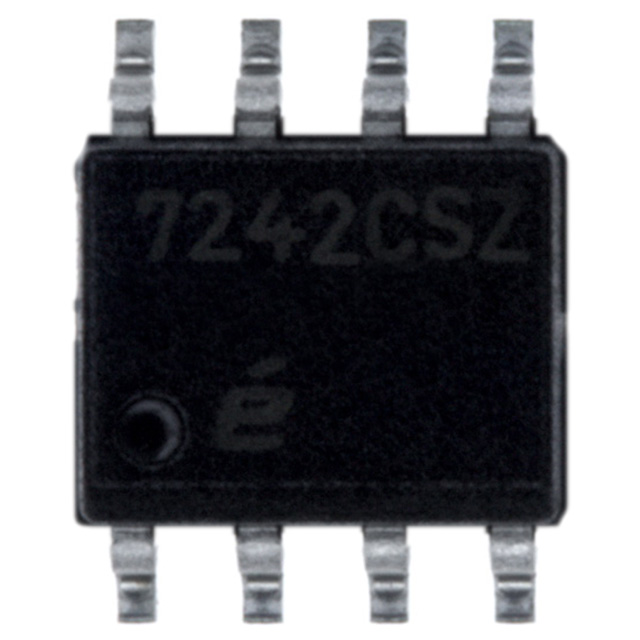

Part Number: EL7242CSZ

Category: Integrated Circuits (ICs)

MFG: Intersil

Package Cooled: SOP8

D/C: D/C

Description: IC CCD DRIVER DUAL HS 20-SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

EL7242CSZ Parameters

Technical/Catalog Information	EL7242CSZ
Vendor	Intersil
Category	Integrated Circuits (ICs)
Configuration	High and Low Side, Synchronous
Voltage - Supply	4.5 V ~ 16 V
Current - Peak	2A
Delay Time	20ns
Package / Case	8-SOIC (3.9mm Width)
Packaging	Tube
Number of Outputs	2
Input Type	Differential
Number of Configurations	1
Operating Temperature	-40°C ~ 85°C
High Side Voltage - Max (Bootstrap)	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	EL7242CSZ EL7242CSZ

EL7243 Maximum Ratings

Supply (V+ to Gnd) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .        16.5V
Input Pins . . . . . . . . . . . . . . . . . . . . . . . . . .      -0.3V to +0.3V above V+
Combined Peak Output Current. . . . . . . . . . . . . . . . . . . . . . . . . . .     4A
Storage Temperature Range . . . . . . . . . . . . . . . . .   .-65°C to +150°C
Ambient Operating Temperature . . . . . . . . . . . . . . . . -40°C to +85°C
Operating Junction Temperature . . . . . . . . . . . . . . . . . . . . . . .    125°C
Power Dissipation
20-pin "Batwing" SOIC . . . . . . . . . . . . . . . . . . . . . . .             1500mW

CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.

EL7243 Features

• Logic AND/NAND input
• 3V and 5V Input compatible
• Clocking speeds up to 20MHz
• 20ns Switching/delay time
• 2A Peak drive
• Isolated drains
• Low output impedance
• Low quiescent current
• Wide operating voltage - 4.5V to 16V
• Pb-Free available (RoHS compliant)

EL7243 Typical Application

• CCD Drivers
• Short circuit protected switching
• Under-voltage shut-down circuits
• Switch-mode power supplies
• Motor controls
• Power MOSFET switching
• Switching capacitive loads
• Shoot-thru protection
• Latching drivers

EL7243CMZ Parameters

Technical/Catalog Information	EL7243CMZ
Vendor	Intersil
Category	Integrated Circuits (ICs)
Configuration	High and Low Side, Synchronous
Voltage - Supply	4.5 V ~ 16 V
Current - Peak	2A
Delay Time	20ns
Package / Case	20-SOIC (7.5mm Width)
Packaging	Tube
Number of Outputs	2
Input Type	Differential
Number of Configurations	1
Operating Temperature	-40°C ~ 85°C
High Side Voltage - Max (Bootstrap)	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	EL7243CMZ EL7243CMZ
