EMF5T2R, EMF5XV6T5, EMF6

EMF5T2R, EMF5XV6T5, EMF6 Selling Leads, Datasheet

MFG:ON Semiconductor  Category:Discrete Semiconductor Products  Package Cooled:EMT6  D/C:05+

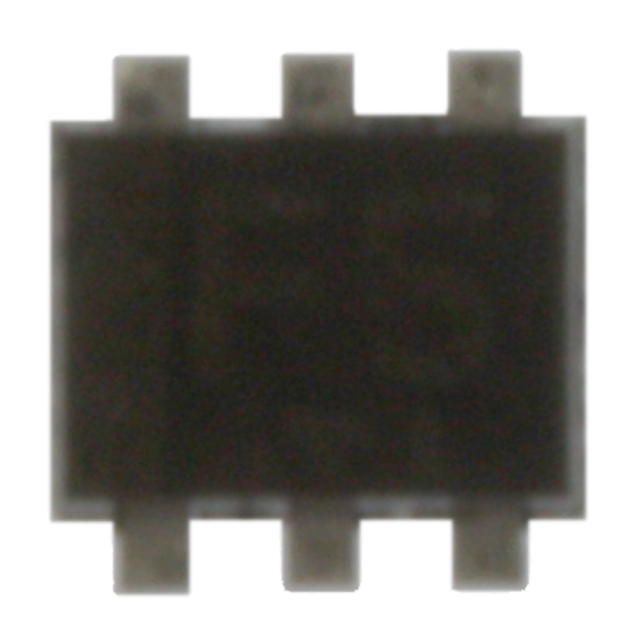

EMF5T2R Picture

EMF5T2R, EMF5XV6T5, EMF6 Datasheet download

Five Points

Part Number: EMF5T2R

Category: Discrete Semiconductor Products

MFG: ON Semiconductor

Package Cooled: EMT6

D/C: 05+

Description: TRANS BRT PNP PWR MNGMT SOT-563
