ES3A-NL, ES3A-TR, ES3B

Table of contents:
Info of ES3A-NL
Info of ES3A-TR
Info of ES3B

ES3A-NL, ES3A-TR, ES3B Selling Leads, Datasheet

MFG:Fairchild Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:FAIRCHILD D/C:2008

ES3A-NL, ES3A-TR, ES3B Datasheet download

Five Points

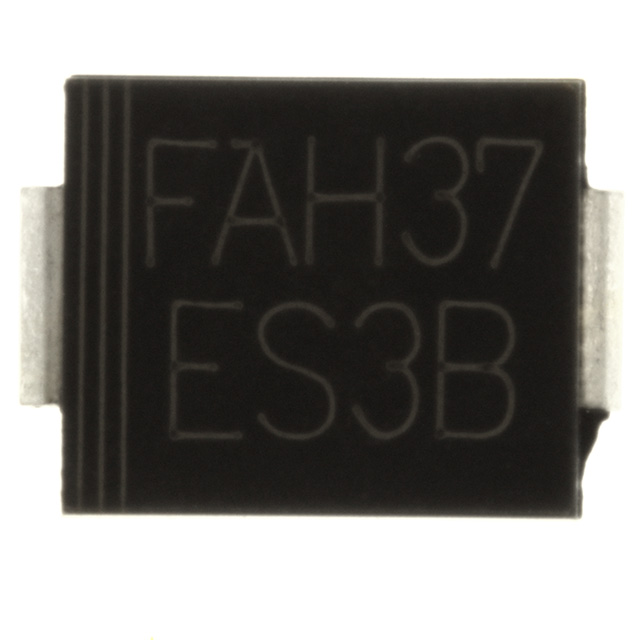

Part Number: ES3B

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor (VA)

Package Cooled: FAIRCHILD

D/C: 2008

Description: DIODE FAST 3A 100V SMC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

ES3B Parameters

Technical/Catalog Information	ES3B
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	950mV @ 3A
Reverse Recovery Time (trr)	20ns
Current - Reverse Leakage @ Vr	10A @ 100V
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Packaging	Digi-Reel?
Capacitance @ Vr, F	45pF @ 4V, 1MHz
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ES3B ES3B ES3BFSDKR ND ES3BFSDKRND ES3BFSDKR

ES3B General Description

ES3A thru ES3D datasheet

ES3B Maximum Ratings

Parameter	Test Conditions	Type	Symbol	Value	Unit
Repetitive peak reverse voltage g =Working peak reverse voltage =Blocking voltage		ES3A/B ES3B/B ES3C/B ES3D/B	V_RRM=V_RWM=V_R	50 100 150 200	V V V V
Peak forward surge current			I_FSM	100	A
Average forward current	T_A=100 °C		I_FAV	3.0	A
Junction and storage temperature range			T_j=T_stg	65...+150	°C

ES3B Features

`Glass passivated die construction
`Superfast recovery time for high efficiency
`Low forward voltage drop and high current capability
`Surge overload rating to 100A peak
`Ideally suited for automated assembly
`Plastic material UL Recognition flammability classification 94V0

ES3B Connection Diagram
