ES3CB-TR, ES3C-TR, ES3D

Table of contents:
Info of ES3CB-TR
Info of ES3C-TR
Info of ES3D

ES3CB-TR, ES3C-TR, ES3D Selling Leads, Datasheet

MFG:Fairchild Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:DO214AA D/C:09+/10+

ES3CB-TR, ES3C-TR, ES3D Datasheet download

Five Points

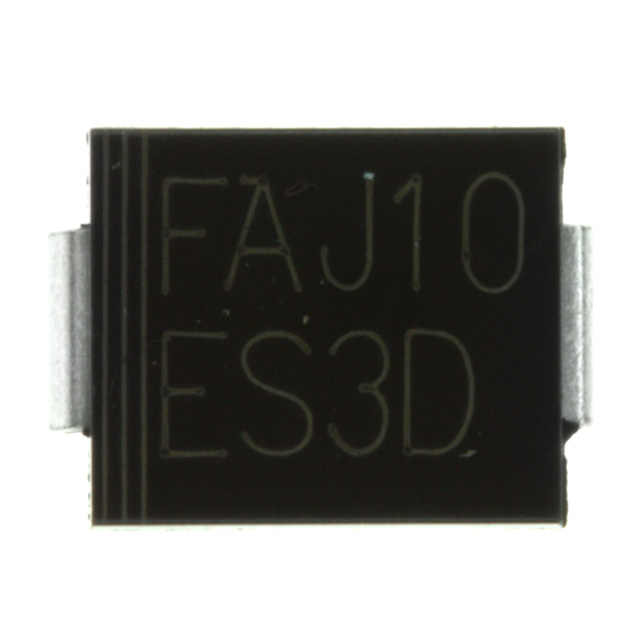

Part Number: ES3D

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor (VA)

Package Cooled: DO214AA

D/C: 09+/10+

Description: DIODE ULTRAFAST 200V 3A DO-214AB

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

ES3D Parameters

Technical/Catalog Information	ES3D
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	950mV @ 3A
Reverse Recovery Time (trr)	20ns
Current - Reverse Leakage @ Vr	10A @ 200V
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Packaging	Cut Tape (CT)
Capacitance @ Vr, F	45pF @ 4V, 1MHz
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ES3D ES3D ES3DFSCT ND ES3DFSCTND ES3DFSCT

ES3D General Description

ES3A thru ES3D datasheet

ES3D Maximum Ratings

Part Number	ES3D
Total Capacitance C_T (pF)	45
Max Av Rectified Current I_O (A)	3
Peak Repetitive Reverse Voltage V_RRM (V)	200
Reverse Recovery Time t_rr (ns)	25
Max Peak Forward Surge Current I_FSM (A)	100
Forward Voltage Drop V_F (V)	0.9
Max Reverse Current I_R (µA)	10

ES3D Features

Plastic package has Underwriters Laboratory Flammability Classification 94V-0
For surface mount applications
Low profile package
Built-in strain relief
Ideal for automated placement
Easy pick and place
Superfast recovery time for high efficiency
Glass passivated chip junction
High temperature soldering:250°C/10 seconds at terminals

ES3D Connection Diagram
